Hitoor

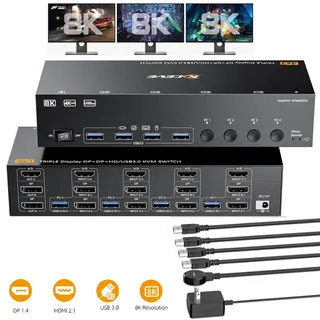

Hitoor HDMI+2 DisplayPort KVM Switch 3 Monitors 4 Computers 8K@60Hz 4K@144Hz
Lets four computers share three monitors and four USB 3.0 devices at up to 8K 60 Hz and 4K 144 Hz
- TypeHDMI+2 Displayport KVM Switch 3 Monitors 4 Computers
- PC ConnectorsHDMI 2.1, Displayport 1.4, USB 3.0
- Computer Connections4 Ports
- Monitor Connections3 Ports
- Video ResolutionTriple Monitor KVM Switch up to 8K 60Hz & 4K 144Hz.
- PC SelectionPush Buttons and Wired Remote
- Switch four computers across three monitors with one keyboard and mouse
- Drive-free operation with front-panel buttons or the included wired remote
- Triple-display output up to 8K at 60 Hz and 4K at 144 Hz
- Four USB 3.0 ports share peripherals at 5 Gbps
- Compact 21.2 x 7.8 x 4.5 cm unit with 12 V power adapter
Triple-Monitor KVM for Four PCs

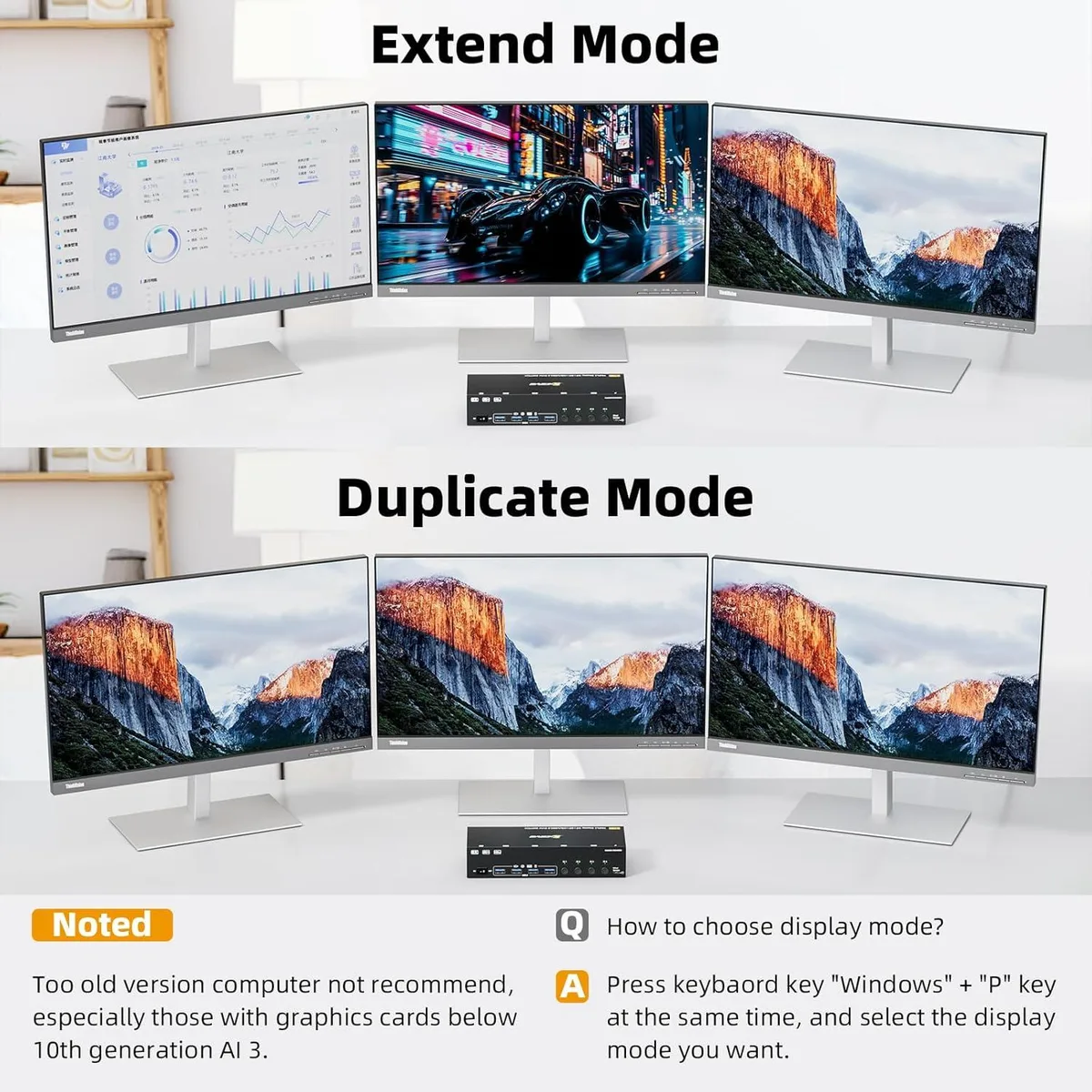

This Hitoor KVM switch lets four computers share three monitors and four USB 3.0 peripherals. Each computer connects through one HDMI 2.1 and two DisplayPort 1.4 inputs, while the outputs drive one HDMI and two DisplayPort monitors. The unit supports extended and duplicate display modes and includes a wired remote for switching.
Suited for Multi-System Workstations
The switch fits users who need simultaneous video and USB sharing across four systems with triple-display setups. It is not for buyers whose computers lack the required HDMI plus dual DisplayPort outputs, or for anyone needing single-monitor or dual-monitor switching only. Systems without USB 3.0 ports for the upstream connection will not enumerate keyboard and mouse correctly.
Driver-Free Setup With Cable Sensitivity

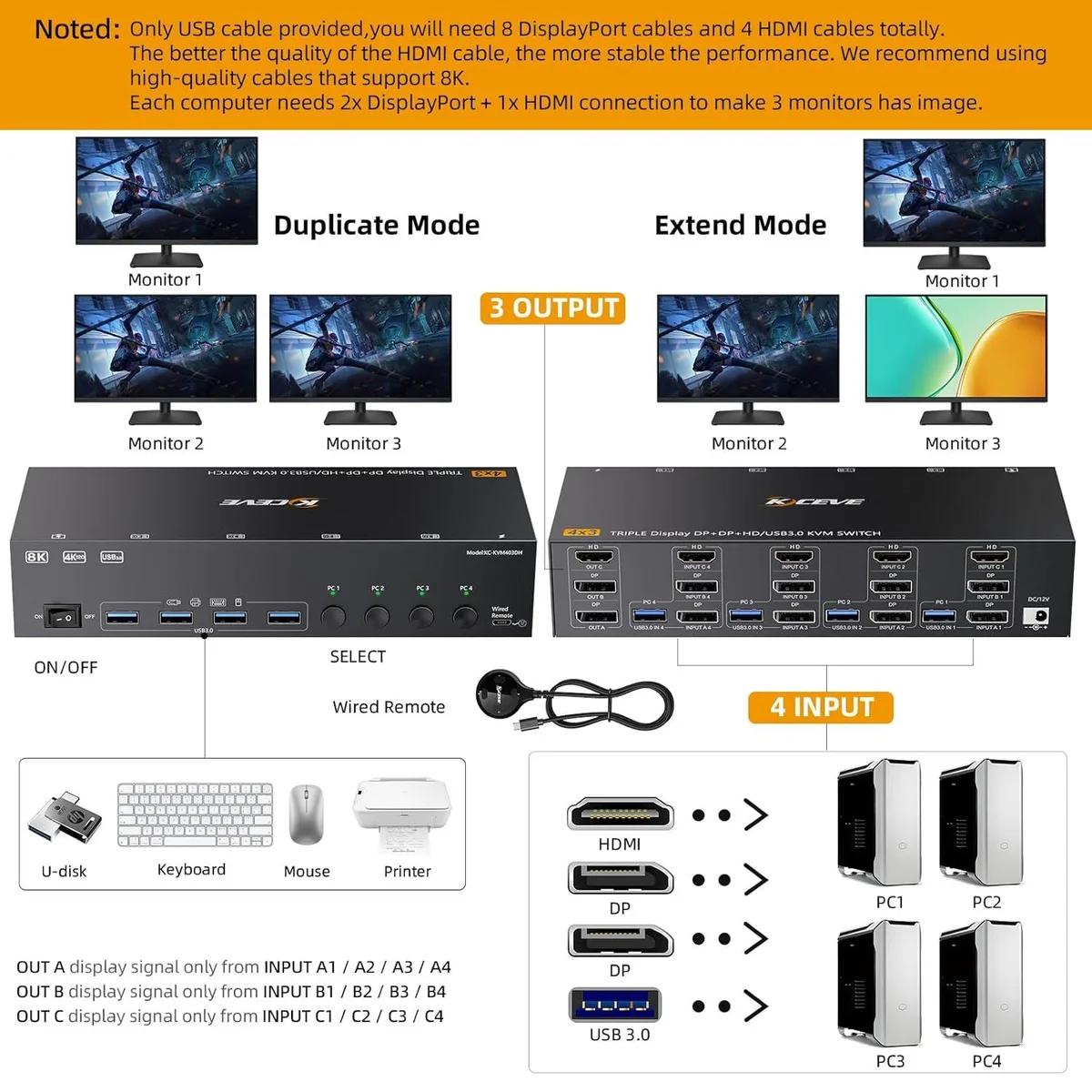

Installation is plug-and-play: connect each PC with one HDMI, two DisplayPort and one USB 3.0 cable, attach three monitors to the outputs, then add peripherals to the front USB 3.0 ports. Switching uses the front push buttons or the wired remote, with LED indicators showing the active port. Poor-quality HDMI or DisplayPort cables can cause flicker or signal instability, so certified high-bandwidth cables are essential.
Highlights
- Switch four computers across three monitors with one keyboard and mouse
- Drive-free operation with front-panel buttons or the included wired remote
- Triple-display output up to 8K at 60 Hz and 4K at 144 Hz
- Four USB 3.0 ports share peripherals at 5 Gbps
- Compact 21.2 x 7.8 x 4.5 cm unit with 12 V power adapter
Specifications
| Type | HDMI+2 Displayport KVM Switch 3 Monitors 4 Computers |
|---|---|
| PC Connectors | HDMI 2.1, Displayport 1.4, USB 3.0 |
| Computer Connections | 4 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | Triple Monitor KVM Switch up to 8K 60Hz & 4K 144Hz. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC12V Power Adapter |
| Application | HDMI+2 Displayport Triple monitor KVM switch with 4 USB 3.0 ports which can recognize keyboard,mouse,printer,scaner and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, faster transmission speeds. |
| Features | 4 Computers Share 3 Monitors and 4 USB 3.0 Devices, Plug and play, drive free |
| Dimensions | 21.2 x 7.8 x 4.5 cm |
| Weight | 250g |
| Package Contents | 1x Triple Monitor KVM Switch, 4x USB 3.0 Cable, 1x Power Adapter, 1x Wired remote, 1x User's manual. |
Questions about this item
What video outputs must each computer provide to drive three monitors through this KVM?
Every connected computer needs one HDMI 2.1 output and two DisplayPort 1.4 outputs.
Can I keep using an older graphics card that only has HDMI 2.0 and DisplayPort 1.2 ports?
The switch accepts those signals, but the maximum resolution drops to the limits of the older ports rather than the 8K60 or 4K144 capability.
How do I confirm the active PC after I press the front button or the wired remote?
The LED indicator for the selected port lights up, showing which of the four computers is currently driving the three monitors.
