Hitoor

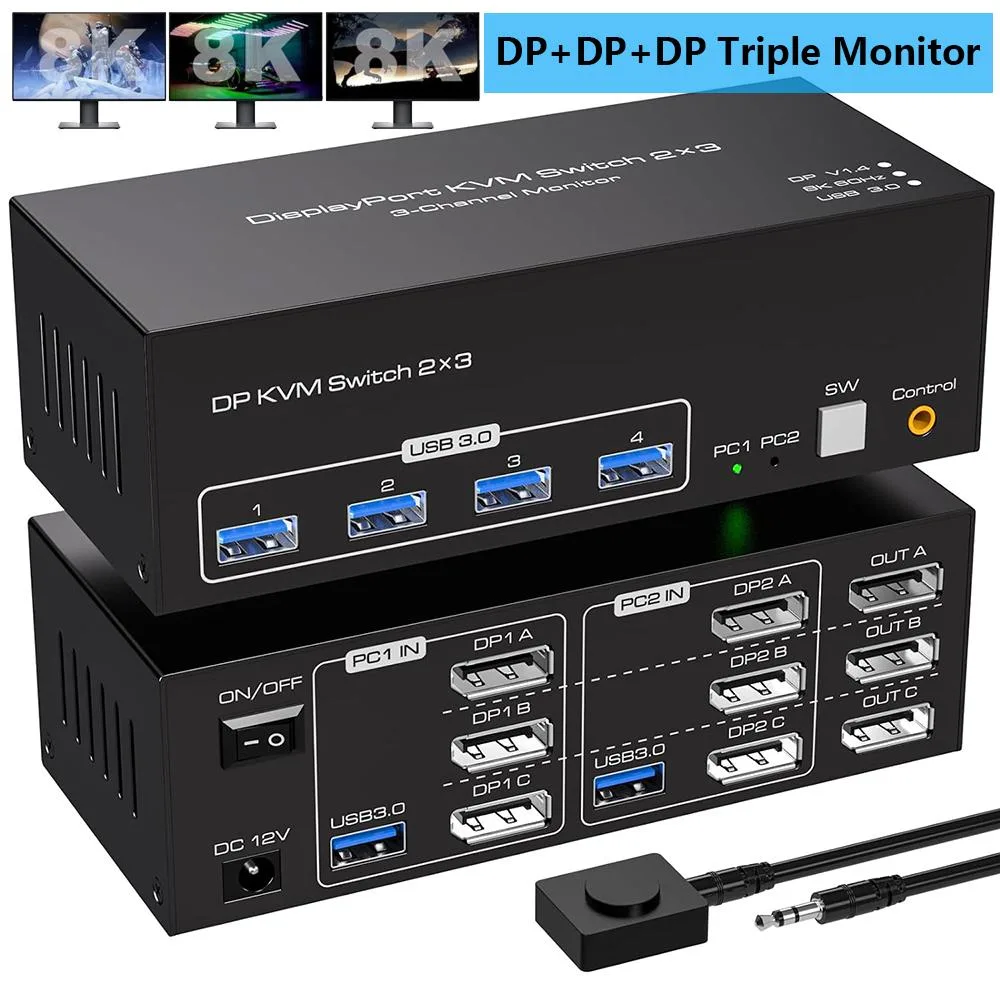

Hitoor 8K KVM Switch 3 Monitors 2 Computers
Lets two computers share three DisplayPort monitors and four USB 3.0 peripherals with 8K@60Hz support and push-button or wired remote switching
- TypeDisplayPort, USB
- PC ConnectorsDisplayport 1.4, USB 3.0
- Computer Connections2 Ports
- Monitor Connections3 Ports
- Video Resolutionup to 8K@60Hz.
- PC SelectionPush Buttons
- Share three monitors between two PCs with extended or copy display modes
- Supports up to 8K at 60 Hz and 4K at 120 Hz via DisplayPort 1.4
- Four USB 3.0 ports deliver 5 Gbps data transfer for peripherals
- Switch instantly using the wired remote button or front-panel SW button
- Bus-powered design needs no extra power supply, keeping the desk tidy
Triple-monitor KVM for two PCs

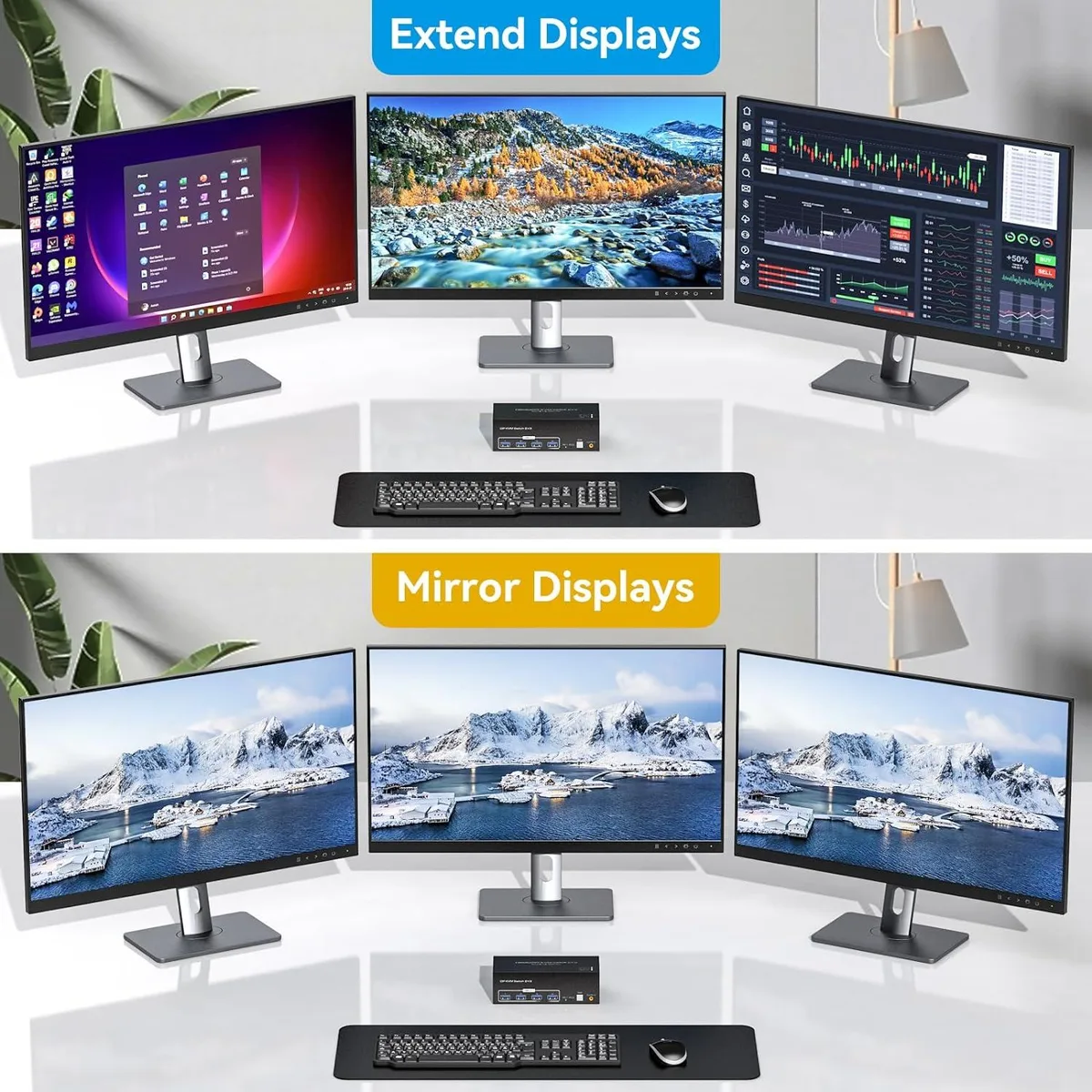

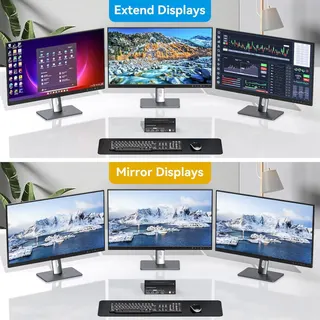

This Hitoor switch lets two computers share three DisplayPort monitors and four USB 3.0 peripherals. It supports extended mode for three independent images and copy mode for three identical images. Each connected PC must provide three DisplayPort outputs and support multi-display operation. The unit is new and requires no extra power supply beyond the included adapter.
Push-button or wired remote switching

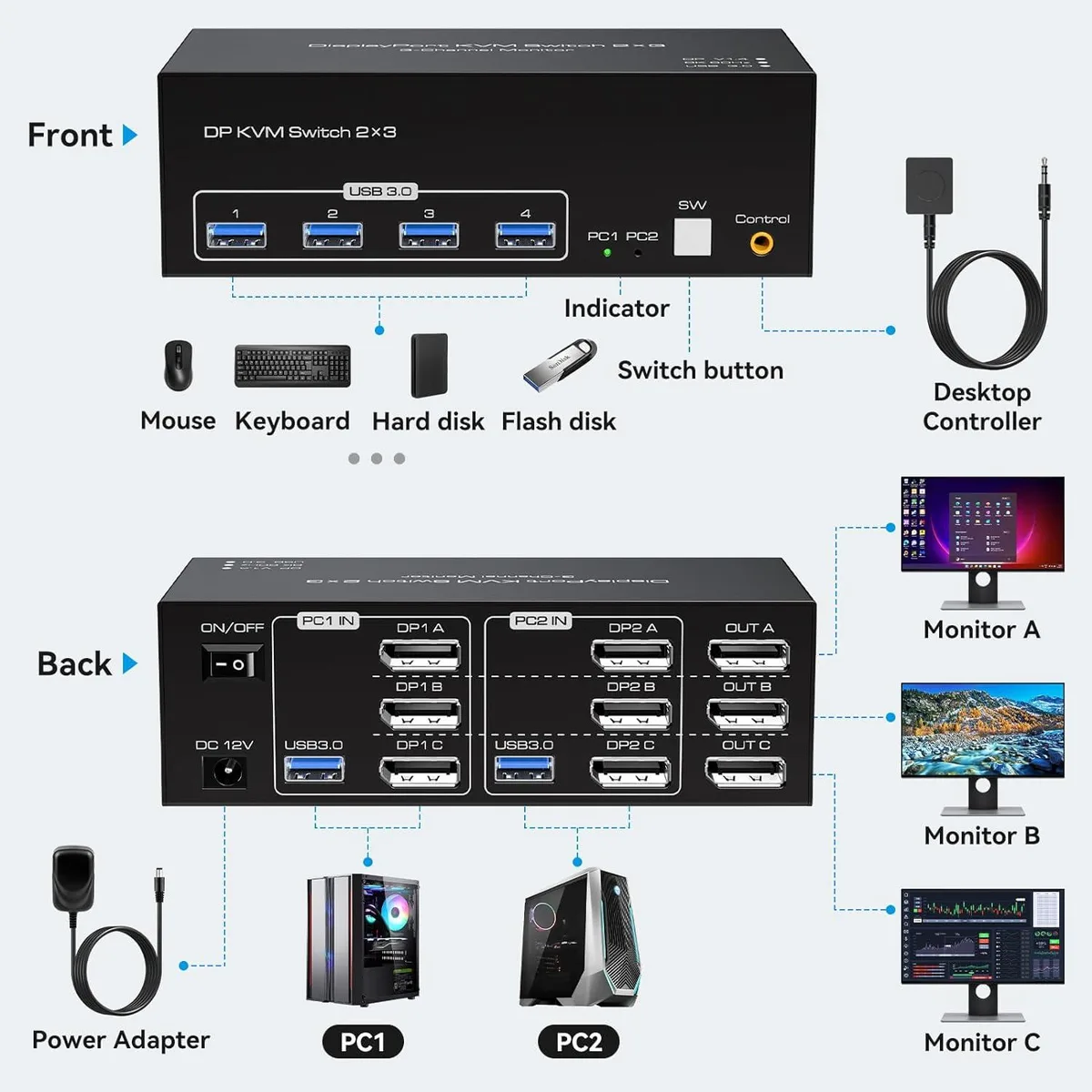

Switching between the two computers is done either by the front-panel SW button or by the supplied wired controller that can sit away from the main unit. LED indicators show the active port. Installation is straightforward: connect the two USB 3.0 cables and three DisplayPort 1.4 cables per computer, then attach monitors and peripherals. The only common issue is forgetting that every PC needs three DP ports and multi-display support for extended mode to work.
8K60 and 4K120 headroom
The switch passes up to 8K at 60 Hz and 4K at 120 Hz, with backward compatibility down to 1080p and 720p. USB 3.0 ports run at 5 Gbps and are backward compatible with USB 2.0 and 1.1 devices. Four USB peripherals can be shared simultaneously. The limit is three monitors total; buyers who need more than three displays or who lack three DP ports on each computer cannot use the extended mode.
Highlights
- Share three monitors between two PCs with extended or copy display modes
- Supports up to 8K at 60 Hz and 4K at 120 Hz via DisplayPort 1.4
- Four USB 3.0 ports deliver 5 Gbps data transfer for peripherals
- Switch instantly using the wired remote button or front-panel SW button
- Bus-powered design needs no extra power supply, keeping the desk tidy
Specifications
| Type | DisplayPort, USB |
|---|---|
| PC Connectors | Displayport 1.4, USB 3.0 |
| Computer Connections | 2 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | up to 8K@60Hz. |
| PC Selection | Push Buttons |
| Monitors Supported | 3 Displayport Monitors |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | This KVM Switch 3 Monitors allow two computers to share triple high-definition monitors and 4 USB 3.0 ports, such as mouse, keyboard, printer U disk, etc. And connect three displays in extend or duplicate display mode. Extended Mode: PC host in output 3 different images on 3 monitors. Copy Mode: Computer host outputs 3 identical images on 3 monitors. (Note: Please make sure your computer supports multi-display and each connected computer requires 3 DP ports) |
| Features | Ultra HD 8K Visuals; with 4 USB 3.0 ports; Two Switching Options; Widely Compatible. |
| Dimensions | 5.9 x 2.55 x 1.9 inches |
| Weight | 1.37 Pounds |
| Package Contents | 1 x Triple Monitor DP KVM Switch, 2 x USB 3.0 Cable, 1 x Power Adapter, 1 x Wired Controller, 1 x User manual |
Questions about this item
How can I confirm the Hitoor KVM is switching correctly after connecting two PCs and three DisplayPort monitors?
The front-panel LED indicators show which computer is active; press the wired controller or the SW button and verify all three monitors change to the selected PC's extended or copy mode image.
What cables and accessories are included, and what must I provide separately?
The box contains the KVM unit, two USB 3.0 cables, a power adapter, a wired remote button, and a manual; you must supply six DisplayPort 1.4 cables (three per PC) for the video links.
Should I choose the 8K@60Hz or 4K@120Hz capability for my setup?
The switch handles both — use 8K@60Hz for maximum resolution on compatible monitors, or 4K@120Hz when higher refresh rate is preferred; it also supports 4K@60Hz, 1080P and 720P.
