Hitoor 8K@60Hz KVM Switch 3 Monitors 4 Computers HDMI 2 DisplayPort Wired Remote
A KVM switch that lets four computers share three monitors and four USB 3.0 ports with push-button or wired-remote switching
- TypeHDMI + 2 Displayport KVM Switch 4 PCs 3 Monitors
- PC ConnectorsHDMI + 2 Displayport
- Monitor Connections3 Ports
- Video ResolutionThe triple monitor KVM switch can bring you Ultra HD 8K visu
- PC SelectionPush Buttons and Wired Controller
- Monitors SupportedHDMI, Displayport, Displayport
- Share four computers across three monitors with one keyboard and mouse
- DP ports deliver 4K at 144 Hz and 8K at 30 Hz; HDMI port delivers 4K at 120 Hz and 8K at 60 Hz
- Four USB 3.0 ports transfer data at up to 5 Gbps for keyboards, mice and peripherals
- Switch instantly using front-panel buttons or the included wired remote with three-colour LED status
- Driver-free operation on Windows, Mac and Linux with a compact 21.3 x 7.7 x 4.4 cm design

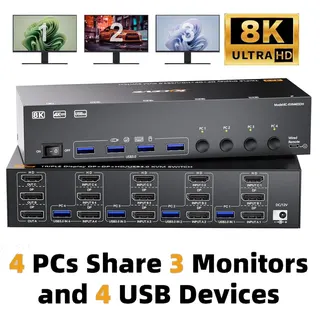

Triple-monitor KVM for four computers

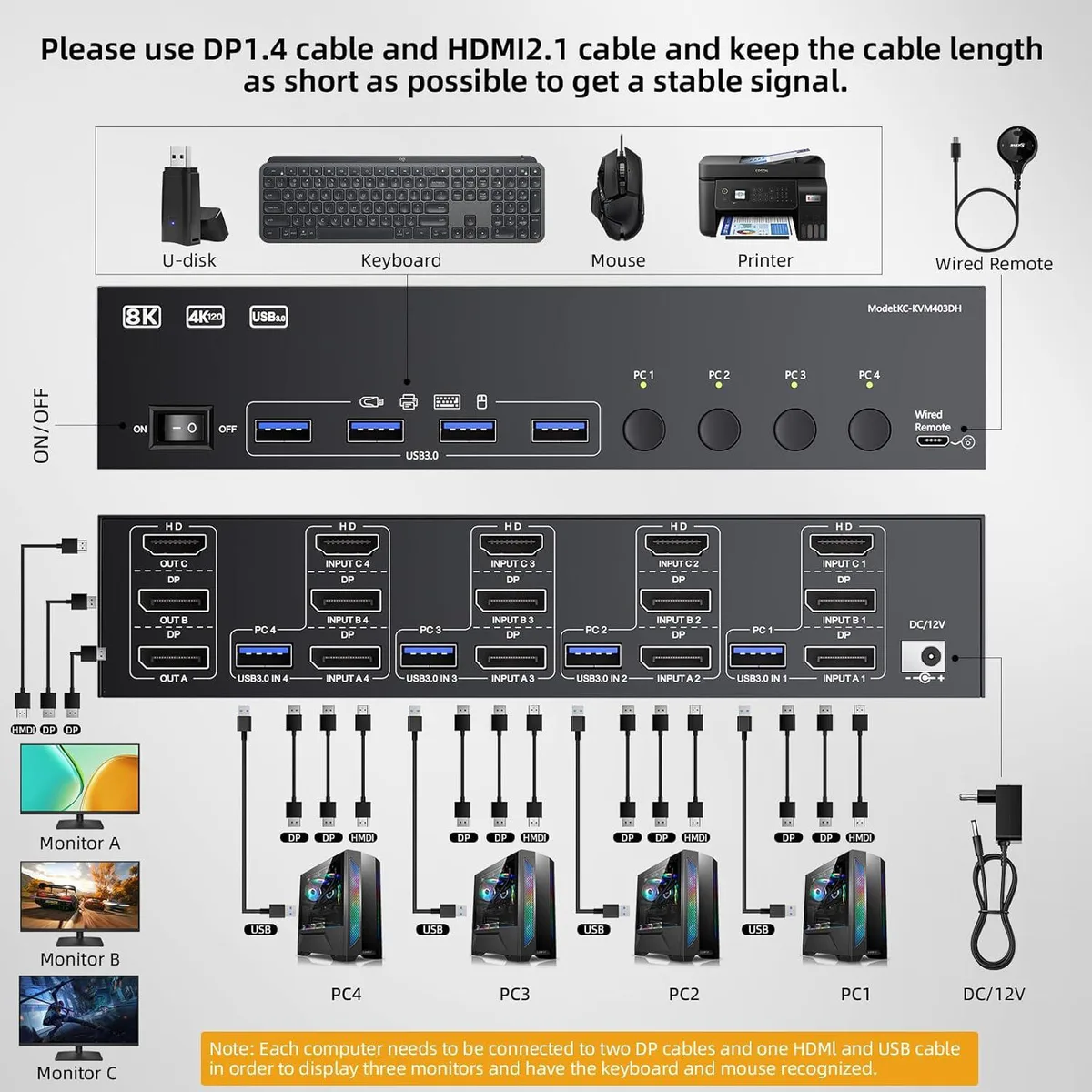

This Hitoor KVM switch lets four desktops or laptops share three displays and four USB 3.0 peripherals. Each computer connects through one HDMI and two DisplayPort cables. The unit includes a wired remote, push-button controls, a 12 V power adapter and four USB 3.0 cables. LED indicators show the active port at a glance.
Suits multi-system workstations; not for fewer ports
Professionals who run four machines across three screens will benefit from the 8K-capable video paths and 5 Gbps USB 3.0 sharing. Buyers who only need to switch two computers or two monitors should look at simpler switches. The device requires each PC to support three simultaneous display outputs; systems with fewer video ports cannot use all three monitor connections.
HDMI 2.1 and DisplayPort 1.4 enable 8K at 60 Hz
The HDMI ports deliver 8K at 60 Hz and 4K at 120 Hz, while the DisplayPort connections reach 8K at 30 Hz and 4K at 144 Hz. These figures are the deciding specification for matching high-refresh-rate or high-resolution monitors to the switch.
Highlights
- Share four computers across three monitors with one keyboard and mouse
- DP ports deliver 4K at 144 Hz and 8K at 30 Hz; HDMI port delivers 4K at 120 Hz and 8K at 60 Hz
- Four USB 3.0 ports transfer data at up to 5 Gbps for keyboards, mice and peripherals
- Switch instantly using front-panel buttons or the included wired remote with three-colour LED status
- Driver-free operation on Windows, Mac and Linux with a compact 21.3 x 7.7 x 4.4 cm design
Specifications
| Type | HDMI + 2 Displayport KVM Switch 4 PCs 3 Monitors |
|---|---|
| PC Connectors | HDMI + 2 Displayport |
| Monitor Connections | 3 Ports |
| Video Resolution | The triple monitor KVM switch can bring you Ultra HD 8K visual enjoyment. DP port supports 4K@144Hz, 8K@30Hz; HDMI port supports 4K@120Hz, 8K@60Hz. NOTE: Please use DP1.4 and HDMI 2.1 cables to connect 4 PCs to 3 KVM switches. The shorter the cable length, the better. |
| PC Selection | Push Buttons and Wired Controller |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | 4 computers 3 monitors KVM switch integrates 4 USB 3.0 ports to recognize keyboards, mice, printers, scanners, and other USB devices.USB 3.0 transfers data at speeds up to 5Gbps, which is up to 10 times faster than USB 2.0 data transfer speeds. |
| Application | This HDMI + 2DisplayPort triple monitor KVM switch supports 4 desktop or laptop computers sharing 3 monitors and 4 USB 3.0 ports. Note: This KVM will only allow you to use 4 computers and 3 monitors at the same time if your computer supports 3 monitors or multiple monitors. |
| Features | Good Compatibility and Easy Switching |
| Dimensions | 21.3 x 7.7 x 4.4 centimetres |
| Weight | 800g |
| Package Contents | 1 x KVM Switches, 4 x USb 3.0 Cable, 1 x Wired Controller, 1 x Power Adapter, 1 x User Manual |
Questions about this item
How do I confirm the KVM switch is passing an 8K@60Hz signal to my HDMI monitor after setup?
The LED indicators on the front panel show which of the four connected computers is currently active; a stable image at 8K@60Hz on the HDMI output confirms the link is working.
Which cables are included in the box and which must I supply to reach 8K@60Hz on HDMI?
The package provides four USB 3.0 cables, a wired remote, a 12 V power adapter and a manual; you must supply DP1.4 and HDMI 2.1 video cables yourself.
Should I choose the HDMI or the DisplayPort outputs if my priority is 4K@144Hz gaming?
Use the two DisplayPort monitor ports, which support 4K@144Hz, while the HDMI port is limited to 4K@120Hz.
