Hitoor

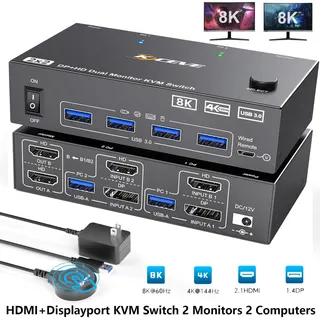

Hitoor 8202DH HDMI+DP KVM Switch 2PC 2Mon 8K60 4K144 USB3.0
A dual-monitor KVM switch lets two computers share two displays and four USB 3.0 peripherals at up to 8K 60 Hz or 4K 144 Hz
- TypeHDMI + Displayport KVM Switch 2 Computer 2 Monitors
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution8K KVM switch supports up to [email protected] can also be b
- PC SelectionPush Buttons and Wired Remote
- Monitors SupportedHDMI, Displayport
- Share two computers across dual monitors at 8K 60 Hz for crisp visuals
- Switch instantly via front buttons or wired remote for hands-on control
- Four USB 3.0 ports share peripherals at 10× USB 2.0 speed
- Driver-free on Windows, macOS, Linux and Chrome OS for plug-and-play setup
- Compact 4.72 × 2.56 × 1.26 in design fits any desk space
Dual-monitor KVM for two PCs
The Hitoor 8202DH lets two computers share two HDMI monitors, a keyboard, a mouse and up to four USB 3.0 peripherals. It is aimed at home-office users, gamers and professionals who need simultaneous dual-display access to both systems without unplugging cables.
Driver-free setup with wired remote
Each computer connects through one HDMI cable, one DisplayPort cable and one USB 3.0 cable to the switch; two HDMI cables then run from the switch to the monitors. A 12 V power adapter is included. Switching is done by front-panel push buttons or the 1.5 m wired remote. Extended and mirrored modes are selected on the host with the standard display shortcut.
8K60 and 4K144 over HDMI 2.1 and DP 1.4
The single specification that decides fit is the maximum video bandwidth: 8K at 60 Hz or 4K at 144 Hz, achievable only with HDMI 2.1 and DisplayPort 1.4 cables. Buyers whose monitors or GPUs do not support those standards will not reach the advertised resolutions.
Highlights
- Share two computers across dual monitors at 8K 60 Hz for crisp visuals
- Switch instantly via front buttons or wired remote for hands-on control
- Four USB 3.0 ports share peripherals at 10× USB 2.0 speed
- Driver-free on Windows, macOS, Linux and Chrome OS for plug-and-play setup
- Compact 4.72 × 2.56 × 1.26 in design fits any desk space
Specifications
| Model | 8202DH |
|---|---|
| Type | HDMI + Displayport KVM Switch 2 Computer 2 Monitors |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K KVM switch supports up to [email protected] can also be backward compatible with 8K@30Hz,4K@120Hz/60Hz etc,please pay attention to the setting of this parameter when you use KVM switches.Brings you realistic visual enjoyment(For optimal performance,please use an 8K HDMI 2.1+DP1.4 cable.The shorter the cable,the better) |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | KVM Switch 2 monitors 2 computers with 4 USB 3.0 ports can be used to 2 PCs share USB devices,keyboard,mouse,camera,etc.The USB 3.0 transmission is more stable and faster--10 times faster than USB 2.0.A 12V power supply (included) is required when using high-power USB devices. |
| Application | The dual monitor KVM switch allows two computers or laptops to share two monitors and 4 USB3.0 devices.KVM switches support Extended&Mirrored Modes,press "Window+P",a small window will pop up,in which to choose "Mirror" Mode or "Extend" Mode. |
| Dimensions | 4.72 x 2.56 x 1.26 inches |
| Package Contents | 1*Dual Monitor USB3.0 KVM Switch, 2*USB3.0 Cables(1.5m/4.9ft), 1*Wired Remote (1.5m/4.9ft), 1*User Manual, 1*12V Power Adapter |
Questions about this item
How do I confirm the Hitoor 8202DH is delivering 8K at 60 Hz or 4K at 144 Hz after I connect everything?
Use HDMI 2.1 cables for the HDMI links and DP 1.4 cables for the DisplayPort links, then check the on-screen display or GPU control panel to verify the active resolution and refresh rate match 8K 60 Hz or 4K 144 Hz.
What cables and accessories are included with the 8202DH, and what must I supply myself?
The box contains the KVM switch, two 1.5 m USB 3.0 cables, a 1.5 m wired remote, a 12 V power adapter and a user manual. You must provide two HDMI cables, two DisplayPort cables and any additional USB peripherals.
I have one PC with dual HDMI outputs and another with HDMI plus DisplayPort — which 8202DH connection scheme should I use?
Connect each computer with one HDMI cable and one DisplayPort cable to the corresponding input ports on the KVM, then run two HDMI cables from the KVM outputs to your two monitors; this matches the 8202DH's HDMI+DP input design.
