Hitoor
Hitoor 203TCC KVM Switch 3 Monitors 2 Laptops 4K 1080P@60Hz
A KVM switch that lets two laptops share three HDMI monitors at 1×4K@60Hz plus 2×1080P@60Hz, four USB 3.2 ports at 10Gbps, and 80W charging per laptop
- TypeUSB C, HDMI
- PC ConnectorsUSB C, HDMI
- Monitor Connections3 Ports
- Video ResolutionThe 3 monitors 2 computers KVM switch supports simultaneous
- PC SelectionPush Buttons and Wired Remote
- Monitors SupportedHDMI, HDMI, HDMI
- Simultaneous triple-monitor output at 1*4K@60Hz+2*1080P@60Hz
- 80W PD charging keeps both laptops powered while switching
- 4 USB 3.2 ports at 10Gbps for fast peripheral sharing
- Push-button and wired remote give two instant switching methods
- Compact 6.06 x 3.03 x 0.79 inch design fits any desk

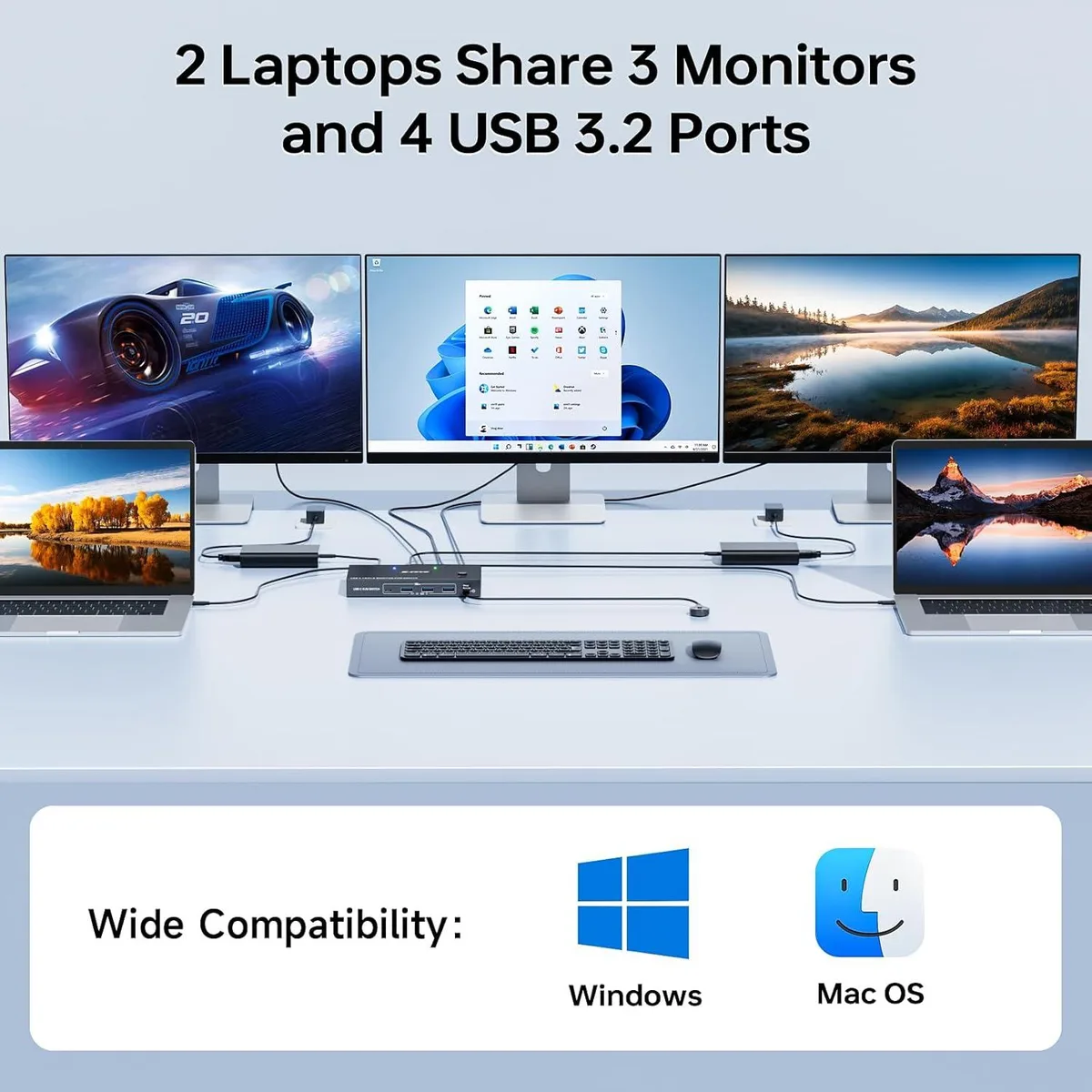

Triple-monitor KVM for two laptops
The Hitoor 203TCC lets you share three HDMI displays and four USB 3.2 peripherals between two USB-C laptops. It supports a mixed resolution layout of one 4K monitor at 60 Hz plus two 1080p monitors at 60 Hz. Driver installation is required on each host, and the switch works with Windows 10 or later and macOS 11 or later. The unit fits users who need a single keyboard, mouse and storage array across both machines.
USB-C docking with 80 W charging and 10 Gbps ports
Each laptop connects through one USB-C cable that carries video, data and up to 80 W of power delivery. The dock provides three USB-A ports and one USB-C port, all running at up to 10 Gbps with backward compatibility to earlier USB standards. Switching between computers is done with front-panel push buttons or the included wired remote, while LED indicators show the active host. The compact enclosure measures 6.06 by 3.03 by .79 inches and weighs 9.35 ounces.
Replaces separate docks and manual cable swapping
This switch removes the need for two independent docking stations and the hassle of unplugging monitors and peripherals when changing laptops. The upgrade is worthwhile when both hosts support DP Alt Mode on their USB-C ports and run a supported operating system. It will not suit setups that require more than two computers, more than three external displays, or laptops without DP Alt Mode capability.
Highlights
- Simultaneous triple-monitor output at 1*4K@60Hz+2*1080P@60Hz
- 80W PD charging keeps both laptops powered while switching
- 4 USB 3.2 ports at 10Gbps for fast peripheral sharing
- Push-button and wired remote give two instant switching methods
- Compact 6.06 x 3.03 x 0.79 inch design fits any desk
Specifications
| Model | 203TCC KVM Switch |
|---|---|
| Type | USB C, HDMI |
| PC Connectors | USB C, HDMI |
| Monitor Connections | 3 Ports |
| Video Resolution | The 3 monitors 2 computers KVM switch supports simultaneous output of 3 HDMI monitors, with resolutions of 1*4K@60Hz+2*1080P@60Hz. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, HDMI, HDMI |
| LED Indicators | Yes |
| USB Features | The 3 monitors KVM switch USB C docking station is euqipped with 4 USB 3.2 ports(3×USB-A + 1×USB-C) for connecting keyboard, mice,external hard drives and more. With a data transfer rate of up to 10Gbps,Backward compatibility with USB 1.1/2.0/3.0. |
| Application | The USB C 3 monitor KVM switch combines USB-C docking station and 3 monitors KVM switch, which not only does it expand your laptop into a workstation with 3 HDMI monitors, 4x USB 3.2 ports (3×USB-A + 1×USB-C), and 2*80W PD charging ports, but also allows to one-click switching between work and personal laptops. |
| Features | Triple Monitor KVM Switch with 4 USB3.2 Port; Charge your laptops via KVM Switch; Wide Compatibility & 2 Switching Ways |
| Dimensions | 6.06 x 3.03 x 0.79 inches |
| Weight | 9.35 ounces |
| Package Contents | 1 x USB C KVM Switch, 2 x USB Cable, 1 x Wired Remote, 1 x User Manual |
Questions about this item
What video output does the USB-C interface cap at when driving three monitors?
The switch delivers one 4K@60Hz stream plus two 1080P@60Hz streams simultaneously across the three HDMI ports.
What physical space and cabling does the 203TCC unit need on a desk?
It measures 6.06 x 3.03 x .79 inches, weighs 9.35 ounces, and requires two USB-C host cables, three HDMI monitor cables, and the included power adapter.
How is the driver installed, and what step do people miss?
After connecting both laptops, a driver-install wizard pops up on each OS; you must run that wizard on both Windows 10+ and Mac OS 11+ before switching will work.
