Hitoor

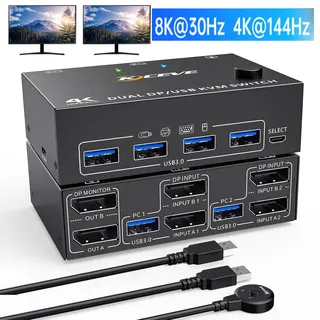

Hitoor 202DP KVM Switch 2×2 DP 8K@30Hz 4K@144Hz 4 USB 3.0
Dual-monitor DisplayPort KVM switch lets two computers share two displays, keyboard, mouse and four USB 3.0 peripherals at up to 8K 30 Hz or 4K 144 Hz with push-button or wired remote switching
- TypeDisplayport KVM Switch 2 Monitors 2 Computers
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video ResolutionKVM Switch Dual Monitor displayport support resolution 8K@30
- PC SelectionPush Buttons and Wired Remote
- LED IndicatorsYes
- Control two computers with one keyboard, mouse and dual monitors
- Supports up to 8K at 30 Hz and 4K at 144 Hz
- Four USB 3.0 ports deliver 5 Gbps data transfer
- Switch instantly via front buttons or 1.5 m wired remote
- Works driver-free on Windows 10, 11, Mac OS and Linux
Dual-DisplayPort KVM for Two Computers

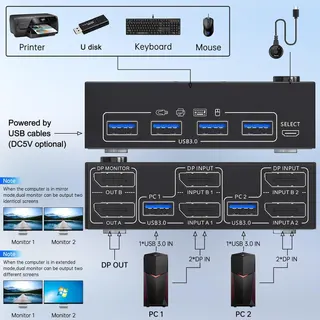

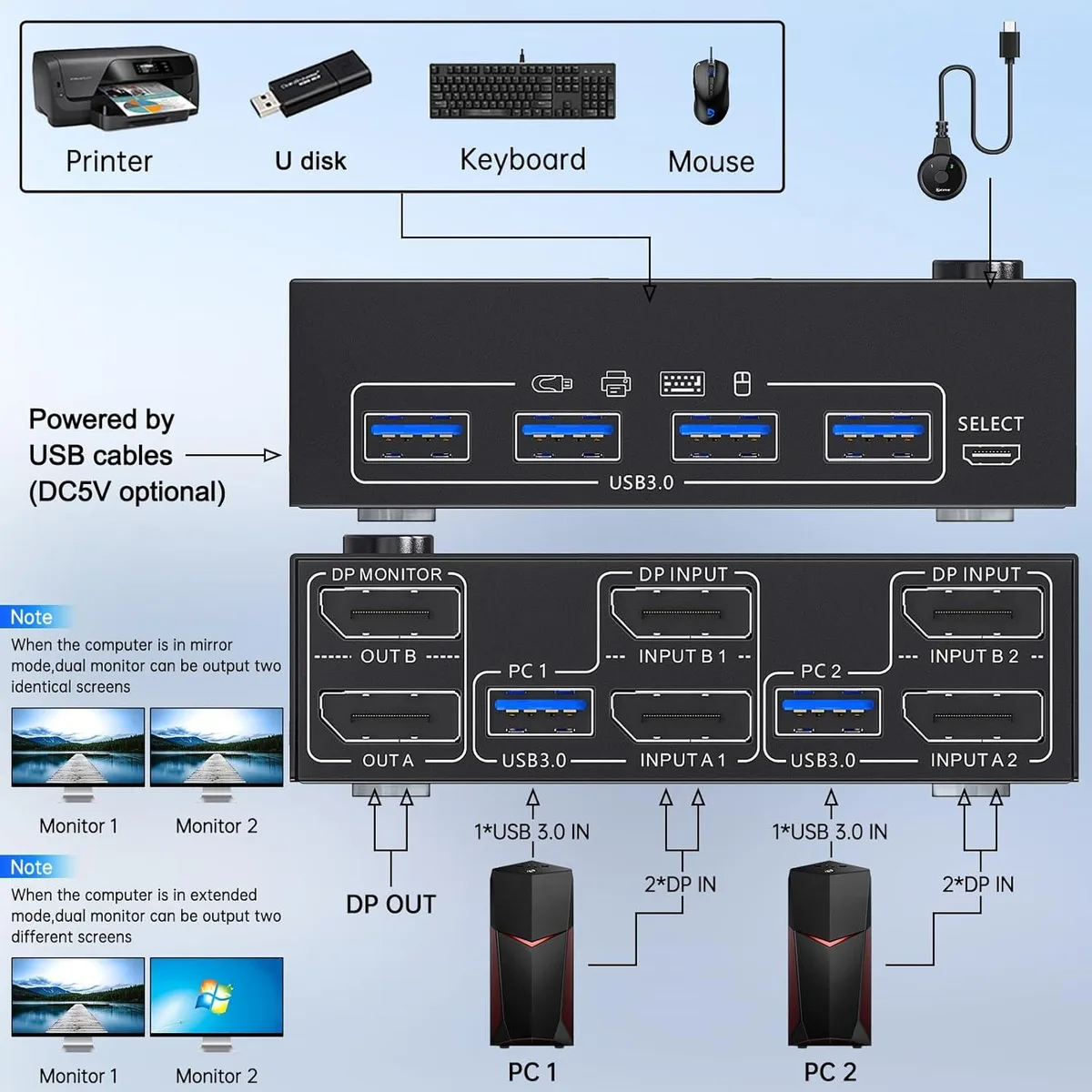

This DisplayPort KVM switch lets two computers share two monitors and a single keyboard and mouse set. It supports extended and mirror modes selected with Windows+P and works driver-free on Windows 10, 11, Linux and Mac OS. Front-panel buttons and a 1.5 m wired remote change the active system in 2-4 seconds. Four USB 3.0 ports handle peripherals at up to 5 Gbps.
Video bandwidth and adapter limits
Maximum supported timings are 8K at 30 Hz and 4K at 144 Hz, with backward compatibility to DP 1.2. Each computer must provide two native DisplayPort outputs; HDMI or USB-C sources need active adapters. The unit has no EDID emulation, so window positions may shift after switching or reboot. External 5 V power is required when high-draw USB devices such as hard drives are connected.
Two-port computer connection constraint
The switch only accepts two computer inputs, so setups needing three or more hosts cannot use this model. Buyers who want more computer ports must choose a different KVM.
Highlights
- Control two computers with one keyboard, mouse and dual monitors
- Supports up to 8K at 30 Hz and 4K at 144 Hz
- Four USB 3.0 ports deliver 5 Gbps data transfer
- Switch instantly via front buttons or 1.5 m wired remote
- Works driver-free on Windows 10, 11, Mac OS and Linux
Specifications
| Model | 202DP KVM Switch |
|---|---|
| Type | Displayport KVM Switch 2 Monitors 2 Computers |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | KVM Switch Dual Monitor displayport support resolution 8K@30Hz/ [email protected] switch 2 computers 2 monitors aslo support input terminal to connect 2 computers with different resolutions, e.g. one is 4K@60Hz, the other is 4K@30Hz, 1440P@60Hz or lower resolution.Note: Final resolution is also subject to graphic cards, monitors, cables and adapters. |
| PC Selection | Push Buttons and Wired Remote |
| LED Indicators | Yes |
| Power Features | Powered by USB cables,but when using a high-power USB device with this displayport dual monitor KVM switch(such as HDD, SSD etc),external 5V adapter is required. |
| USB Features | Dual monitor DP USB switch with 4 integrated USB 3.0 ports,supports ultra-fast USB 3.0 data transfer, Data transfer speeds up to 5Gbps,which can recognize keyboard,mouse,printer,scaner and other USB devices.compatible with USB 2.0/1.1 devices. |
| Application | This dual monitor KVM Switch Displayport can control two computers to share two monitors with a set of keyboard and mouse. You can select the extend and duplicate modes by pressing “Windows+P”. It is the best KVM switch to improve your productivity and make your workspace tidier, also a premium choice for work and home. |
| Features | 2 computers share one set of wired/wireless keyboard, mouse and 2 monitors. Support max up resolution 8K@30Hz,4K@144Hz,2560×1440@144Hz,1920x1080P@144Hz,downward compatible.support ultra-wide monitors. Dual monitors output support extended and mirror display. Switching modes: Button switch and wired remote (1.5m),switch between 2 computers just need 2-4 seconds, fast and convenient. Support wired or wireless keyboard and mouse.When use a mechanical gaming keyboard,You need to plug in the DC 5V USB power cable to the KVM to provide sufficient power. Cross support most major OS includin |
| Dimensions | 4.02 x 2.56 x 1.18 inches |
| Weight | 1.57 Pounds |
| Package Contents | 1 * Displayport KVM switch; 2 * USB3.0 cable; 1 * Wired remote; 1 * USB power cable; 1 * User manual. |
Questions about this item
Should I choose a KVM that handles two monitors and two computers, or a single-monitor model?
This 202DP unit is built for two computers sharing two monitors, so pick it when you need dual-screen extended or mirrored desktops on both systems.
What does the 8K@30Hz headline mean once the switch is in my setup?
It can pass up to 8K at 30 Hz or 4K at 144 Hz, but the final resolution depends on your graphics cards, monitors and cables all supporting those modes.
Which DisplayPort standard does it use, and what does that cap in practice?
It supports DP 1.4 and is backward compatible with DP 1.2, so the link speed and features are limited to whatever the connected source and display negotiate.
