Hitoor
Hitoor 202DP KVM Switch 2×2 DP 1.4 8K60 4K144 USB 3.0 Wired Remote
Connects two computers to dual monitors at up to 8K@60Hz and 4K@144Hz, with four USB 3.0 ports and a wired remote for instant switching
- TypeDual Monitor Displayport KVM Switch 2 Computer 2 Monitors
- PC ConnectorsDP 1.4
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video ResolutionDP1.4 enabled 2 monitor KVM switches supports up to 8K@60Hz,
- PC SelectionPush Buttons and Wired Remote
- Share two monitors between two PCs with extended or mirrored modes
- Switch instantly via front buttons or included wired remote
- Drive both displays at up to 8K 60 Hz or 4K 144 Hz over DP 1.4
- Connect four USB 3.0 peripherals at 5 Gbps through the built-in hub
- Compact 3.94 × 2.56 × 1.3 in unit powered by 12 V adapter
Dual DisplayPort KVM for Two Computers
The Hitoor 202DP is a new dual-monitor KVM switch that lets two computers share two DisplayPort 1.4 displays and four USB 3.0 peripherals. It supports resolutions up to 8K at 60 Hz and 4K at 144 Hz, with actual output dependent on the graphics cards, monitors and cables used. A wired remote and front-panel buttons provide two ways to change the active system.
Suited for twin-display workstations needing
This unit fits users who run two PCs, each equipped with two DisplayPort outputs, and want both monitors active in extended or mirrored mode without unplugging cables. It is not suited for setups where either computer lacks two DisplayPort outputs, or for anyone requiring HDMI or USB-C video inputs. The switch also requires the included 12 V power adapter to operate.
DisplayPort 1.4 interface

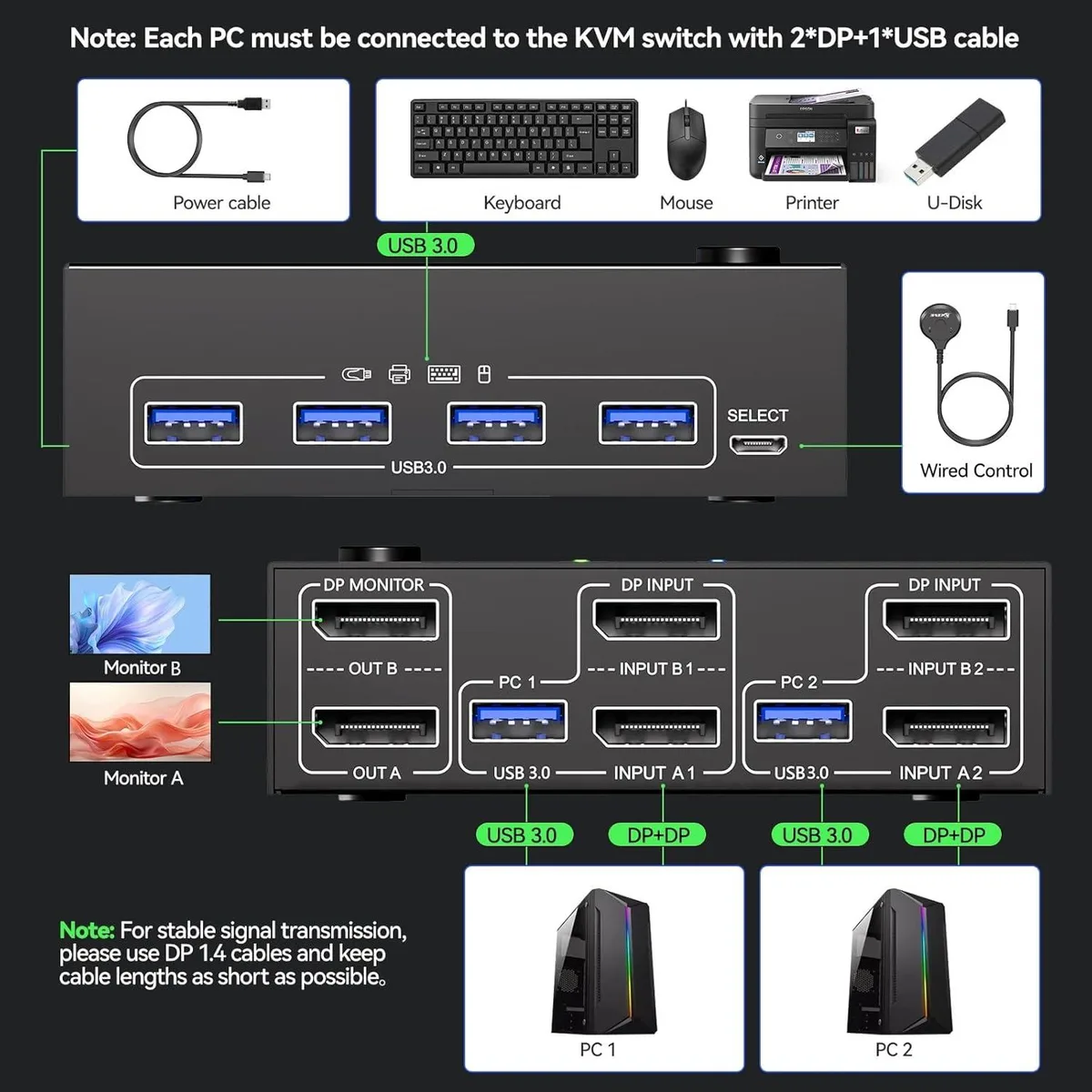

The single specification that decides compatibility is the DisplayPort 1.4 video interface on both the computer and monitor sides. Each PC must connect two DP 1.4 cables plus one USB 3.0 cable to the switch, so graphics cards without two native DisplayPort ports cannot be used directly. Maximum supported timings are 8K at 60 Hz and 4K at 144 Hz.
Highlights
- Share two monitors between two PCs with extended or mirrored modes
- Switch instantly via front buttons or included wired remote
- Drive both displays at up to 8K 60 Hz or 4K 144 Hz over DP 1.4
- Connect four USB 3.0 peripherals at 5 Gbps through the built-in hub
- Compact 3.94 × 2.56 × 1.3 in unit powered by 12 V adapter
Specifications
| Model | 202DP KVM |
|---|---|
| Type | Dual Monitor Displayport KVM Switch 2 Computer 2 Monitors |
| PC Connectors | DP 1.4 |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | DP1.4 enabled 2 monitor KVM switches supports up to 8K@60Hz, 4K@144Hz & lower resolutions, delivering crystal-clear visuals with sharp, detailed imagery. Note: Actual resolution depends on your graphics card, monitors and cables. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | Displayport, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | 8K Displayport KVM Switch integrated 4 USB 3.0 ports for keyboard, mouse, printer & USB drives – supports 5Gbps ultra-high-speed data transfer (10x faster than USB 2.0). Ideal for multi-device workflow. |
| Application | This displayport 2 Monitors KVM Switch effortlessly connect 2 PC to share 2 monitors (supports extended & mirrored display modes) and 4 high-speed USB 3.0 ports. |
| Features | Great compatibility & 2 switching modes |
| Dimensions | 3.94 x 2.56 x 1.3 inches |
| Package Contents | 1* Displayport KVM switch, 2* USB 3.0 cable, Wired remote, USB Power cable and User manual. |
Questions about this item
What cables and ports must my two computers already have to connect this KVM?
Each computer needs two DisplayPort 1.4 outputs and one USB-A port for the included USB 3.0 cables.
Will my older 4K 60 Hz monitors work alongside this switch without limiting the second display?
Yes, the switch handles mixed resolutions independently; a 4K 60 Hz panel on one port will not restrict an 8K 60 Hz or 4K 144 Hz panel on the other.
How can I confirm the switch is passing the full 8K 60 Hz or 4K 144 Hz signal after setup?
Open the graphics driver control panel on the active computer and verify the linked display shows the target resolution and refresh rate.
