Hitoor
Hitoor 164FT 50M HDMI KVM USB Extender Over Cat 5e/6/7 Cable
Extends HDMI video and USB keyboard-mouse control up to 164 ft over a single Cat6 cable with 1080p60 resolution and local loop-out
- TypeHDMI, USB
- PC ConnectorsHDMI, USB
- Computer Connections1 Port
- Monitor Connections1 Port
- Video Resolution1080P@60Hz
- LED IndicatorsYes
- Transmit 1080P@60Hz video and USB up to 164ft over Cat6
- Control a computer remotely with keyboard and mouse via 2 USB 2.0 ports
- Connect an extra local display using the transmitter HDMI loop-out
- Power the receiver over the same Cat6 cable with POC technology
- Supports a wide range of resolutions from 640x480 up to 1920x1080
Extends HDMI and USB up to 164ft

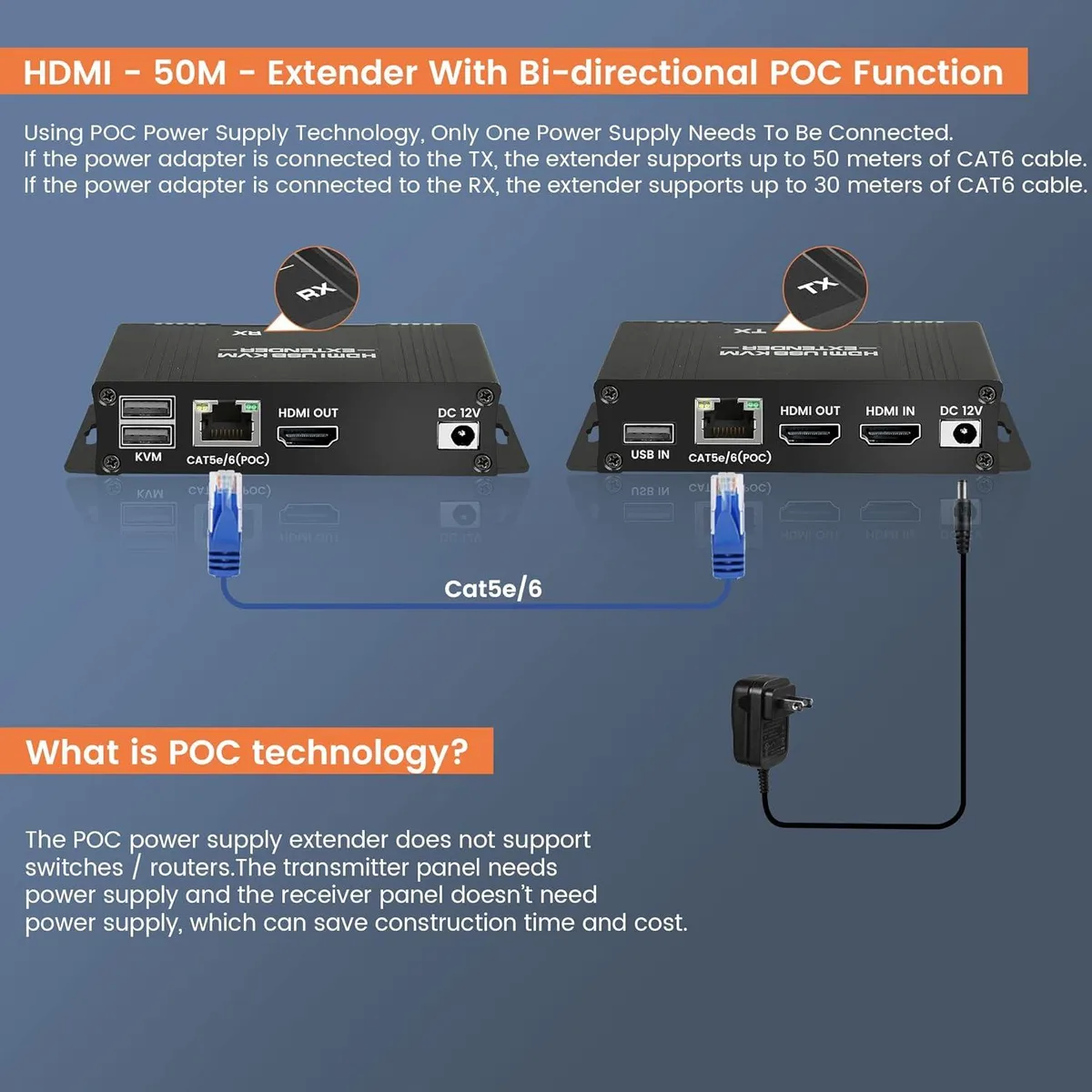

This KVM extender sends 1080P video at 60Hz and two USB 2.0 signals over a single CAT5e or CAT6 cable. It links a computer to a remote display, keyboard and mouse at distances up to 50 metres with zero latency. The transmitter includes a local HDMI loop-out for a second monitor at the source side. A single power adapter powers both units through the cable.

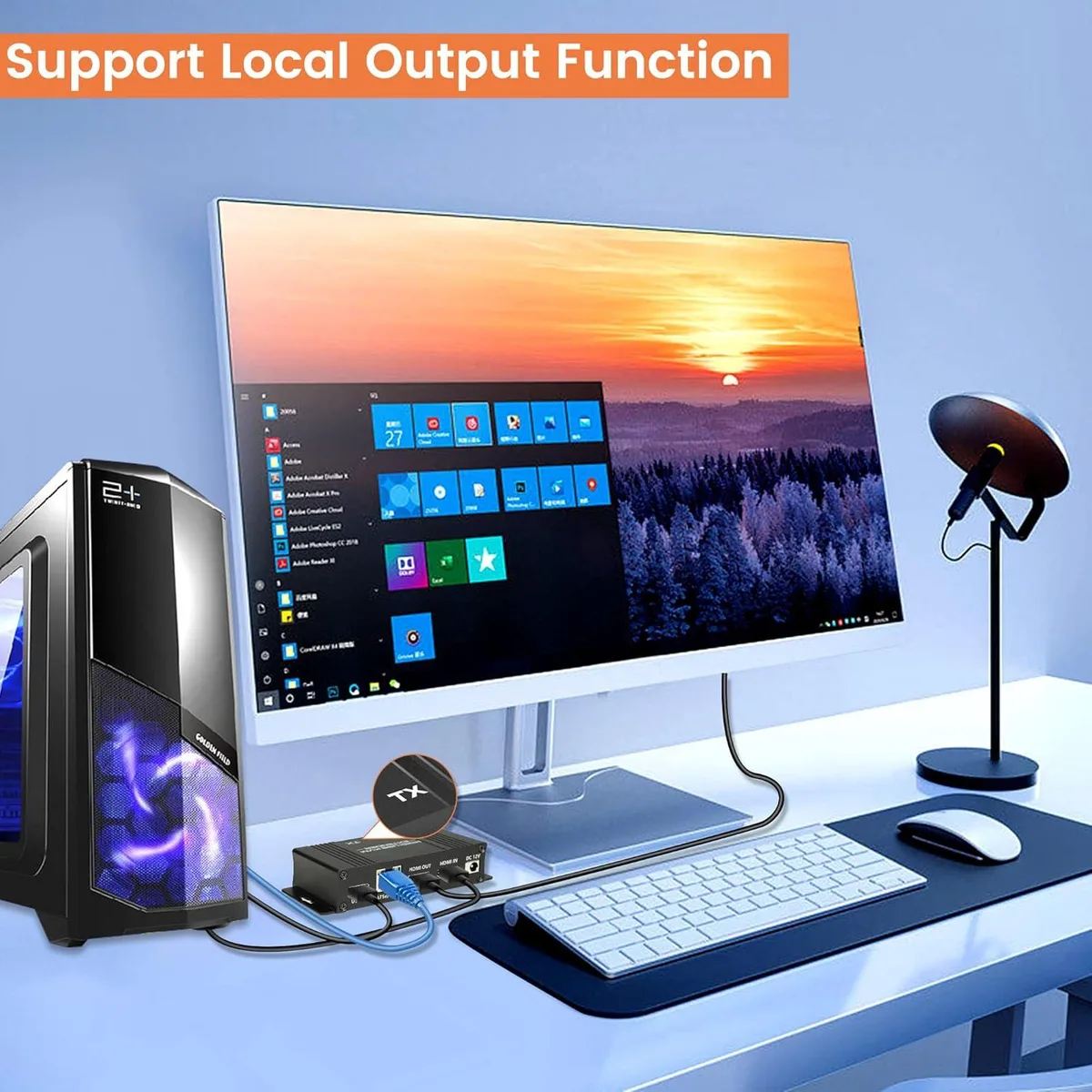

Local loop-out adds a second display
The transmitter provides an extra HDMI output so you can keep a monitor at the computer while the main signal travels to the remote location. Two USB 2.0 ports on the receiver handle keyboard and mouse without extra hubs. Power-over-cable means only one 12V adapter is needed at the transmitter end. The package includes transmitter, receiver, power adapter and manual.
CAT cable simplifies long runs
Using standard CAT5e or CAT6 cabling avoids bulky HDMI cables and makes routing through walls or conduit straightforward. LED indicators on both boxes confirm link status at a glance. The compact metal housings suit desk or rack mounting in classrooms, conference rooms or exhibition booths. No software drivers are required for Windows, macOS or Linux hosts.
Highlights
- Transmit 1080P@60Hz video and USB up to 164ft over Cat6
- Control a computer remotely with keyboard and mouse via 2 USB 2.0 ports
- Connect an extra local display using the transmitter HDMI loop-out
- Power the receiver over the same Cat6 cable with POC technology
- Supports a wide range of resolutions from 640x480 up to 1920x1080
Specifications
| Type | HDMI, USB |
|---|---|
| PC Connectors | HDMI, USB |
| Computer Connections | 1 Port |
| Monitor Connections | 1 Port |
| Video Resolution | 1080P@60Hz |
| LED Indicators | Yes |
| Power Features | with Power Adapter |
| USB Features | with USB support |
| Application | 1080P@60Hz HDMI/ USB KVM extender can transmit high quality HDMI and 2 USB signals (keyboard and mouse) up to 164ft/50m over a single CAT6 cable with zero latency, audio and video synchronization. |
| Features | 164FT /50M By Cat6 Connect to transmitter box CAT port through a CAT5e/6 cable length up to 164ft/50m. KVM - 2 Ports USB2.0 Support remote control a computer system through keyboard and mouse. Local HDMI Loop-Out connect an additional HDMI output screen on the Transmitter (TX), local loop-out live video. HD 1080P@60Hz Support resolution up to1920x1080P@60Hz, lossless compressed digital audio. POC Function Adopt POC technology, power over cable, more simple and convenient. |
| Package Contents | 164FT (50M) HDMI USB KVM Extender Transmitter + Receiver * 1, DC 12V/1A Power Adapter * 1, User Manual * 1 |
Questions about this item
How long will the DC 12V/1A power adapter typically last before it needs replacing?
The single POC power supply runs both transmitter and receiver, so only one 12V/1A adapter is in service; plan on swapping it after a few years of continuous use.
What distance limit appears first when pushing the CAT6 cable run toward the maximum 164ft?
Signal integrity for 1080P@60Hz and USB 2.0 keyboard/mouse data is guaranteed up to 164ft/50m over CAT6; beyond that the video or USB link will drop first.
Does the transmitter or receiver generate noticeable heat or fan noise during all-day operation?
Neither unit includes a fan; both run passively and stay warm to the touch but silent during 24/7 use.
