Small metal box with three RJ45 ports and DIN-rail clip

Hikvision POE-EXT02G 2-Port Gigabit PoE Extender

SKU CH-PN3B-F4FEJ

Splits one PoE input into two PoE outputs to power IP cameras while extending data and power up to 330 ft over Cat5e or Cat6 at Gigabit speed

  • FormatCamera
  • StandardsRJ45
  • Network MediaRJ45
  • Network Management TypePoE Extender
  • Uplink InterfaceRJ45
  • Uplink SpeedRJ45
  • Splits one PoE input into two powered outputs
  • Extends PoE and data reach by 330 ft over Cat5e or Cat6
  • Metal IP53 enclosure withstands -22 °F to 149 °F with 4 kV surge protection
  • Gigabit 1000 Mbps throughput with plug-and-play simplicity
  • Compact 1.02 x 3.26 x 2.09 in design fits junction boxes and DIN-rail mounts

PoE Extender for IP Cameras

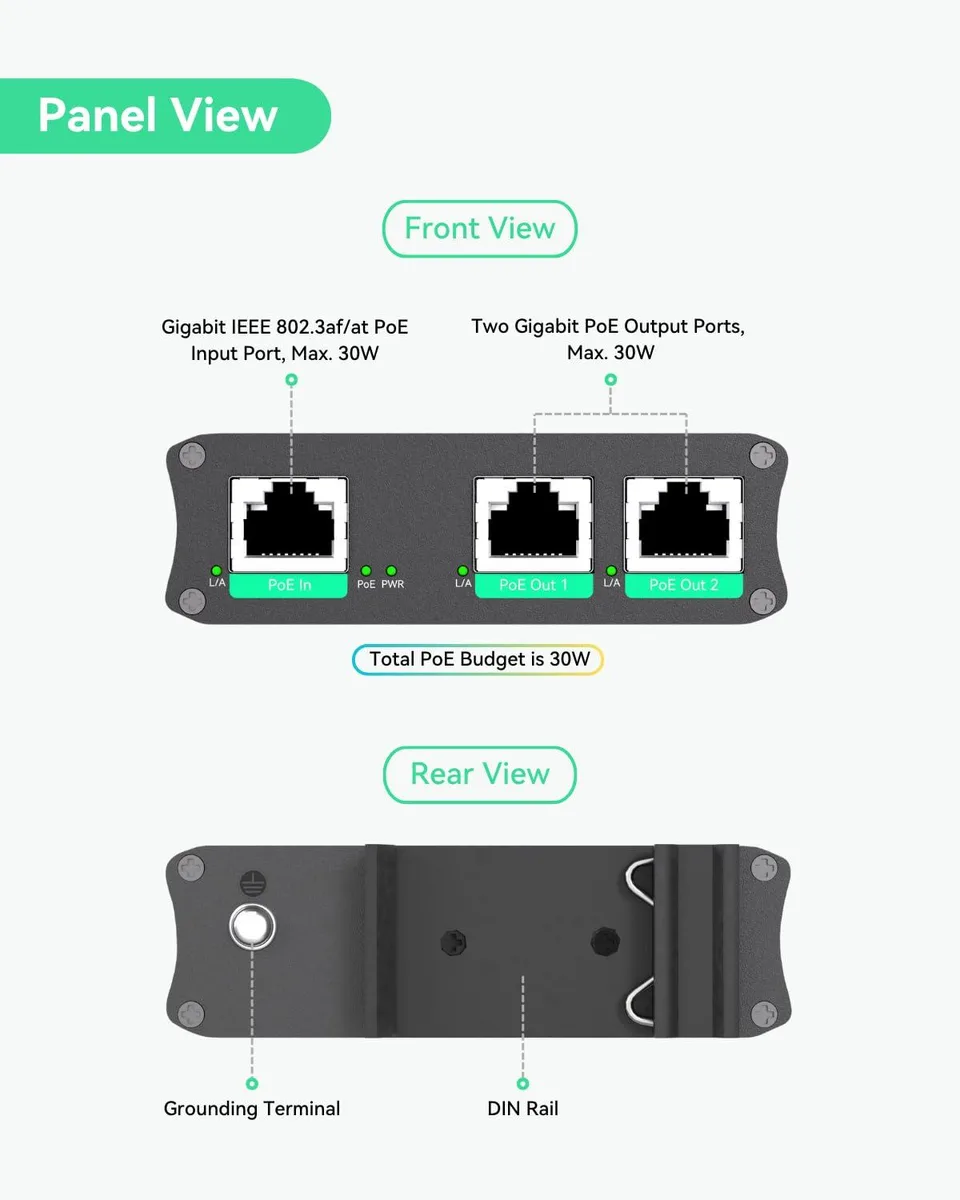

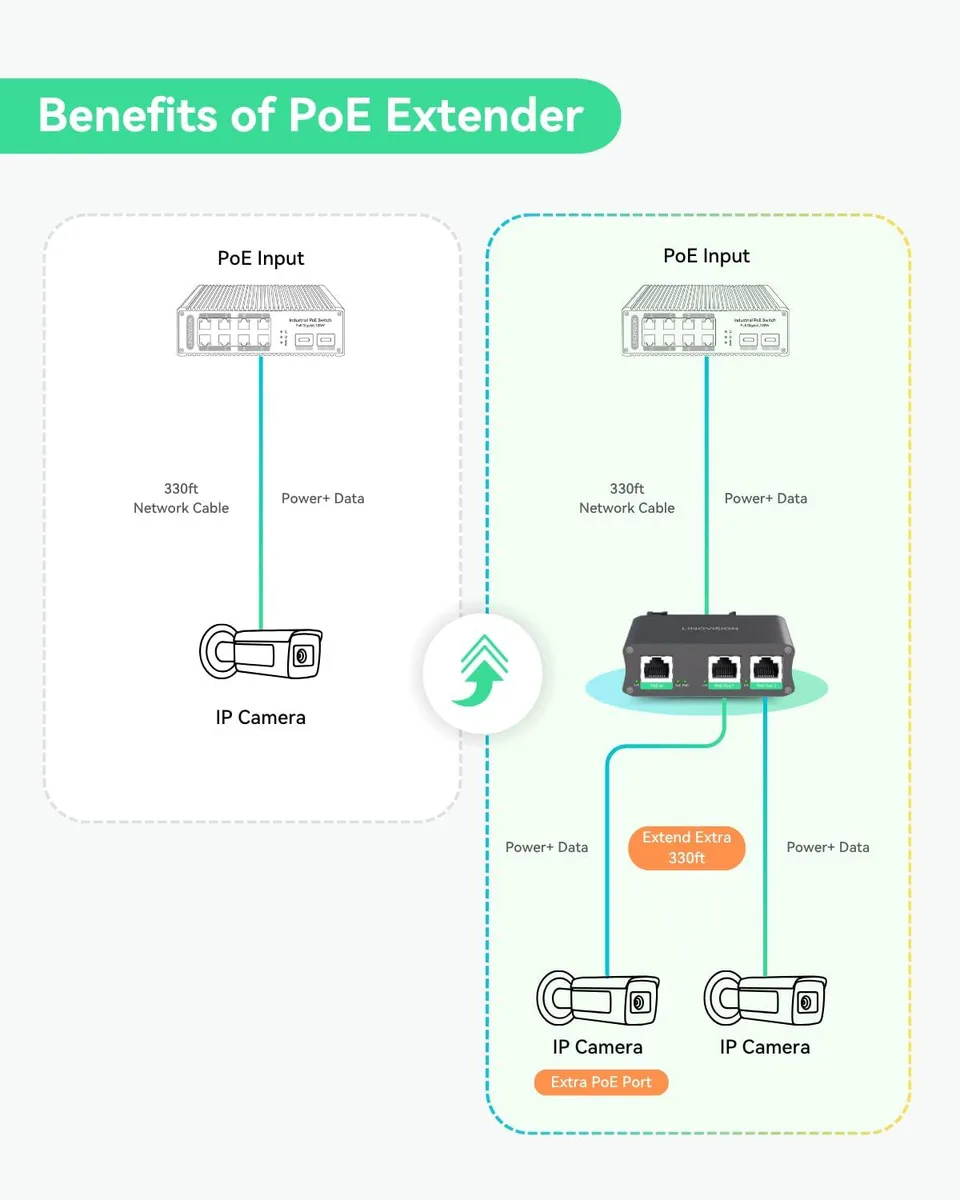

The Hikvision POE-EXT02G splits a single PoE input into two PoE outputs, letting installers power two IP cameras from one cable run. It complies with IEEE 802.3af/at standards and delivers gigabit data rates across the link. The metal enclosure carries an IP53 rating and operates from -22 °F to 149 °F for outdoor or industrial use.

Suits long cable runs and dual-camera drops

Installers who need to extend power and data by an extra 330 ft over Cat5e or Cat6 will benefit from the plug-and-play design. Builders requiring more than two powered ports, a 90 W PoE budget, or 10 Gbps throughput should look at other models. The unit mounts on DIN rail and fits inside compact junction boxes.

Sustained load behaviour

The extender forwards traffic at 1000 Mbps while supplying up to 30 W total across both output ports. Its metal casing provides passive heat dissipation during continuous operation across the full temperature range. Surge protection rated at 4 kV helps maintain stability on long outdoor cable runs.

Highlights

  • Splits one PoE input into two powered outputs
  • Extends PoE and data reach by 330 ft over Cat5e or Cat6
  • Metal IP53 enclosure withstands -22 °F to 149 °F with 4 kV surge protection
  • Gigabit 1000 Mbps throughput with plug-and-play simplicity
  • Compact 1.02 x 3.26 x 2.09 in design fits junction boxes and DIN-rail mounts

Specifications

BrandHikvision
SeriesPOE-EXT02, POE-EXT02G
ModelPOE-EXT02
Part NumberPOE-EXT02G
FormatCamera
StandardsRJ45
Network MediaRJ45
Network Management TypePoE Extender
Uplink InterfaceRJ45
Uplink SpeedRJ45
Uplink Speed/TypeRJ45
Primary Port Count2
Primary Ports2 x RJ45
Primary Port SpeedRJ45
Primary Port TypeRJ45
Management InterfaceRJ45
Management FeaturePoE Extender
MAC Address TablePOE-EXT02G, POE-EXT02
Jumbo FramesPOE-EXT02, 1000 megabits_per_second, RJ45
Packet Forwarding Rate1000 megabits_per_second
ProtocolsCamera, RJ45
SNMPPOE-EXT02
LayerPoE Extender
Layer 2 FeaturesRJ45, 1000 megabits_per_second, 2
Layer 3 FeaturesPOE-EXT02
Port MirroringPOE-EXT02
Module Support2
CablingRJ45
FanPoE Extender
Cloud AccessPOE-EXT02
PoE Ports2
Power48 volts
Max Power Consumption48 volts
Dimensions20'
Certificationnot_applicable
Temperature65 degrees_celsius
Features2, RJ45, PoE Extender, 1000 megabits_per_second, black
Package ContentsPoE Extender

Questions about this item

What PoE source do I need to power the POE-EXT02G?

Connect a PoE switch, injector or NVR that supplies up to 30 W per the IEEE 802.3af/at standard.

Can I run the extender at Gigabit speed with Cat5e cabling?

Yes, the unit supports 1000 Mbps forwarding over standard Cat5e or Cat6 up to the 330 ft extension limit.

How do I confirm the extender is passing data and power correctly?

Verify link LEDs on both output ports and ensure each connected camera receives power and a 1000 Mbps negotiated link.
