Low-profile PCIe card with two internal SATA and two eSATA ports

HighPoint Technologies, Inc.

HighPoint Technologies RocketRAID 642L PCIe 2.0 x4 SATA III RAID controller

SKU CH-Y66E-Q9GA5 MPN RocketRAID 642L

Low-profile PCIe 2.0 x4 card adds four SATA 6.0Gb/s ports with RAID 0/1/5/10 JBOD support

  • Form FactorLow Profile
  • TypeSATA III (6.0Gb/s)
  • External Connectors2 x eSATA
  • Internal Connectors2 x SATA 6.0Gb/s
  • InterfacePCI-Express 2.0 x4
  • Transfer RateUp to 6Gb/s
  • RAID 0, 1, 5, 10 and JBOD protect or accelerate data
  • PCI Express 2.0 x4 interface delivers up to 6 Gb/s throughput
  • Two internal SATA 6.0 Gb/s ports plus two eSATA connectors for flexible cabling
  • Marvell 88SE9235 controller supports port multipliers for up to 20 drives
  • Low-profile bracket included fits compact or standard-height chassis

Low-profile SATA RAID controller

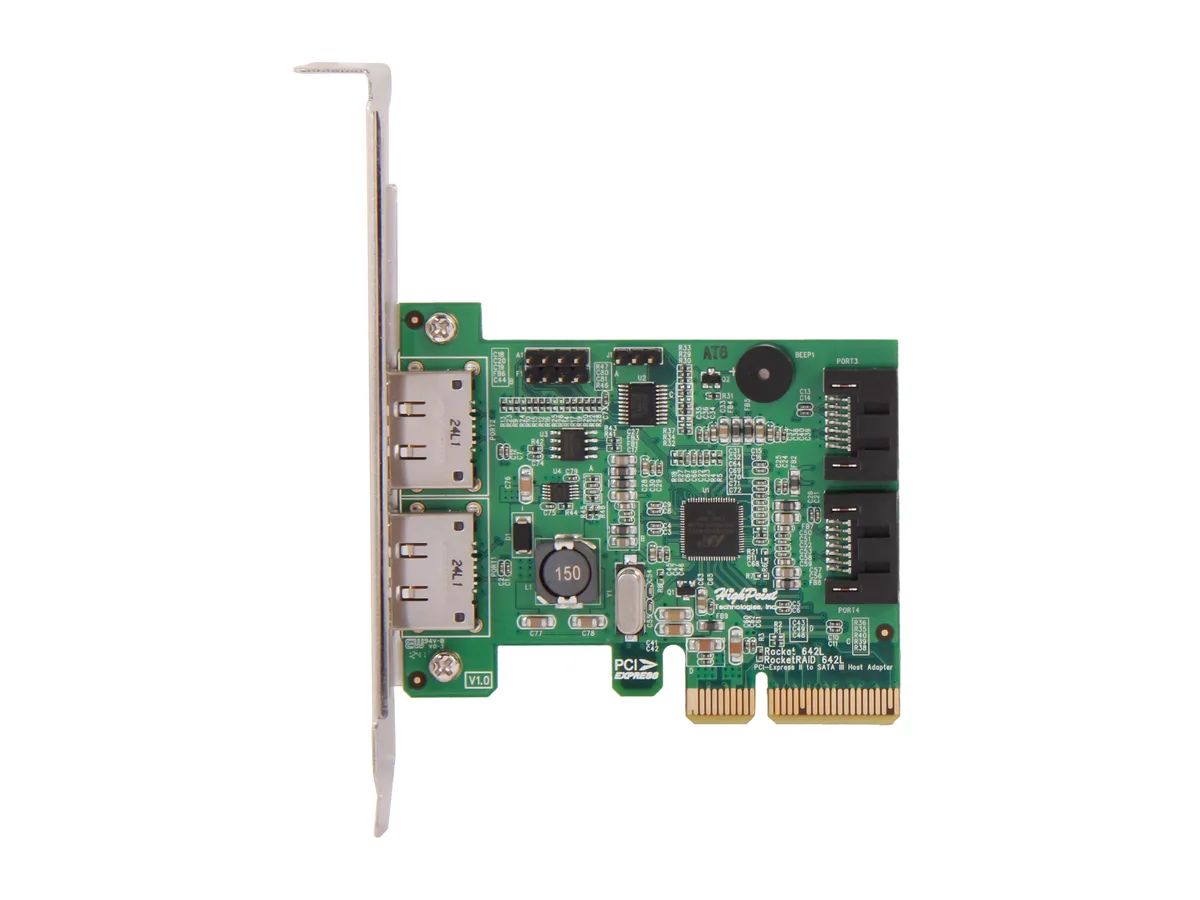

The RocketRAID 642L is a low-profile PCIe 2.0 x4 host adapter that adds four SATA 6.0Gb/s ports to a PC or Mac. Two connectors are internal and two are external eSATA, so drives can sit inside the chassis or in an external enclosure. The onboard Marvell 88SE9235 controller handles RAID 0, 1, 5, 10 and JBOD without using host CPU cycles. A port-multiplier function lets the card address up to 20 SATA devices in total.

Builders with legacy OS requirements

This card suits integrators maintaining Windows Server 2003, 2007 or 2008, Windows Vista, 7 or 8, Mac OS X 10.5 or major Linux and FreeBSD releases. It is not for builders who need driver support for current Windows Server or macOS versions, nor for systems that lack a PCIe 2.0 x4 slot. Users wanting more than four native SATA connections or hardware RAID 6 will also need a different solution.

Four native SATA 6.0Gb/s ports

The single specification that decides fit is the port count: two internal SATA and two external eSATA connectors, each running at up to 6.0Gb/s. If the build requires exactly four native 6Gb/s links and the operating system is listed in the supported matrix, the 642L matches; otherwise the port count or OS support will be the limiting factor.

Highlights

  • RAID 0, 1, 5, 10 and JBOD protect or accelerate data
  • PCI Express 2.0 x4 interface delivers up to 6 Gb/s throughput
  • Two internal SATA 6.0 Gb/s ports plus two eSATA connectors for flexible cabling
  • Marvell 88SE9235 controller supports port multipliers for up to 20 drives
  • Low-profile bracket included fits compact or standard-height chassis

Specifications

BrandHighPoint
Series2nd Generation RocketRAID 600L Series
ModelRocketRAID 642L
Form FactorLow Profile
TypeSATA III (6.0Gb/s)
External Connectors2 x eSATA
Internal Connectors2 x SATA 6.0Gb/s
InterfacePCI-Express 2.0 x4
Transfer RateUp to 6Gb/s
RAIDRAID 0/1/5/10 JBOD
Operating Systems SupportedWindows Server 2008, 2007, 2003, Window 8, 7, Vista
Major Linux Distributions
Mac OS X 10.5 and newer
FreeBSD
FeaturesSATA Controller: Marvell 88SE9235
Port Multiplier: Up to 20 SATA devices
Activity/Failure LED: Yes (internal ports only)
Alarm/Buzzer: Yes

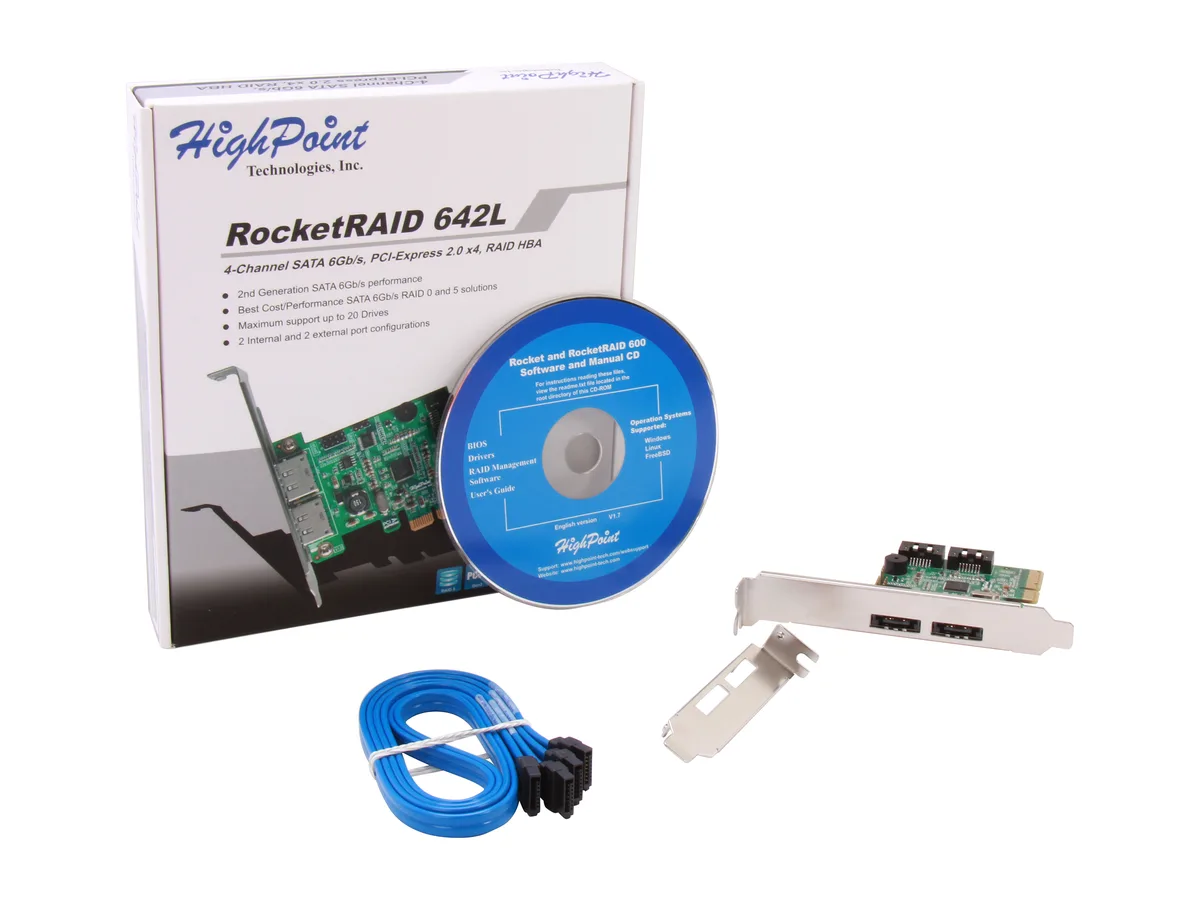

Package ContentsRocketRAID 642L Host Adapter
(2) SATA cabels
Low Profile Bracket
Software CD (User Manual, Driver Package)
Quick Installation Guide (QIG)
Shipping weight0.20 kg
Package size202 × 174 × 36 mm

Questions about this item

Will the RocketRAID 642L fit in a low-profile slot with a 2.6" by 3.1" bracket?

The card uses a low-profile form factor measuring 2.6 inches by 3.1 inches and includes a low-profile bracket in the package for direct installation.

Which driver do I load first when installing the RocketRAID 642L on Windows Server 2008, and what step is often missed?

Install the driver from the included software CD before connecting any drives; the step often missed is loading the driver during OS setup so the RAID volumes are visible immediately.

How many SATA devices can the Marvell 88SE9235 controller on the RocketRAID 642L support through port multipliers?

The Marvell 88SE9235 controller supports port multiplier expansion up to 20 SATA devices across the four 6.0Gb/s ports.
