Green circuit board with eight M.2 slots and large silver heatsink

HighPoint Technologies, Inc.

HighPoint Technologies, Inc. SSD7540 PCIe 4.0 x16 8-Port M.2 RAID Controller

SKU CH-T7R6-GD2WY MPN SSD7540

Connects eight M.2 2280 NVMe drives via PCIe 4.0 x16 with RAID 0, 1, 10 and up to 64TB capacity

  • TypePCI-Express
  • Internal Connectors8 x M.2
  • InterfacePCI-Express 4.0 x16
  • SSD Form FactorM.2 2280
  • RAIDRAID Support: Single, RAID 0, 1, 1/0 TRIM RAID Support: Sing
  • Dimensions11.22" x 4.37" x 0.83"
  • Supports up to 64TB total storage capacity
  • PCIe 4.0 x16 interface enables 28000MB/s transfer speed
  • Eight independent M.2 2280 ports for NVMe SSDs
  • Low-noise hyper-cooling keeps drives at safe temperatures
  • Integrated TBW and temperature monitoring protects data

Eight-port M.2 NVMe RAID controller

The HighPoint SSD7540 is a PCIe 4.0 x16 add-in card that provides eight M.2 2280 slots for NVMe solid-state drives. It targets workstation and server builders who need dense, high-throughput local storage in a single expansion slot. The card supports single-drive, RAID 0, RAID 1 and RAID 1/0 configurations with TRIM pass-through on all modes. It runs on Windows 10, Windows Server 2016 or later, Linux kernel 3.10 or later and macOS 10.13 or later.

PCIe 4.0 x16 host interface

The decisive specification is the PCI-Express 4.0 x16 uplink, which supplies the aggregate bandwidth required to saturate eight Gen 4 NVMe drives simultaneously. Without a full x16 Gen 4 link from the CPU or chipset the card will fall back to Gen 3 speeds and cannot deliver the rated 28,000 MB/s throughput. Buyers whose platforms only offer x8 or Gen 3 slots will not realise the controller’s design potential.

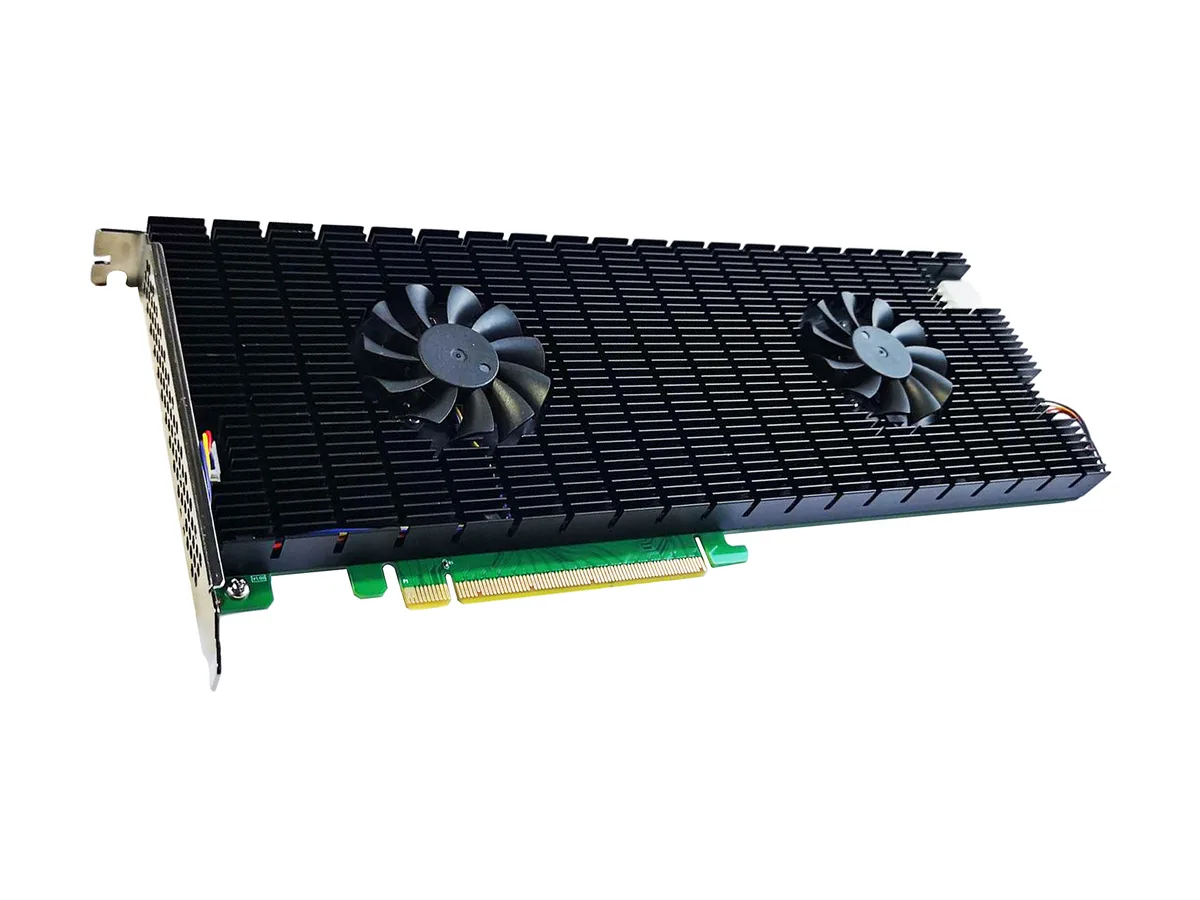

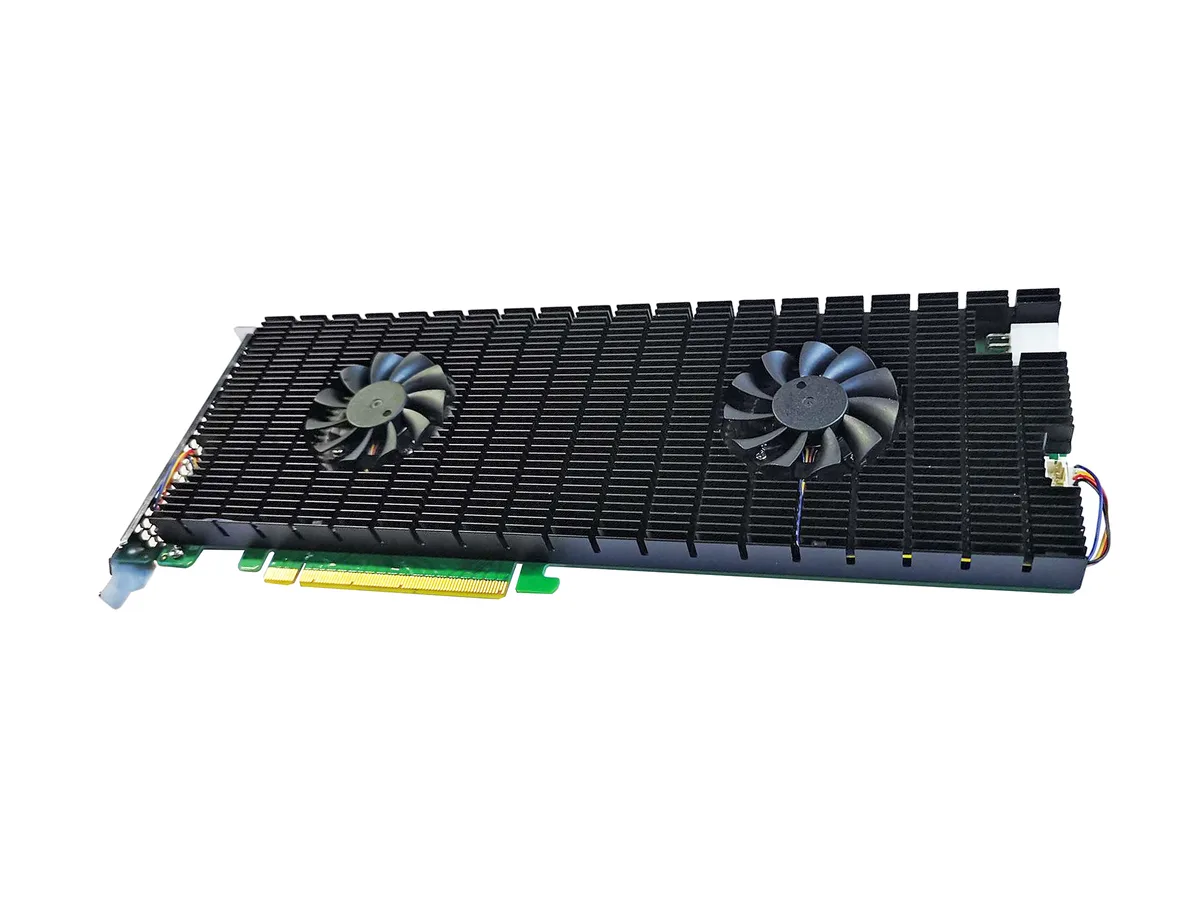

Low-noise hyper-cooling solution

An integrated low-noise hyper-cooling solution manages thermals for the switch chipset and all eight installed SSDs under sustained workloads. The cooling assembly is designed to operate quietly in typical workstation and rack environments while keeping drive temperatures within safe limits. Power draw scales with the number and model of NVMe drives fitted; the card itself adds only the controller and switching overhead.

Highlights

  • Supports up to 64TB total storage capacity
  • PCIe 4.0 x16 interface enables 28000MB/s transfer speed
  • Eight independent M.2 2280 ports for NVMe SSDs
  • Low-noise hyper-cooling keeps drives at safe temperatures
  • Integrated TBW and temperature monitoring protects data

Specifications

BrandHighPoint
Series7500 Series
ModelSSD7540
TypePCI-Express
Internal Connectors8 x M.2
InterfacePCI-Express 4.0 x16
SSD Form FactorM.2 2280
RAIDRAID Support: Single, RAID 0, 1, 1/0
TRIM RAID Support: Single, RAID 0, 1, 1/0
Dimensions11.22" x 4.37" x 0.83"
Operating Systems SupportedWindows 10, Windows Server 2016 or later
Linux Kernel 3.10 or later
macOS 10.13 or later
FeaturesDedicated PCIe 4.0 x16 direct to CPU NVMe RAID Solutions
Truly Platform Independent
Up to 8 M.2 NVMe PCIe 4.0 SSD’s
PCIe Gen 3 Compatible
Up to 64TB of storage capacity
Low-Noise Hyper-Cooling Solution
Integrated SSD TBW and temperature monitoring capability
Package Contents1 x SSD7540
1 x Quick Installation Guide
Shipping weight1.36 kg
Package size330 × 152 × 76 mm

Questions about this item

What transfer speed can the 28,000MB/s figure deliver inside a working system?

The card's NVMe RAID engine is rated for up to 28,000MB/s across eight M.2 NVMe SSDs when installed in a PCIe 4.0 x16 slot, with actual throughput depending on the drives and workload.

What does the PCIe 4.0 x16 interface limit in practice?

The PCIe 4.0 x16 link sets the maximum bandwidth ceiling for all eight M.2 ports combined and the card will fall back to PCIe 3.0 speeds if the host slot only supports Gen 3.

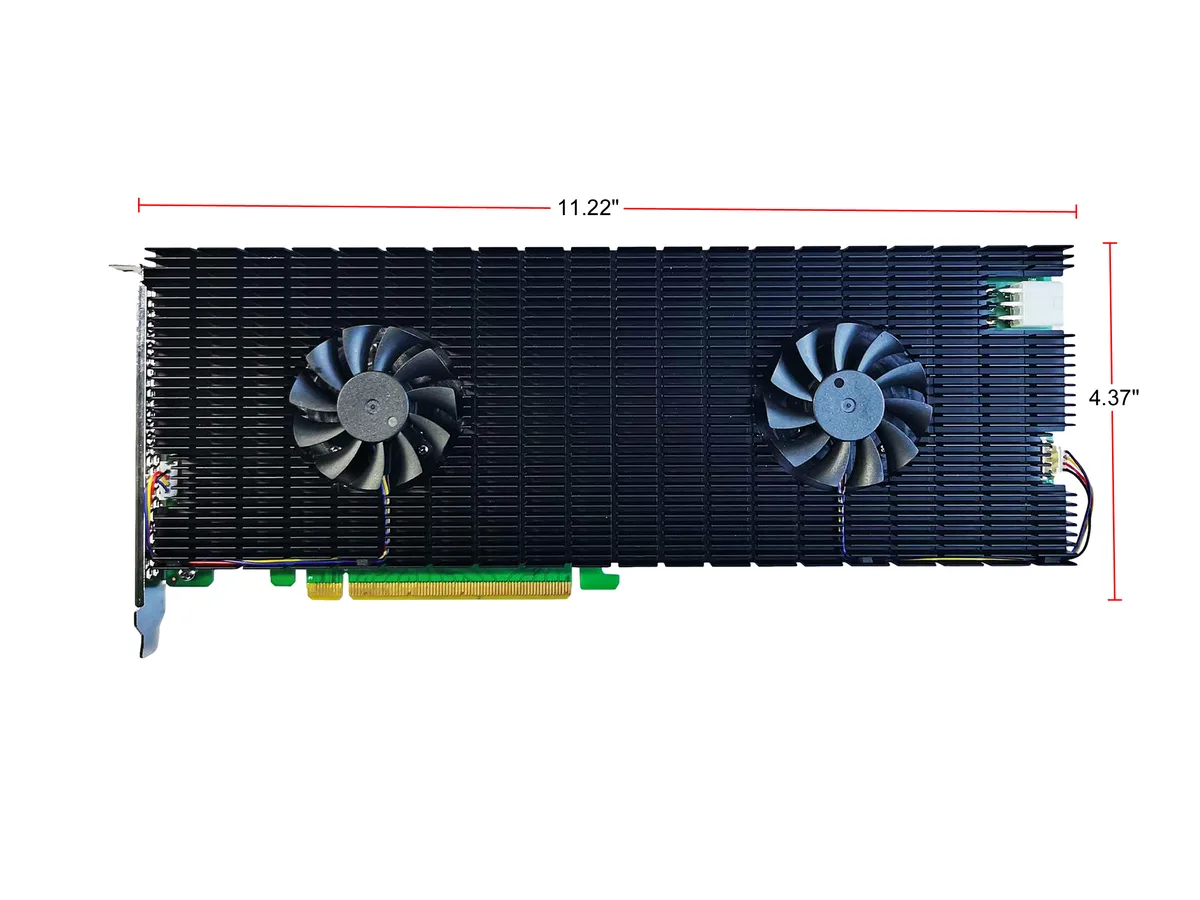

What space and slot does the 11.22" x 4.37" x 0.83" card need to fit?

It requires a full-height PCIe x16 slot and enough chassis clearance for a 11.22-inch long, 4.37-inch tall, 0.83-inch thick board with its low-noise hyper-cooling solution.
