HighPoint Technologies, Inc.
HighPoint Technologies, Inc. SSD7505 PCIe 4.0 x16 4-Channel M.2 RAID controller
Adds four M.2 NVMe drives via a PCIe 4.0 x16 slot with RAID 0, 1, 10 and single-disk modes
- TypePCI-Express
- External Connectors4 x M.2
- InterfacePCI-Express 4.0 x16
- Transfer Rate16GT / 16Gbps per lane
- RAIDSingle (single-disk), RAID 0, 1, 1/0
- Dimensions7.68" x 4.41" x 0.75"
- Four M.2 drives connect at PCIe 4.0 x16 speed
- RAID 0, 1 and 10 protect or accelerate NVMe storage
- Browser, CLI and API tools manage arrays remotely
- Email alerts and buzzer warn of drive health issues
- PCIe 3.0 compatible for flexible platform deployment
Four-Channel NVMe RAID Controller

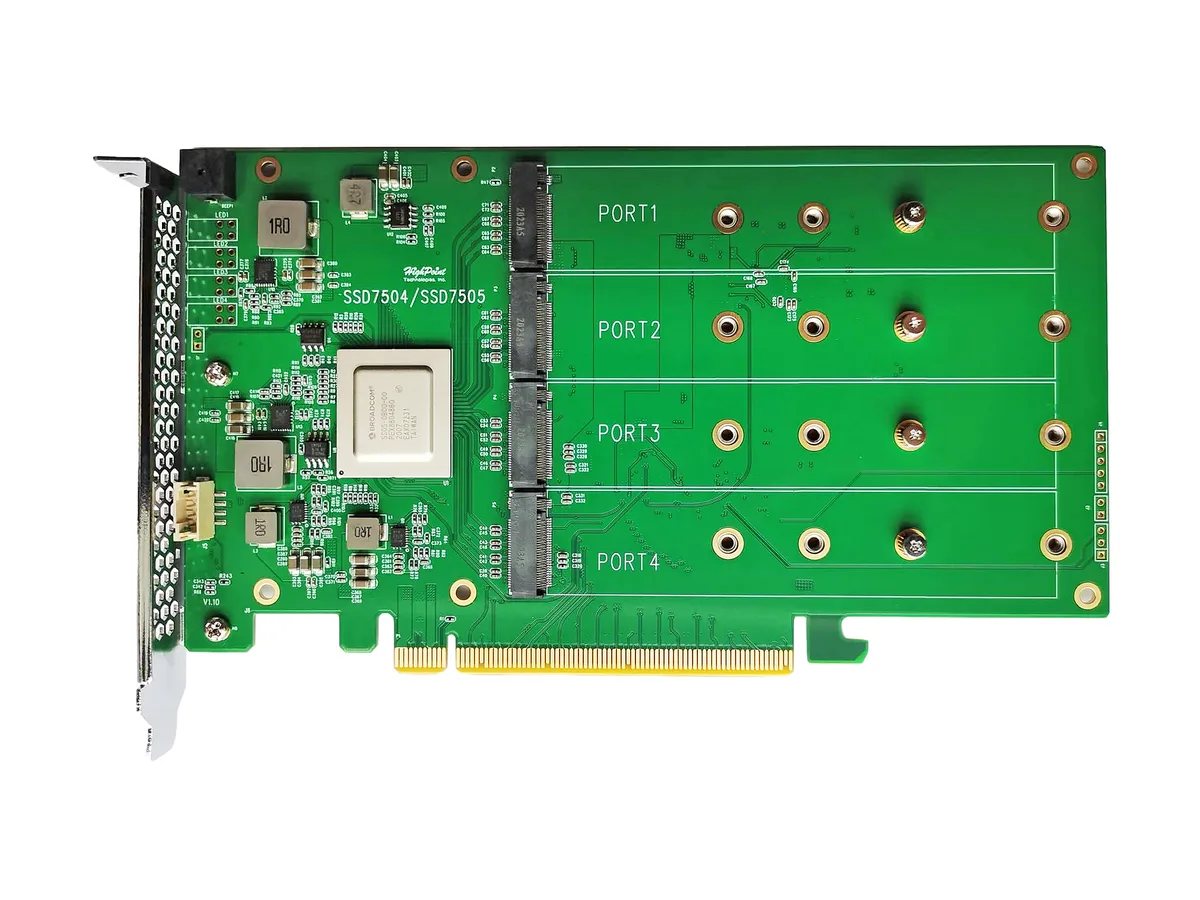

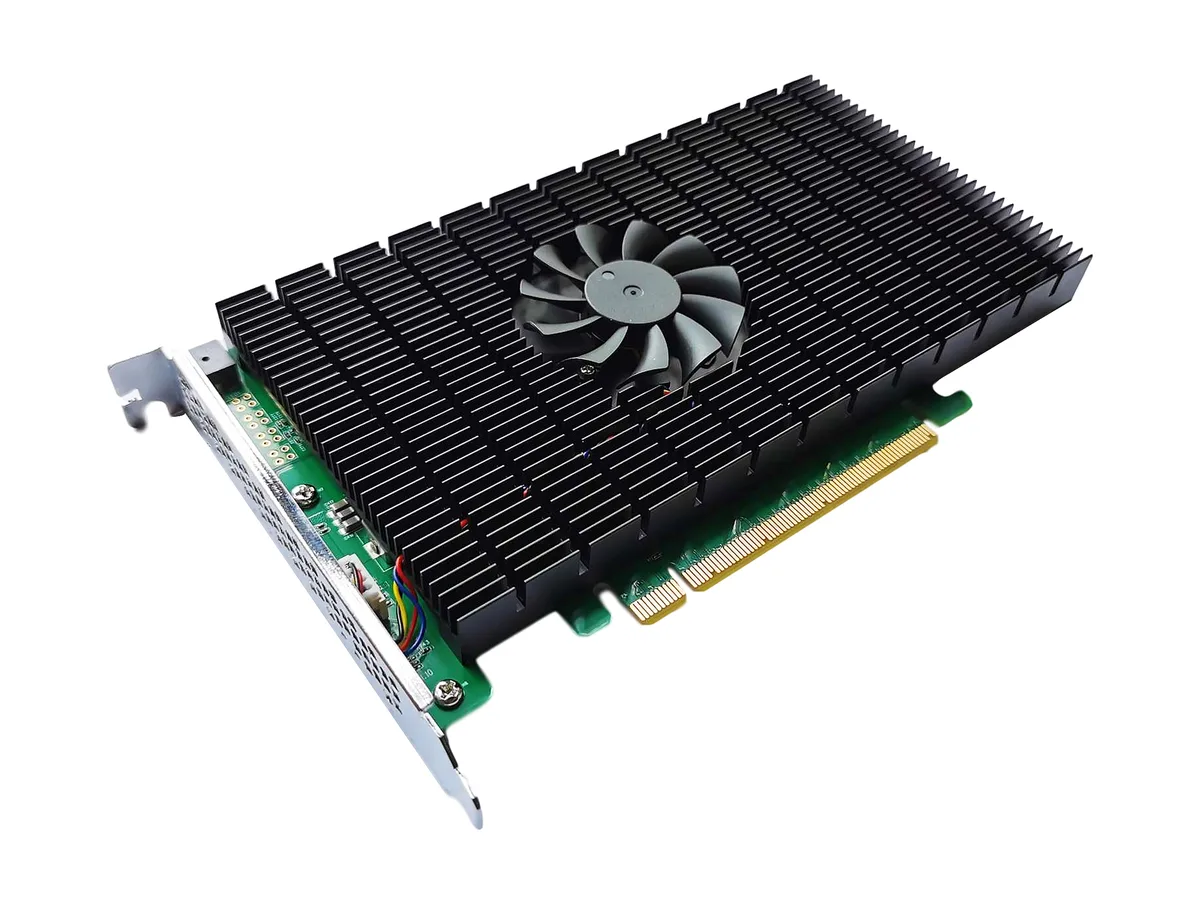

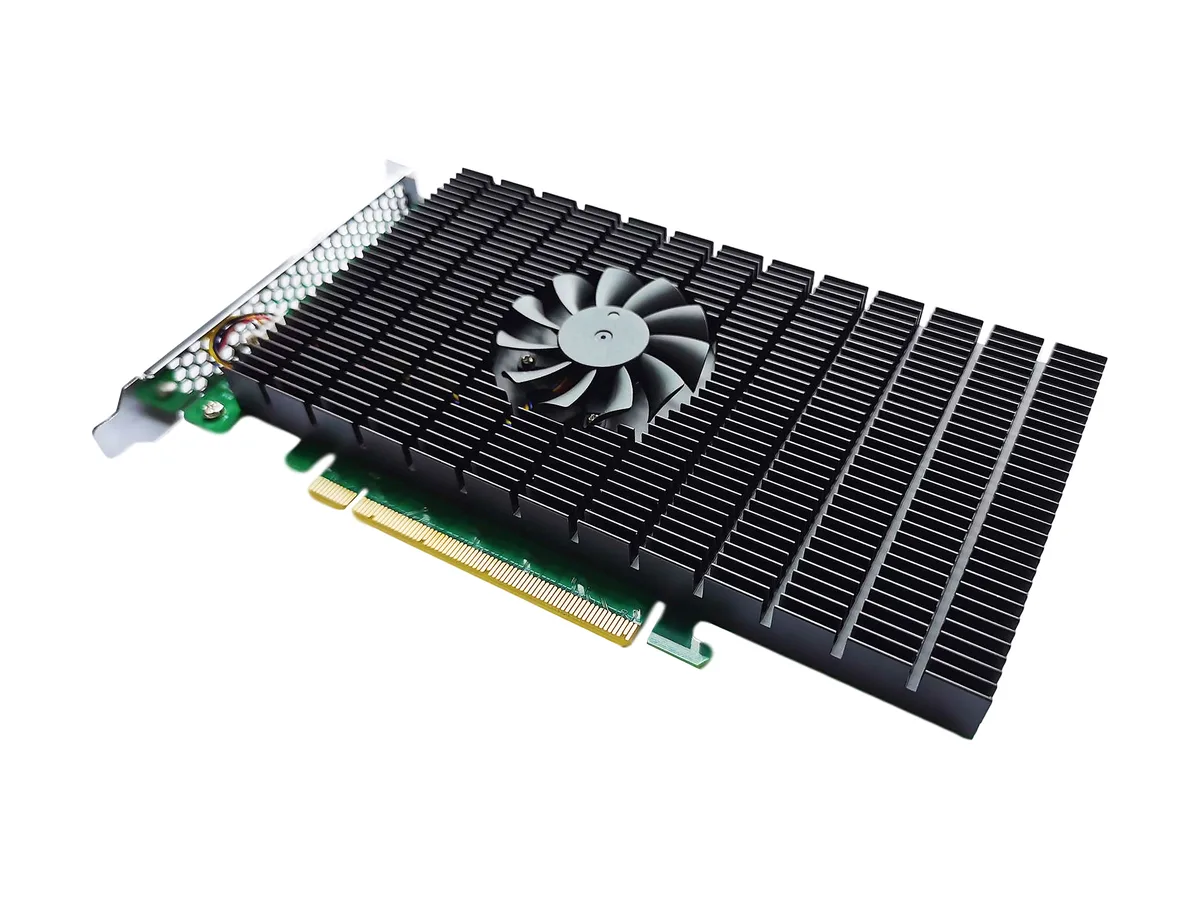

The HighPoint SSD7505 is a PCIe 4.0 x16 add-in card that provides four M.2 slots for NVMe drives. It supports single-disk, RAID 0, RAID 1 and RAID 1/0 configurations with up to 32TB total capacity per controller. The card includes a low-noise hyper-cooling solution and operates in x16, x8 or x4 electrical modes.
Platform-Independent Storage Expansion
Suits builders who need to add four NVMe drives to a workstation or server without relying on chipset lanes or specific CPU features. Management is handled through a browser-based suite, scriptable CLI and API, with SMTP email alerts and an onboard buzzer for drive health warnings. Not for systems that lack a PCIe 4.0 x16 slot or cannot supply enough power for four high-end NVMe drives simultaneously.
PCIe 4.0 x16 Interface Determines Throughput
The x16 electrical connection delivers 16GT/s per lane, providing the aggregate bandwidth required for four PCIe 4.0 NVMe drives to operate at full speed. If the host slot negotiates at PCIe 3.0 or with fewer lanes, maximum drive performance will be reduced accordingly. Verify slot wiring and bifurcation support before purchase.
Highlights
- Four M.2 drives connect at PCIe 4.0 x16 speed
- RAID 0, 1 and 10 protect or accelerate NVMe storage
- Browser, CLI and API tools manage arrays remotely
- Email alerts and buzzer warn of drive health issues
- PCIe 3.0 compatible for flexible platform deployment
Specifications
| Brand | HighPoint |
|---|---|
| Model | SSD7505 |
| Type | PCI-Express |
| External Connectors | 4 x M.2 |
| Interface | PCI-Express 4.0 x16 |
| Transfer Rate | 16GT / 16Gbps per lane |
| RAID | Single (single-disk), RAID 0, 1, 1/0 |
| Dimensions | 7.68" x 4.41" x 0.75" |
| Features | Management Suites - Browser-Based management tool - CLI (Command Line Interface- scriptable configuration tool) - API package SMTP Email Alert Notification Alarm Buzzer Storage Health Inspector NVMe SMART status Automatic and configurable RAID Rebuilding Priority Auto resume incomplete rebuilding after Single-RAID or Multi-RAID Arrays per Controller |
| Package Contents | SSD7505 QIG |
| Shipping weight | 0.45 kg |
| Package size | 335 × 196 × 69 mm |
Questions about this item
What does the PCIe 4.0 x16 interface mean for throughput when four M.2 drives are installed?
The controller provides 16GT/s per lane across 16 lanes, giving each of the four M.2 slots a full x4 link so all drives can run at Gen 4 speeds simultaneously.
Which RAID levels does the SSD7505 support for the connected M.2 drives?
The card supports single-disk, RAID 0, RAID 1 and RAID 10 across the four M.2 slots, with automatic and configurable rebuild priority.
What are the physical dimensions of the card and will it fit a standard full-height PCIe slot?

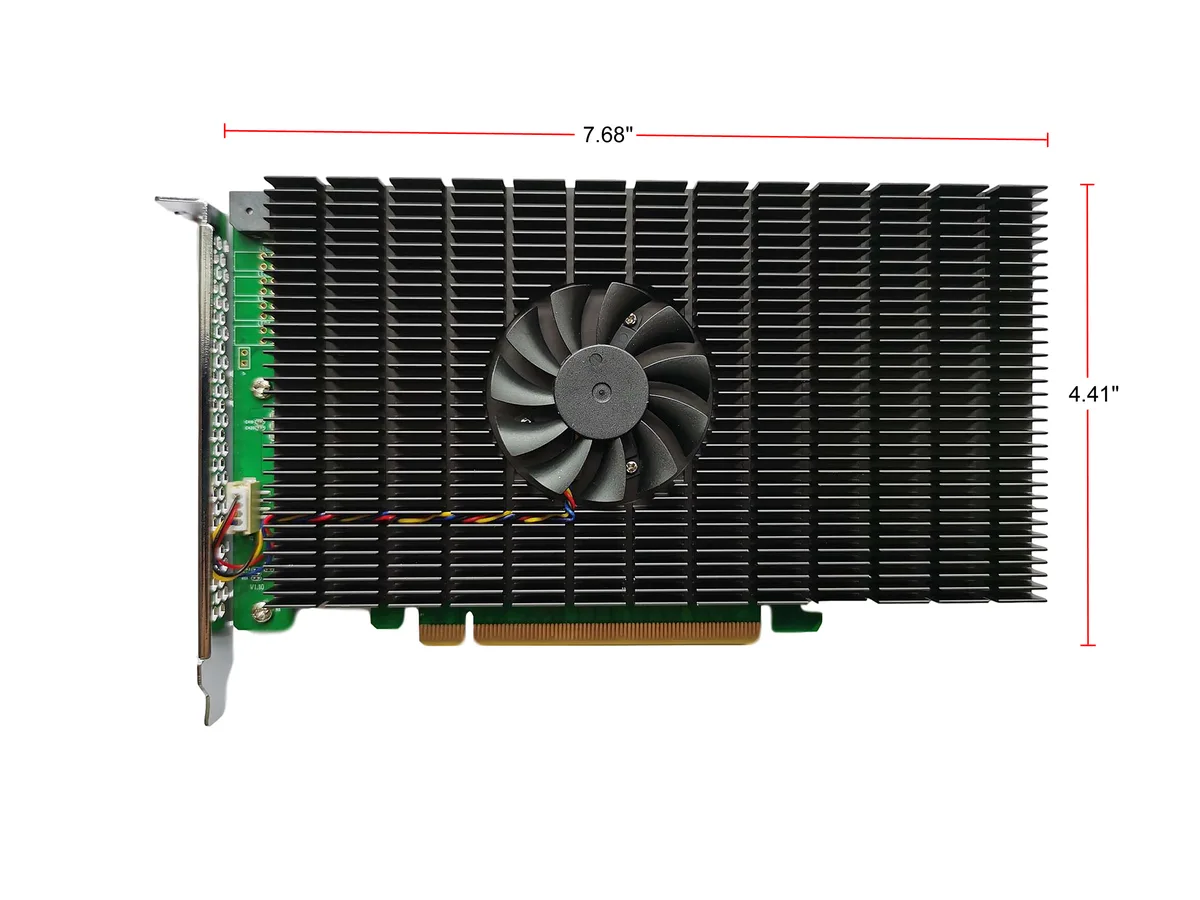

The board measures 7.68" x 4.41" x .75", matching a standard full-height, full-length PCIe add-in card form factor.
