HighPoint Technologies, Inc.
HighPoint Technologies, Inc. SSD7101A-1 RAID controller PCIe 3.0 x16 4 x 32 Gbps M.2 ports
Adds four dedicated PCIe 3.0 x4 NVMe M.2 ports over a single x16 slot for secondary storage
- Form FactorFull-Height
- TypeOthers
- InterfacePCI-Express 3.0 x16
- Operating Systems SupportedWindows 10, Windows Server 2012 R2 or later Linux Kernel 3.3
- Dimensions5.00" x 8.39" x 0.85"
- Windows VistaWindows 10 64-bit Linux Kernel 3.3 or later
- Dedicated PCIe 3.0 x16 bandwidth eliminates bottlenecks for four NVMe SSDs
- Each M.2 port receives full PCIe 3.0 x4 lanes for maximum throughput
- Transfer speeds exceed 12000 MB/s for professional media workloads
- Supports Windows 10, Linux Kernel 3.3+ and macOS 10.13+ out of the box
- Full-height card fits standard PCIe 3.0 x16 slots with 5.00" x 8.39" dimensions
PCIe 3.0 x16 RAID controller with four M.2 ports

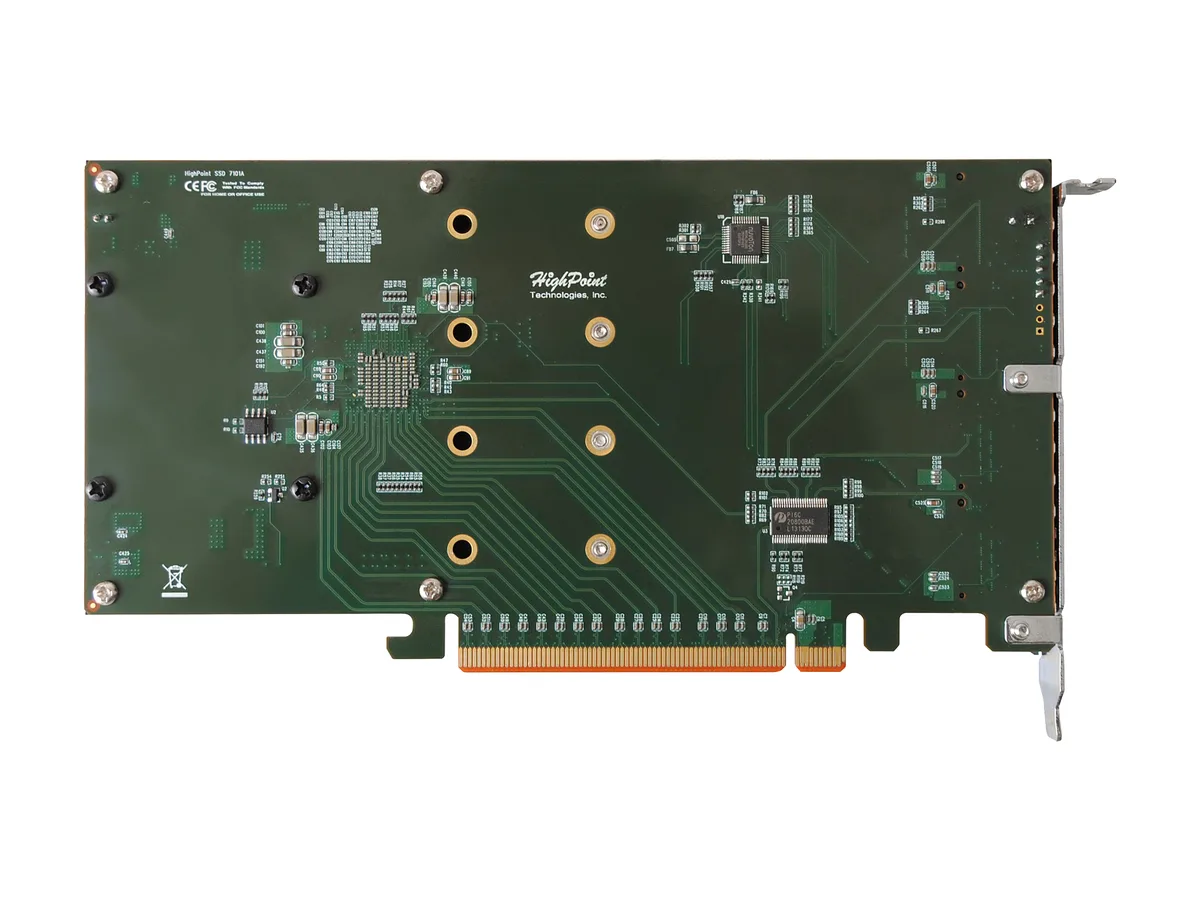

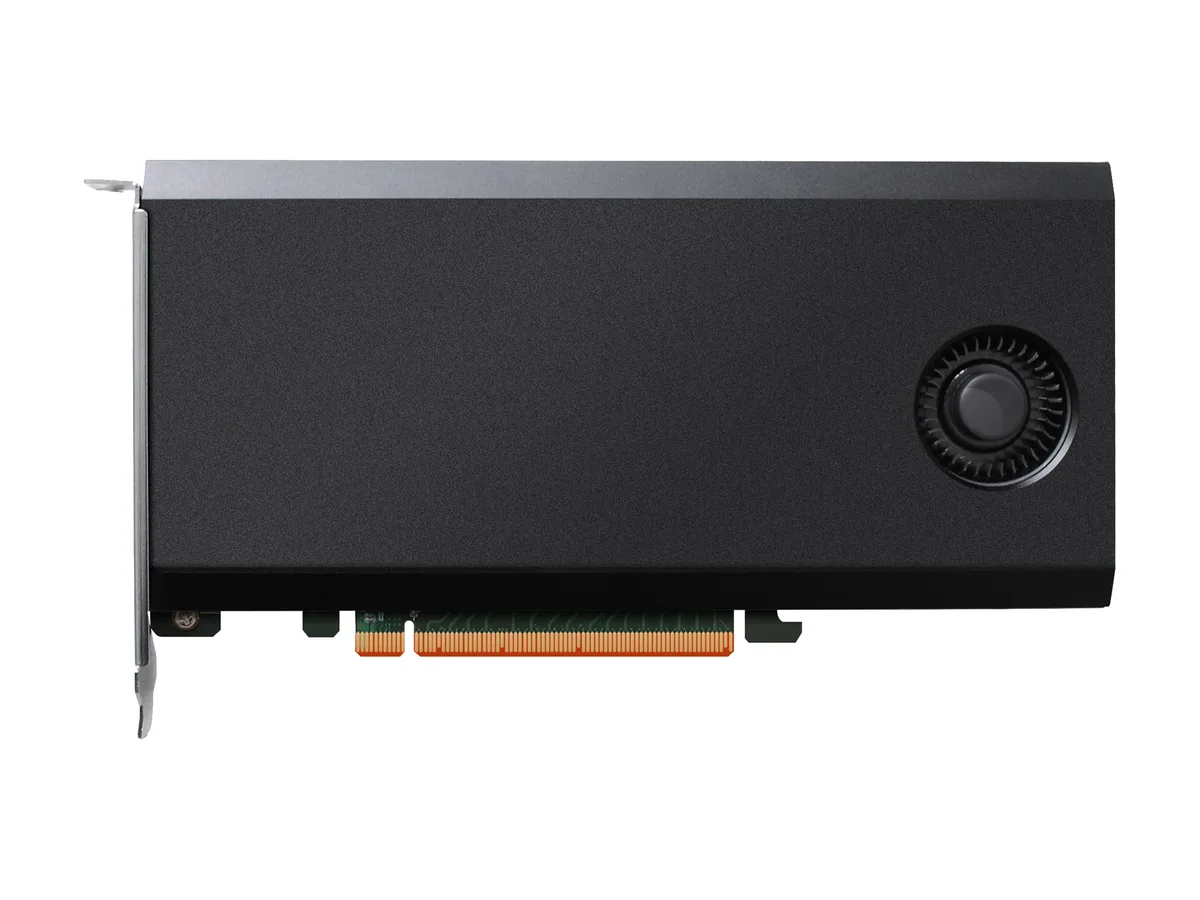

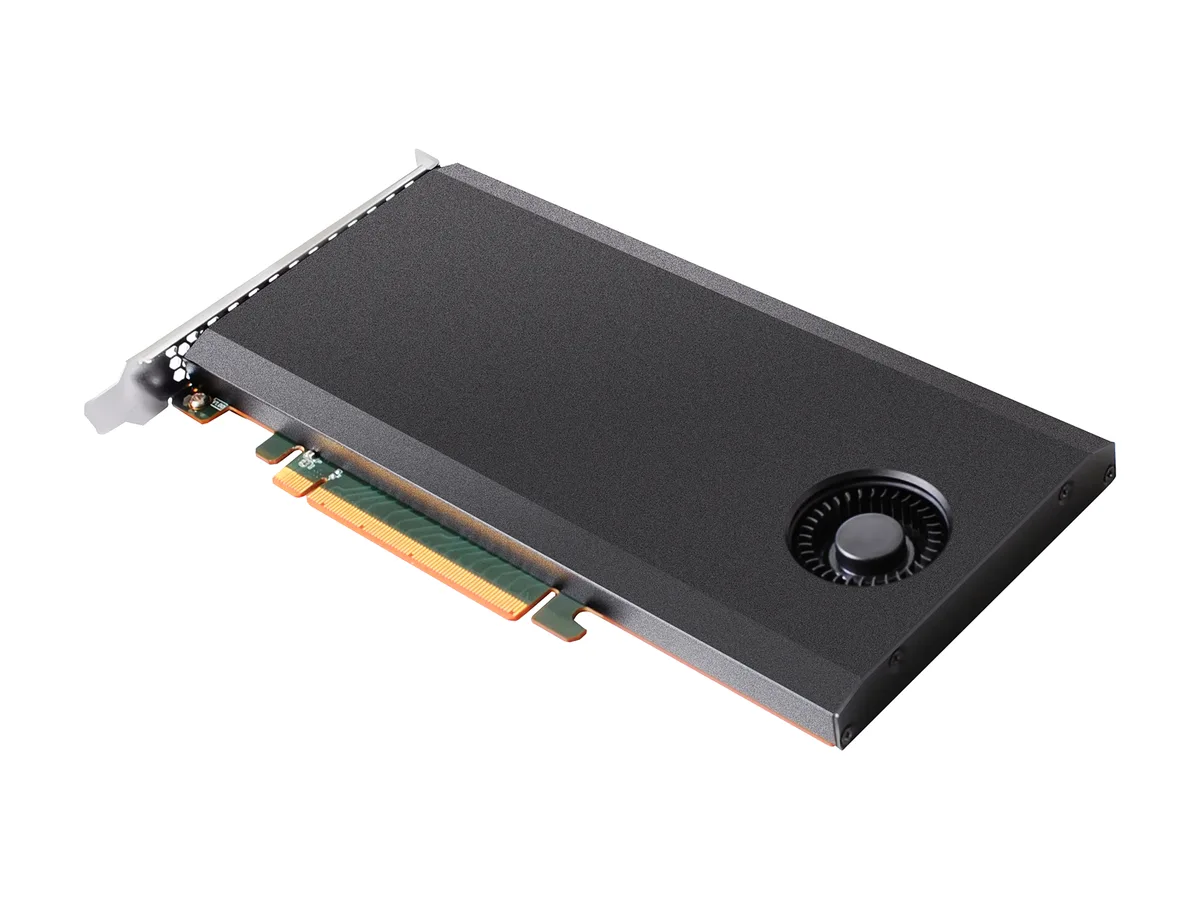

The HighPoint SSD7101A-1 is a full-height PCIe 3.0 x16 RAID controller that provides four dedicated M.2 NVMe ports. Each port delivers PCIe 3.0 x4 bandwidth for up to 32 Gbps of throughput per drive. The card connects to a true PCIe 3.0 x16 slot and operates independently of the platform chipset.
Workstations needing high-throughput secondary
This controller suits professional media workstations that require accelerated secondary storage for heavy GPU workloads. It supports Windows 10, Windows Server 2012 R2 or later, Linux kernel 3.3 or later and macOS 10.13 or later. Builders without a true PCIe 3.0 x16 slot or who need integrated RAID management software should consider other solutions.
Four dedicated PCIe 3.0 x4 M.2 NVMe ports
The single specification that determines compatibility is the requirement for a true PCIe 3.0 x16 slot to provide dedicated x4 bandwidth to each of the four M.2 ports. Without that slot the card cannot deliver the 12000 MB/s transfer speed or the 20x SATA SSD performance advantage described in the specifications.
Highlights
- Dedicated PCIe 3.0 x16 bandwidth eliminates bottlenecks for four NVMe SSDs
- Each M.2 port receives full PCIe 3.0 x4 lanes for maximum throughput
- Transfer speeds exceed 12000 MB/s for professional media workloads
- Supports Windows 10, Linux Kernel 3.3+ and macOS 10.13+ out of the box
- Full-height card fits standard PCIe 3.0 x16 slots with 5.00" x 8.39" dimensions
Specifications
| Brand | HighPoint |
|---|---|
| Model | SSD7101A-1 |
| Form Factor | Full-Height |
| Type | Others |
| Interface | PCI-Express 3.0 x16 |
| Operating Systems Supported | Windows 10, Windows Server 2012 R2 or later Linux Kernel 3.3 or later macOS 10.13 or later |
| Dimensions | 5.00" x 8.39" x 0.85" |
| Windows Vista | Windows 10 64-bit Linux Kernel 3.3 or later |
| Features | Dedicated PCIe 3.0 x16 bus bandwidth Dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD Over 8x faster than NVMe storage locked behind Intel DMI 3.0 Independent, Stand-Alone NVMe SSD Solution Scale Performance across Multiple SSD7101A-1 NVMe RAID Controllers Supports Windows & Linux Systems Bus Interface: PCI-Express 3.0 x16 Number of Channels / Ports: 4 x 2280 M.2 NVMe Ports (Dedicated PCIe 3.0 x4 per M.2 Port) Data Transfer Rates: 8GT / 8 Gbps per lane Number of Devices: Up to 4x M.2 NVMe SSD's (Qualified: Samsung 960EVO & Pro SSD) Form Factor: Full Height Cooling Fan: Aluminum |

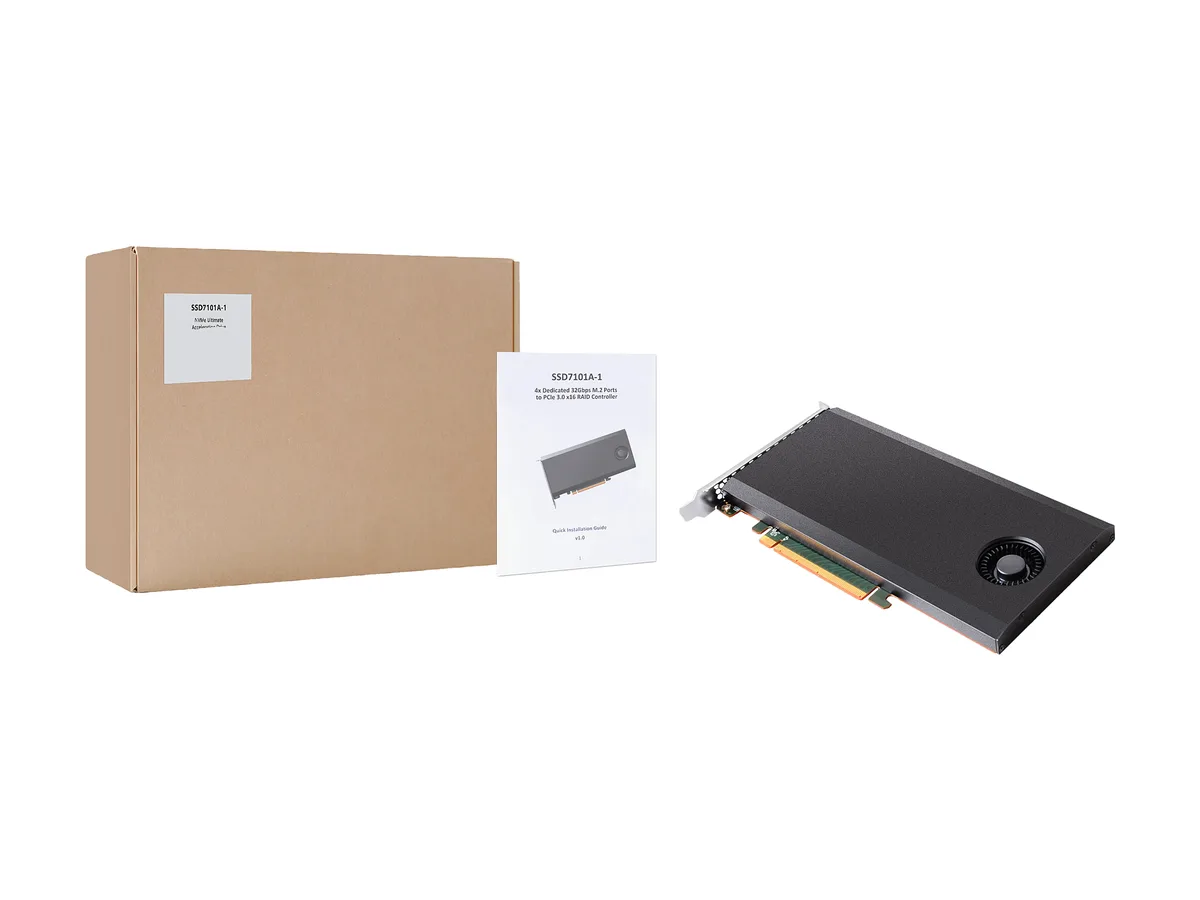

| Package Contents | 1 x SSD7101A-1 RAID Controller 1 x Quick Installation Guide |
| Shipping weight | 0.61 kg |
| Package size | 340 × 196 × 74 mm |
Questions about this item
What is the maximum sustained transfer speed this RAID controller can deliver?
The SSD7101A-1 can deliver transfer speeds over 12,000 MB/s across its four M.2 ports.
How much power does the card draw and does it need active cooling?
The controller is a full-height PCIe 3.0 x16 card with no onboard fan; it relies on chassis airflow for cooling.
Which operating systems are supported without additional drivers?
Windows 10 64-bit, Windows Server 2012 R2 or later, Linux kernel 3.3 or later, and macOS 10.13 or later.
