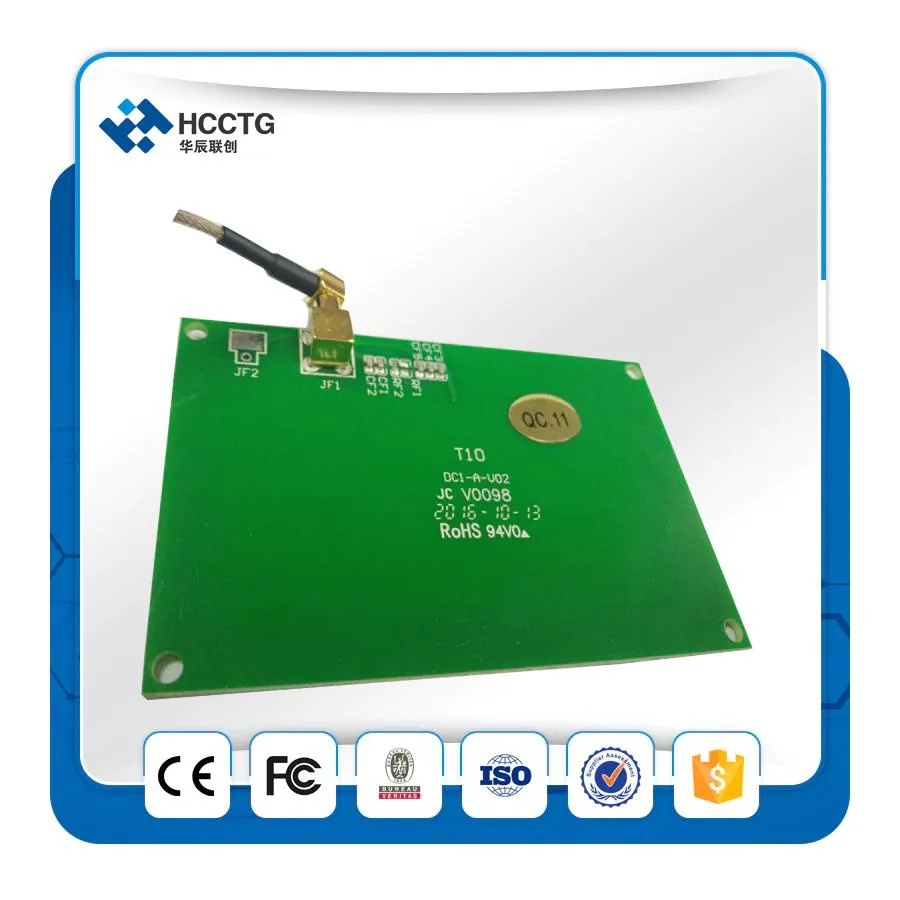

Compact rectangular card reader module with detachable antenna and multiple card slots

Hetai Tech

Hetai Tech HCC-T10-DC1 8-in-1 Card Reader

SKU CH-97HK-CHWN9

An 8-in-1 reader module handling contact, contactless and magnetic-stripe cards with four SAM sockets for embedded systems

  • Type8-in-1
  • Contactless and contact cards read in one module
  • ISO 14443 Type A and B support included
  • Four SAM sockets for secure applications
  • USB 2.0 HID and RS232 interfaces ready
  • Firmware upgradable for future compatibility

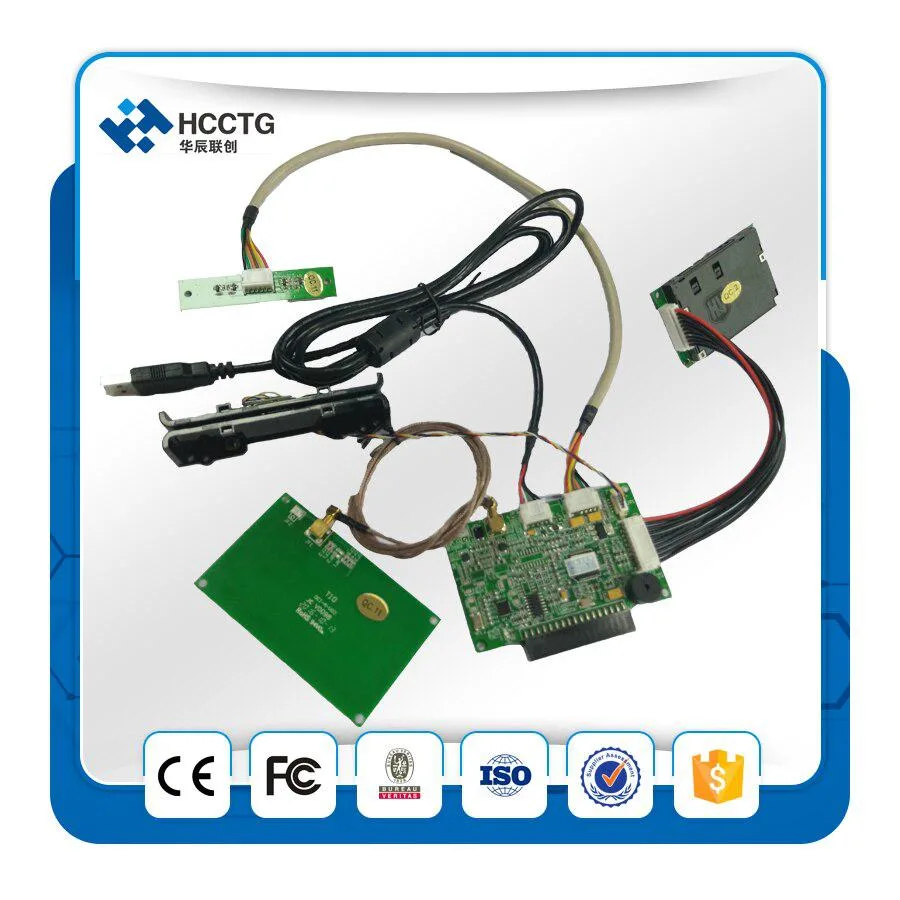

8-in-1 Card Reader Module

The Hetai Tech HCC-T10-DC1 is an 8-in-1 card reader module designed for system integrators embedding payment or access functions into kiosks, vending machines, ATMs or POS terminals. It combines contact smart card, contactless NFC and magnetic stripe interfaces in a single board with four SAM sockets. Buyers needing only a simple USB media reader for consumer memory cards should look elsewhere.

Interface Limits

The module communicates over an RS232 serial link and a USB 2.0 full-speed HID connection, so throughput is bounded by those legacy interfaces rather than modern high-speed buses. Firmware is upgradable in the field, and the device is supported on Windows XP through 10 plus Linux, but no newer OS versions are confirmed by the supplier.

ISO 7816 Voltage Classes

The contact smart card interface accepts Class A, B and C cards operating at 5 V, 3 V and 1.8 V, making this voltage range the decisive factor for compatibility with the target smart card population.

Highlights

  • Contactless and contact cards read in one module
  • ISO 14443 Type A and B support included
  • Four SAM sockets for secure applications
  • USB 2.0 HID and RS232 interfaces ready
  • Firmware upgradable for future compatibility

Specifications

Type8-in-1

Questions about this item

Which version of the HCC-T10-DC module matches my card types?

The HCC-T10-DC1 supports contact CPU cards with ISO7816 T=0 or T=1 protocol, contactless cards compliant with ISO14443 Type A and B, and magnetic stripe cards on up to three tracks.

What does 2.0 full speed HID mean when the reader is installed in a kiosk?

The USB 2.0 full speed HID interface lets the module appear as a standard human-interface device, so the host system needs no custom driver for basic operation.

How does the RS232 interface limit integration in a vending machine?

The RS232 port provides a serial link for embedded control boards; cable length and baud rate will be constrained by the RS232 standard and the host UART.
