Hetai Tech 8-in-1 Front Panel Card Reader USB 3.0 eSATA SATA Audio

8-in-1 Front Panel Card Reader

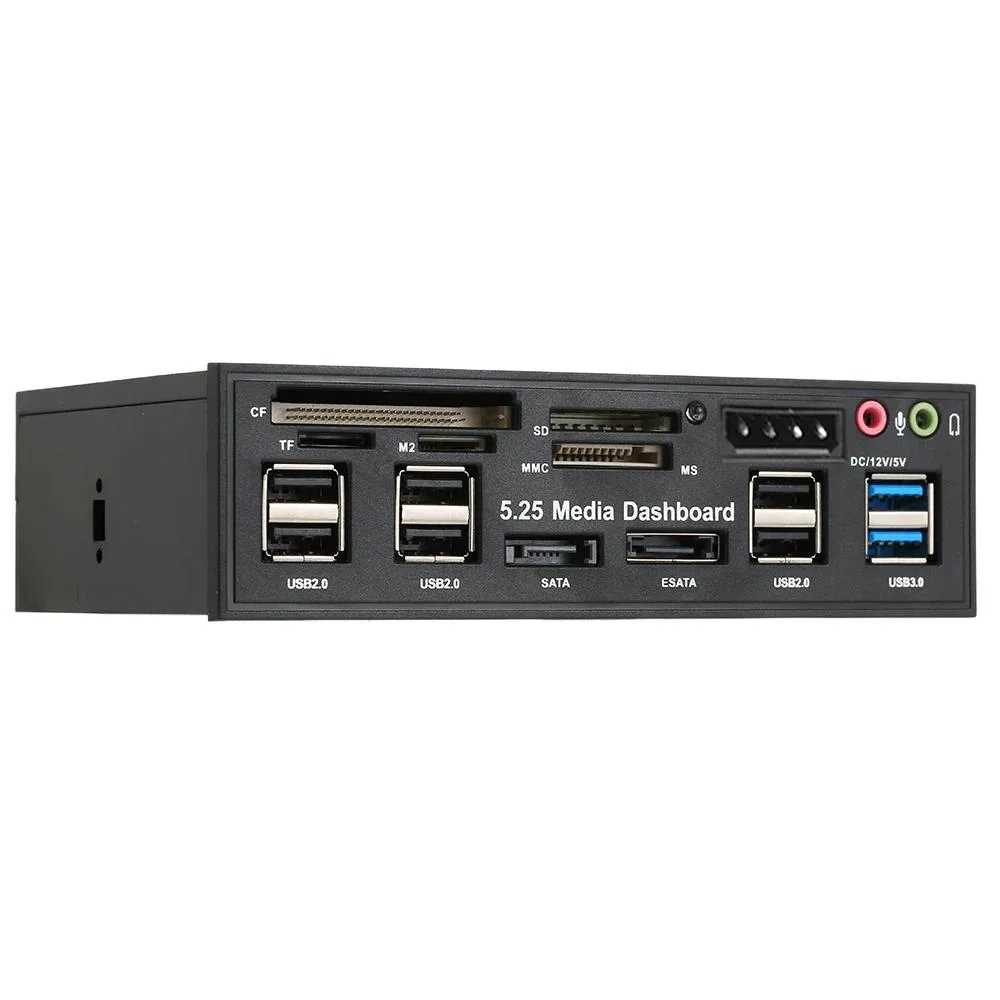

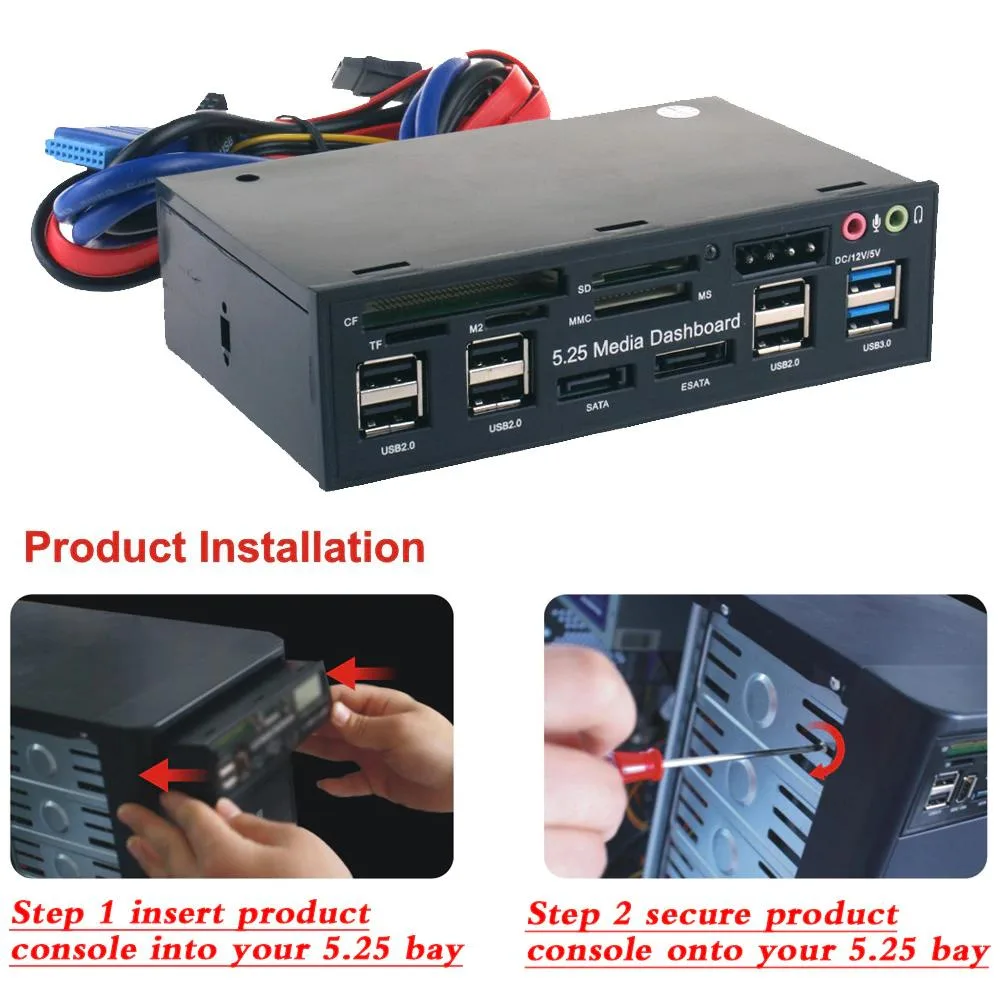

This internal front panel adds an 8-in-1 card reader, dual USB 3.0 ports, eSATA, SATA and audio jacks to a desktop PC. It supports SD, CF, TF, M2 and MMC/MS cards for quick media access. The unit fits a standard 5.25 inch drive bay and connects to internal motherboard headers. It is aimed at builders who want front-access connectivity without reaching behind the case.

Check motherboard headers

Verify that the board provides a USB 3.0 header for the front ports and an HD audio header for the microphone and speaker jacks. An available SATA port is needed for the internal SATA connection and an eSATA bracket or port for the external link. Ensure the chassis has a free 5.25 inch bay and enough cable length to reach the headers. Systems lacking these headers cannot use the corresponding functions.

Provides front media access and frees rear ports

The panel routes card slots, two USB 3.0 ports, eSATA, SATA and audio to the front, leaving rear I/O less crowded. It draws power from the motherboard headers so no extra PSU cables are required. Backward compatibility with USB 2.0 and 1.1 lets older peripherals work alongside newer ones. Builders needing internal drive bays for optical drives or extra storage should note this occupies one 5.25 inch slot.
