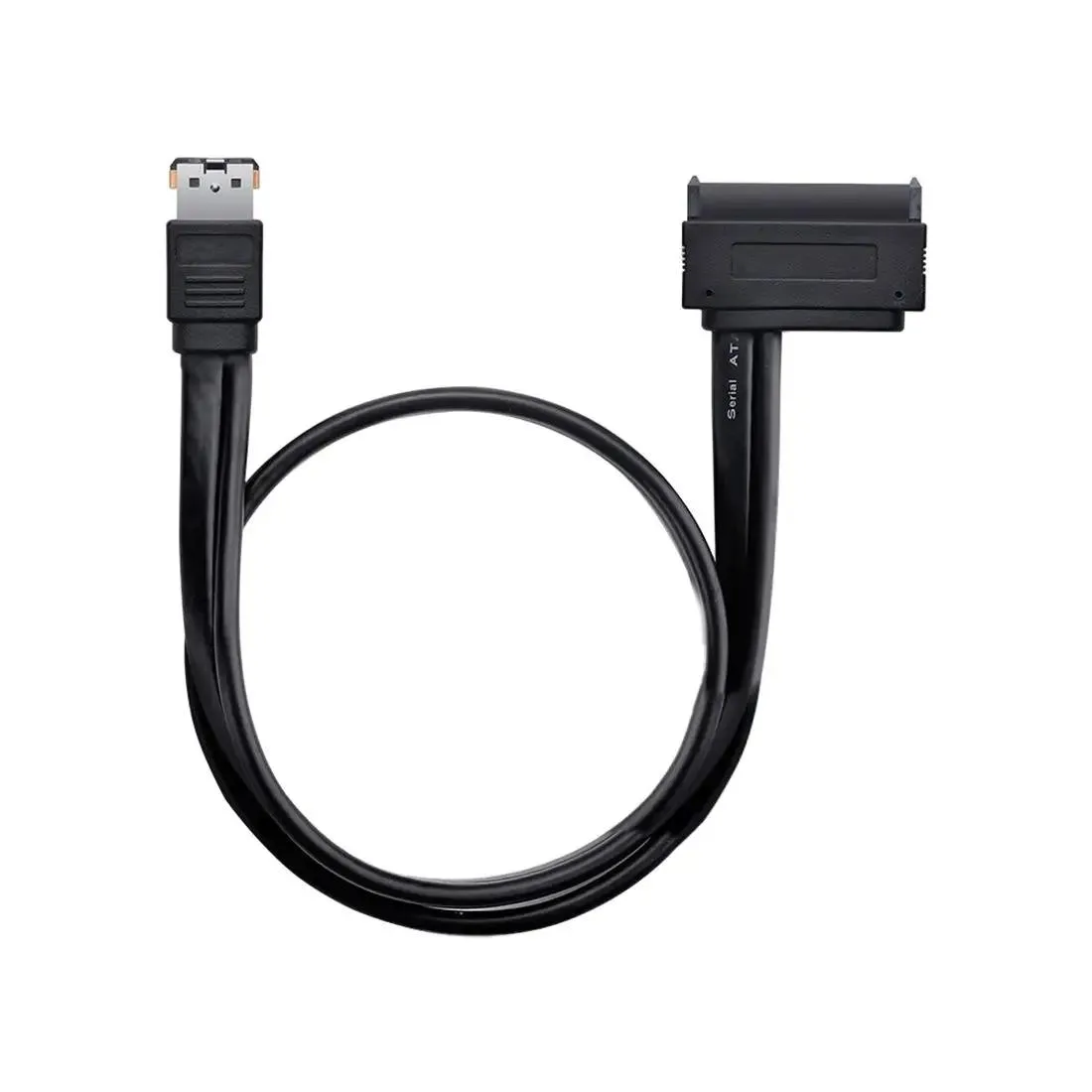

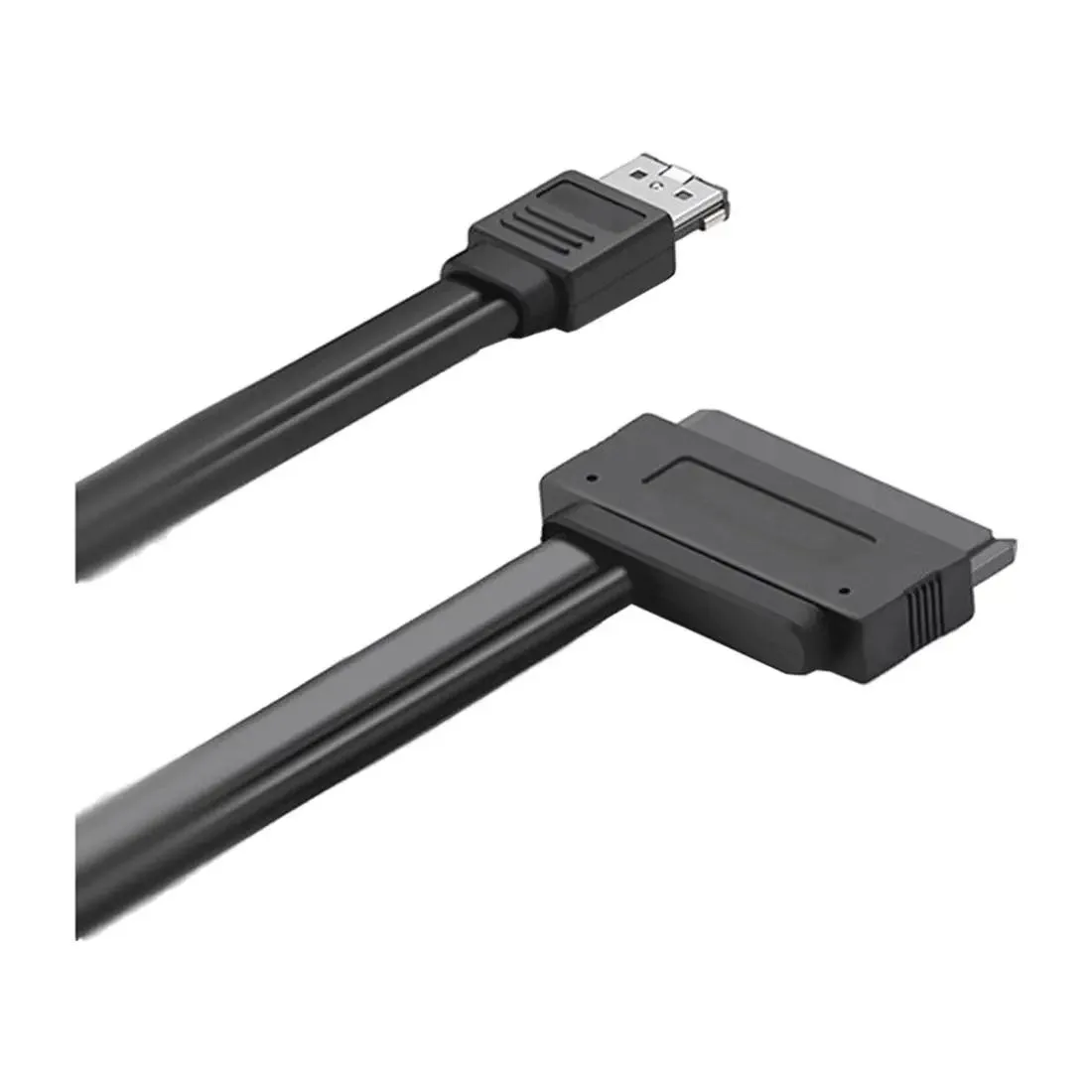

Black 50cm cable with eSATA USB combo plug and 22-pin SATA connector

HETAI Digital Technology Co.,Ltd

HETAI Digital Technology Co.,Ltd eSATA USB Combo to SATA 22-pin cable 50cm

SKU CH-NMMM-CSKJE

Connects 2.5 or 3.5 SATA drives to an eSATAp port with 5 V or 12 V power via 22-pin 7+15 connector on 50 cm cable

  • Connector TypeMicro USB to USB A
  • Connect 2.5 or 3.5 inch SATA drives externally via eSATAp port
  • Power 3.5 inch HDDs directly from 12 V eSATAp port contacts
  • Run 2.5 inch HDDs from 5 V eSATAp port without extra adapter
  • Full eSATA data transfer speeds over 50 cm cable length
  • 22-pin combo connector handles both 7-pin data and 15-pin power

Connects SATA drives to eSATA USB combo ports

This cable links a 2.5 inch or 3.5 inch SATA hard drive to a notebook or PC equipped with an eSATA USB combo port. It carries both data and power through a single 50cm assembly. The 22-pin connector combines the 7-pin data and 15-pin power interfaces. No separate power supply is needed when the host port delivers 12 V.

Suits users with an eSATAp port needing external

It works for technicians recovering data from bare drives or anyone adding temporary storage through an eSATAp connection. The cable draws 5 V or 12 V directly from the port, so a 2.5 inch drive runs on 5 V while a 3.5 inch drive requires the 12 V supply. Not for systems that lack an eSATA USB combo port, or for drives that require a different interface.

22-pin SATA connector carries data

The single 22-pin plug merges the standard 7-pin data segment and the 15-pin power segment into one connection. This matches the drive's native interface exactly. The host side uses an eSATA USB combo male plug that fits the combined port. Cable length is 50cm.

Highlights

  • Connect 2.5 or 3.5 inch SATA drives externally via eSATAp port
  • Power 3.5 inch HDDs directly from 12 V eSATAp port contacts
  • Run 2.5 inch HDDs from 5 V eSATAp port without extra adapter
  • Full eSATA data transfer speeds over 50 cm cable length
  • 22-pin combo connector handles both 7-pin data and 15-pin power

Specifications

Connector TypeMicro USB to USB A

Questions about this item

Does my laptop need a specific port for this cable to work?

Yes, the cable requires a free eSATAp combo port that supplies either 5 V or 12 V power.

Will the 12 V line power a 3.5-inch drive if I keep using an older desktop SATA drive?

The cable delivers 12 V from the eSATAp port, so a 3.5-inch SATA drive can run without an extra power supply.

How can I confirm the cable is transferring data at full eSATA speed after I connect a drive?

The drive should appear in the operating system and transfer files at the native eSATA rate supported by the host port.
