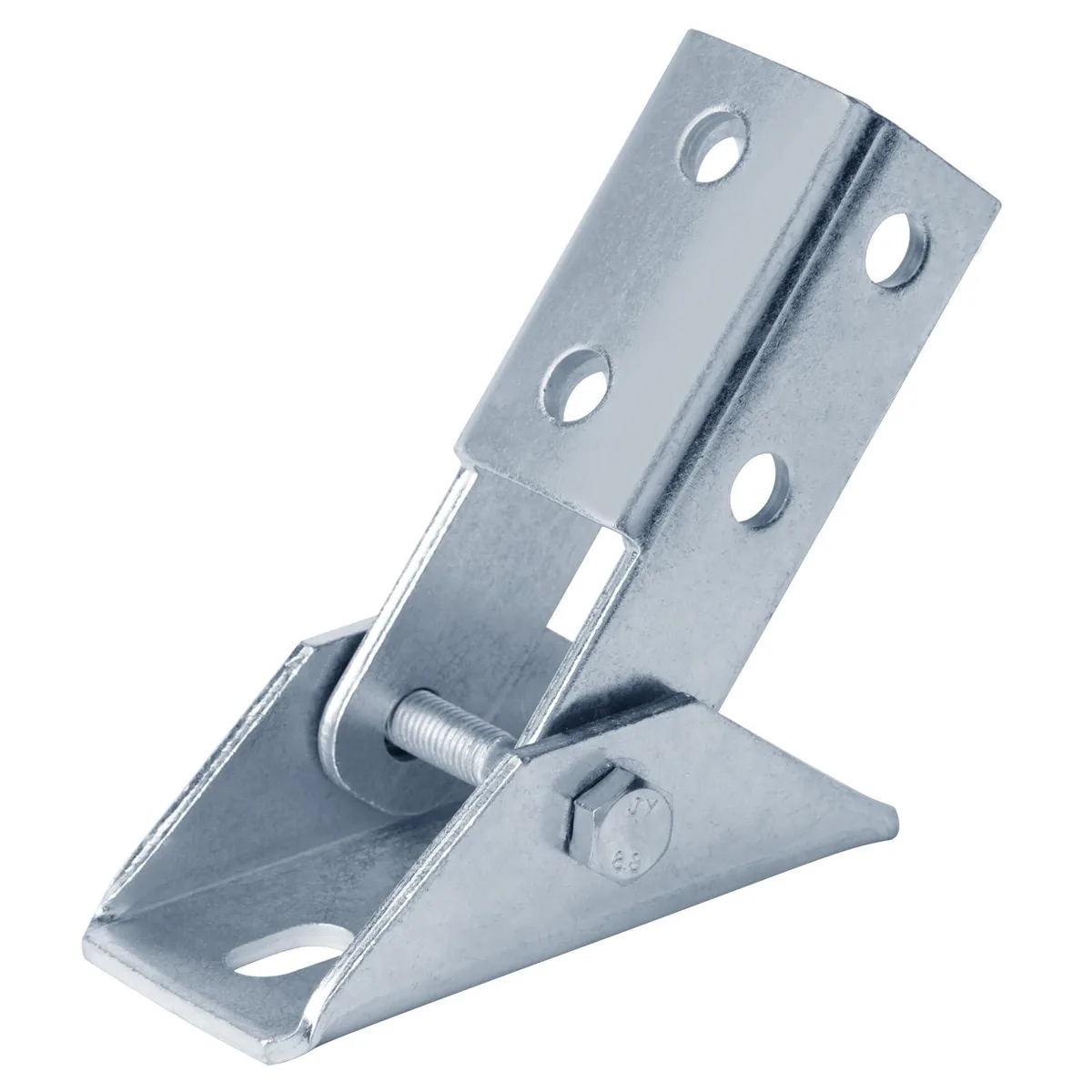

Two electro-galvanized steel adjustable angle brackets with pre-drilled holes for 1-5/8 inch strut channel

heneng ZX141-T2 adjustable angle bracket coupling 2-pack 1-5/8" channel 3/16" thick 90°

SKU CH-2W37-1EBXP MPN ZX141-T2

Two-pack of electro-galvanised steel brackets that swivel up to 90° for 1-5/8″ strut channel

  • Tube Size6 in x 1 in x 6 in
  • Thread Size6 in x 1 in x 6 in
  • Pipe Size6 in x 1 in x 6 in
  • Size/Dimensions6 in x 3.5 in x 6.5 in
  • Finishelectro-galvanized
  • Selling Unit2
  • Adjustable up to 90° for flexible solar rack builds
  • Electro-galvanized low-carbon steel resists corrosion on outdoor frames
  • Pre-drilled for 1/2″ bolts to speed up strut assembly
  • Fits 1-5/8″ channel with 3/16″ thickness for secure grip
  • Two-piece pack covers left and right mounting points

Adjustable bracket for strut channel

The heneng ZX141-T2 is a two-pack of adjustable angle brackets designed for 1-5/8 inch strut channel. Each bracket is made from low carbon steel with an electro-galvanized finish for corrosion resistance. They suit installers building solar panel racks, industrial shelving, cable tray supports or equipment frames. The fittings arrive new and ready for modular assembly.

90 degree adjustable angle

The single specification that decides fit is the adjustable angle range up to 90 degrees. Each bracket allows the upright channel to pivot within this limit, locking at the required position for angled bracing or corner joints. The inner width matches 1-5/8 inch channel with a 3/16 inch material thickness. Pre-drilled holes accept 1/2 inch bolts, which are not included in the pack.

Fits 1-5/8 inch channel systems

These brackets integrate directly into standard 1-5/8 inch strut systems, connecting to channel, post bases, wing fittings and hinge brackets listed in the assortment. The base measures 6 inches by 3.5 inches, providing a stable mounting footprint. Because bolts are not supplied, the builder must source 1/2 inch hardware separately to complete each connection.

Highlights

  • Adjustable up to 90° for flexible solar rack builds
  • Electro-galvanized low-carbon steel resists corrosion on outdoor frames
  • Pre-drilled for 1/2″ bolts to speed up strut assembly
  • Fits 1-5/8″ channel with 3/16″ thickness for secure grip
  • Two-piece pack covers left and right mounting points

Specifications

Tube Size6 in x 1 in x 6 in
Thread Size6 in x 1 in x 6 in
Pipe Size6 in x 1 in x 6 in
Size/Dimensions6 in x 3.5 in x 6.5 in
Finishelectro-galvanized
Selling Unit2
Brandheneng
ModelZX141-T2
Part NumberZX141-T2

Questions about this item

How far can the bracket swivel when installed in a 1-5/8" strut channel?

The hinge adjusts continuously up to a 90° angle, letting you set any brace position between flat and a right angle.

What bolt size do the pre-drilled holes accept for mounting the bracket?

Each hole is sized for 1/2" bolts, which are not included in the pack.

What are the overall dimensions of one bracket so I can check clearance in my frame?

Each piece measures 6 in long, 3.5 in wide and 6.5 in tall, with a 3/16" steel thickness.
