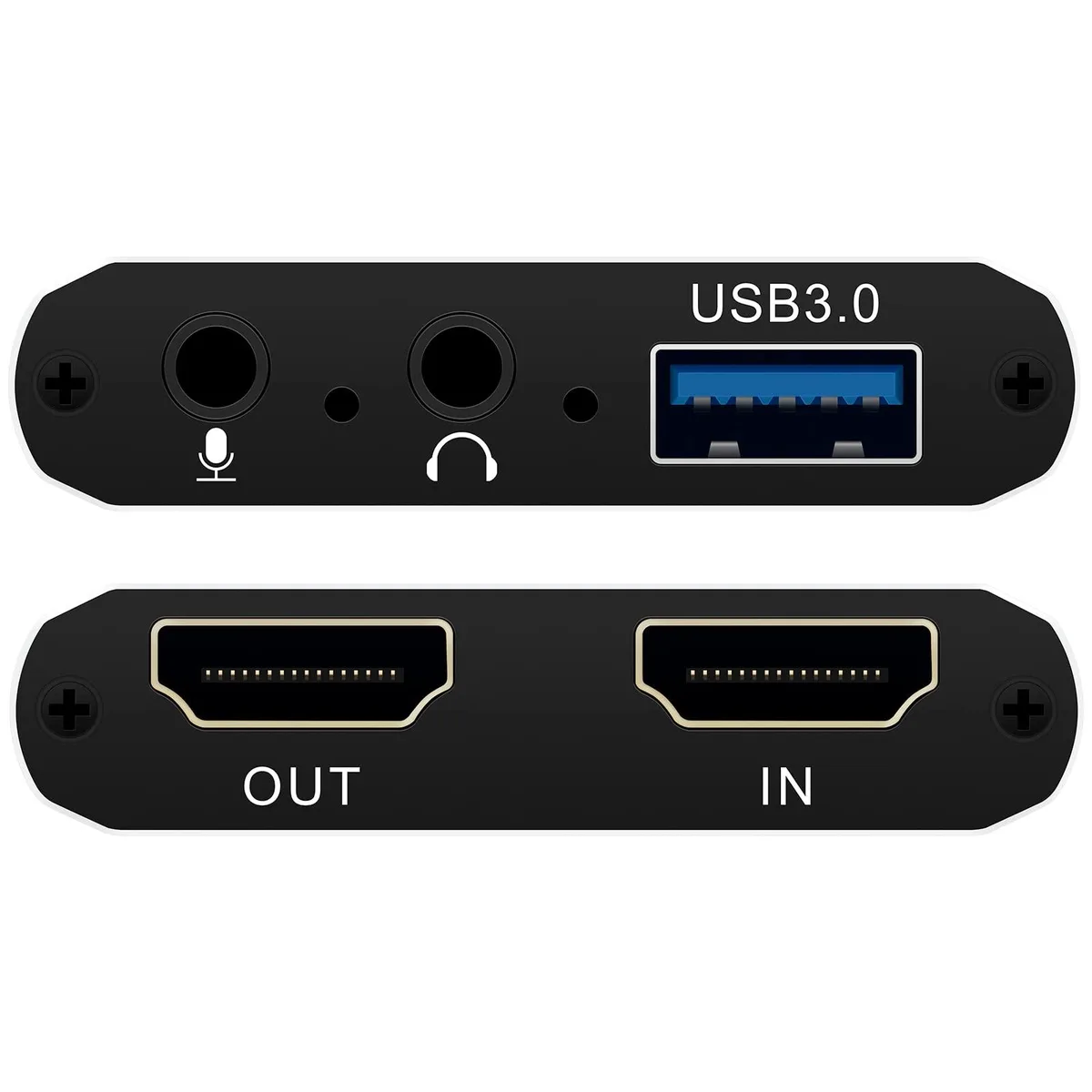

Compact black capture box with HDMI ports, 3.5 mm jacks and USB 3.0 cable

HDSUNWSTD V316 4K HDMI Capture Card USB 3.0 1080p60 3.5mm Loop-Out

SKU CH-PN50-KC8ND

Captures 4K input at 30 Hz and streams 1080p at 60 fps via USB 3.0 with HDMI loop-out and 3.5 mm audio ports

  • Type4K Audio Video Capture Card
  • FeaturesHDMI Loop-Out, 3.5mm Microphone and Audio Input/Output Port,
  • Weight0.118 kilograms
  • Capture 1080p60 gameplay via USB 3.0
  • Pass-through HDMI loop-out with zero delay
  • Add commentary through 3.5 mm microphone input
  • Monitor audio live using 3.5 mm stereo output
  • Works with Windows, Mac, Linux, Android and major consoles

What this capture card does

The HDSUNWSTD V316 captures HDMI video at up to 4K@30Hz input and delivers 1080p@60fps over USB 3.0. An HDMI loop-out passes the signal to a display without added latency. A 3.5mm microphone input and stereo output let you mix live commentary or monitor audio while recording or streaming.

Check your source and host before ordering

Your video source must provide an HDMI output at 4K@30Hz or lower. The host computer needs a free USB 3.0 Type-A or Type-C port and must run Windows 7 or later, macOS, Linux or Android. No drivers are required for standard UVC/UAC operation with OBS Studio, Zoom, PotPlayer, VLC and similar software.

How it fits into a streaming setup

The card draws power from the USB bus so no external adapter is needed. Connect the source to the HDMI input, the loop-out to your monitor or TV, and the USB cable to the host. The 3.5mm ports free you from routing game audio through the computer for monitoring, while the compact 0.118 kg body sits unobtrusively on a desk or in a laptop bag.

Highlights

  • Capture 1080p60 gameplay via USB 3.0
  • Pass-through HDMI loop-out with zero delay
  • Add commentary through 3.5 mm microphone input
  • Monitor audio live using 3.5 mm stereo output
  • Works with Windows, Mac, Linux, Android and major consoles

Specifications

BrandHDSUNWSTD
ModelV316
Type4K Audio Video Capture Card
FeaturesHDMI Loop-Out, 3.5mm Microphone and Audio Input/Output Port, Mic-In for Commentary
Weight0.118 kilograms

Questions about this item

Does the box include the capture card, cables, software disc and manual or must anything be purchased separately?

The package contains the V316 capture card, a USB 3.0 to USB-C cable, a CD with collection software and a user manual; no extra items are required for basic operation.

Should I choose this V316 model for 4K recording or is it limited to 1080p capture?

The V316 accepts 4K at 30 Hz on its HDMI input but captures and streams at a maximum of 1080p at 60 fps over USB, so select it when 1080p60 recording is the target.

What does the 1080p60 headline figure mean once the card is connected to a PC or console?

It means the device can encode and deliver full HD video at 60 frames per second to streaming software such as OBS while the HDMI loop-out passes the original signal to a monitor with no added latency.
