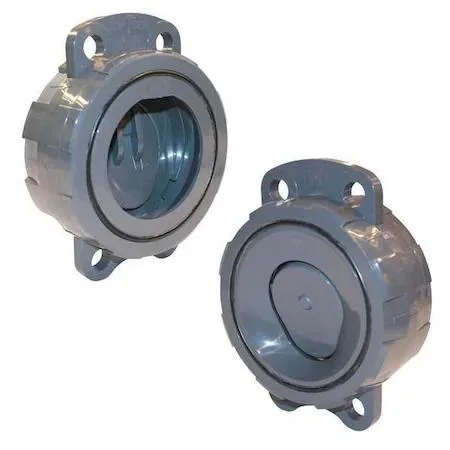

Hayward wafer check valve, CPVC body, 2.4063 in length, flange connections

Hayward

Hayward WCV2300V Wafer Check Valve 2.4063 in

SKU CH-VKNT-84HAH

CPVC inline wafer check valve handles 220 gpm water flow at 150 psi with FPM seals rated from 40 to 190 degrees F

  • CPVC body resists corrosion in chemical lines
  • FPM seals handle 190 °F max fluid temperature
  • Single-disc wafer design gives 220 gpm full flow
  • Installs horizontally or vertically between flanges
  • 1 psi cracking pressure opens at minimal head loss

Industrial Wafer Check Valve

The Hayward WCV2300V is a CPVC wafer check valve built for 3 in flanged piping systems. Its inline wafer design fits between standard flanges without adding bulk to the pipeline. The single-flow mechanism opens at a low 1 psi cracking pressure and allows full flow in the forward direction. It serves installers and plant engineers who need reliable backflow prevention in corrosive fluid lines.

Flanged Inline Integration

The valve mounts between two flanges in either horizontal or vertical orientation, so no extra spool pieces or adapters are required. CPVC construction resists a wide range of acids, bases and salts, freeing the designer from specifying metal alloys for chemical service. With a 220 gpm capacity at 150 psi water pressure, it handles typical process flows without creating a bottleneck. The compact 2.4063 in overall length preserves straight-run space in crowded headers.

Thermal Range and Pressure Limits

Operating temperature spans 40 to 190 Degrees F, and the 150 psi rating is referenced at 70 Degrees F for water service. FPM seals maintain tight shut-off across this range without degrading in common chemical streams. Steam service is not rated, so the valve should not be specified for vapour lines. Pressure drop remains low because the wafer body allows full port flow when the disc is open.

Highlights

  • CPVC body resists corrosion in chemical lines
  • FPM seals handle 190 °F max fluid temperature
  • Single-disc wafer design gives 220 gpm full flow
  • Installs horizontally or vertically between flanges
  • 1 psi cracking pressure opens at minimal head loss

Specifications

BrandHAYWARD FLOW CONTROL

Questions about this item

What is the maximum water pressure the WCV2300V can handle at 70 degrees F before the valve reaches its pressure limit?

The valve is rated for 150 psi maximum water pressure at 70 degrees F, which is the pressure limit that appears first under sustained use.

How much heat does the CPVC body and FPM seal generate when the valve runs continuously at 220 gpm flow?

The valve operates up to 190 degrees F maximum temperature; the CPVC body and FPM seal do not add measurable heat beyond the fluid temperature during continuous flow.

Which flange standard must the existing piping use so the 3-inch wafer check valve bolts up correctly?

The valve uses a flange-by-flange connection for 3-inch pipe; the mating flanges must match the same bolt pattern and face type for proper installation.
