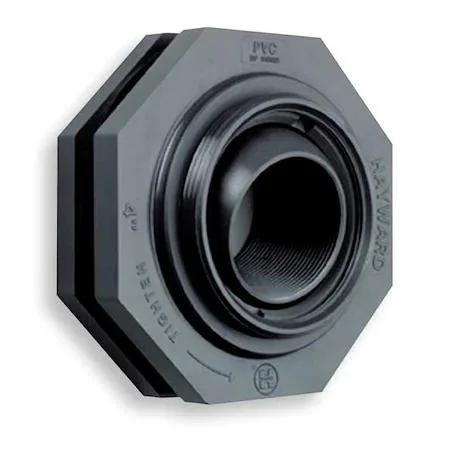

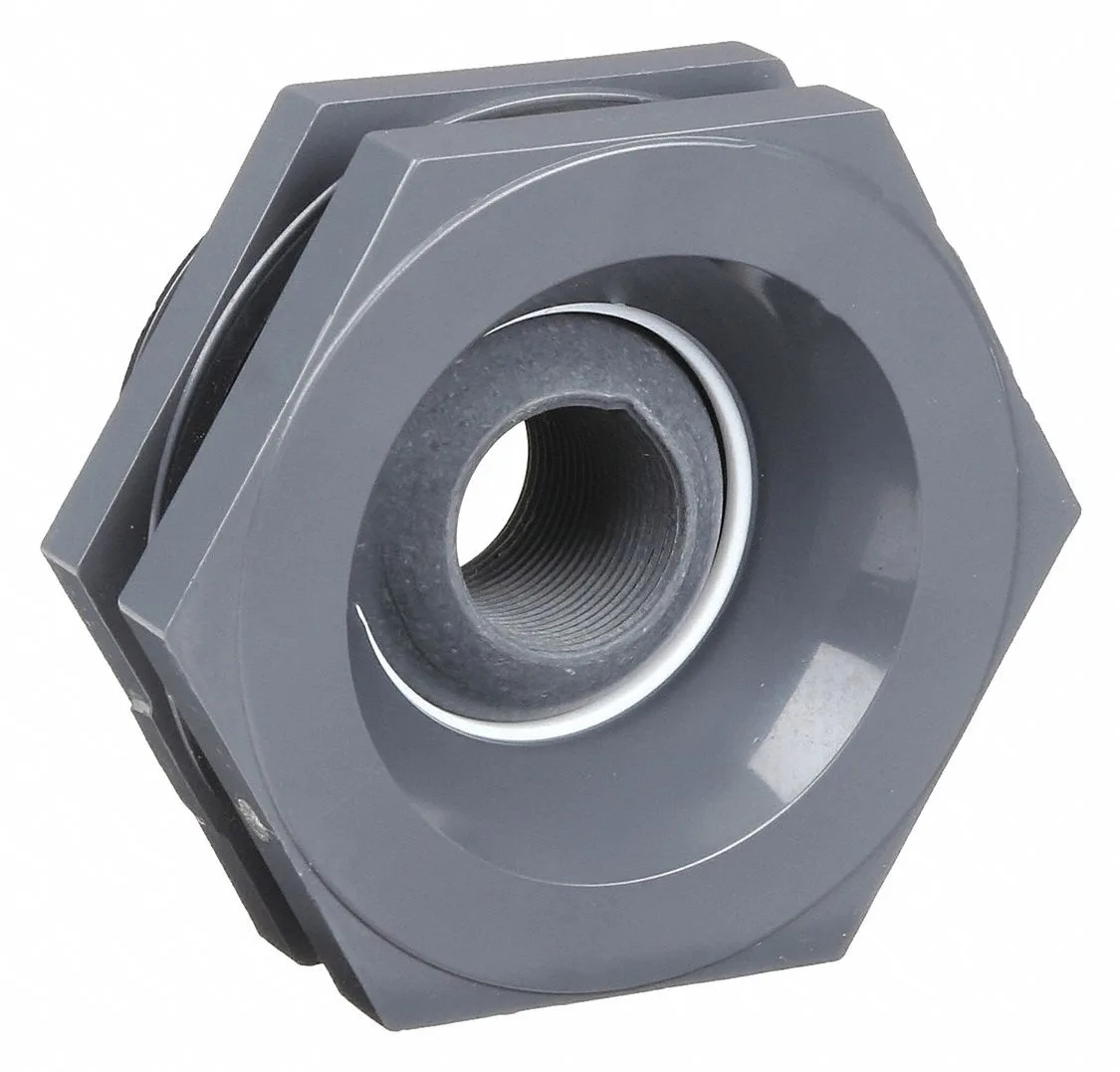

Gray PVC bulkhead fitting with threaded female ends

HAYWARD POOL PRODUCTS INC

HAYWARD POOL PRODUCTS INC SF10200T 2" Bulkhead Fitting Trap

SKU CH-TPGY-AK8ZB MPN SF10200T

PVC bulkhead fitting with EPDM gasket connects 2-inch FNPT threads on curved or flat tanks up to 75 psi and 140 Degrees F

  • TypeDrain Components
  • ColorGray
  • 2-inch female NPT threads connect directly to plumbing without adapters
  • EPDM gasket seals reliably from 40 to 140 degrees F
  • PVC construction resists corrosion in pool and spa environments
  • Rated for 75 psi working pressure in circulation systems
  • Six-inch overall length fits standard tank wall thicknesses

What this fitting does

The Hayward SF10200T is a 2 inch PVC bulkhead fitting designed to pass through a tank wall. It accepts female NPT threads on both the inside and outside connections. The gray body uses an EPDM gasket to seal against curved or flat tank surfaces. It is rated for 75 psi at up to 140 degrees F.

Installing and common issues

Thread the fitting into the tank opening by hand, then tighten with a strap wrench to avoid cracking the PVC. The EPDM gasket must sit flat against the tank surface; debris or an uneven wall will cause leaks. Do not use pipe dope on the gasket face, and avoid over-tightening which distorts the flange.

Check before ordering

Verify that your tank wall thickness allows the 6 inch overall length to clear both sides. Confirm the system pressure stays below 75 psi and the fluid temperature remains between 40 and 140 degrees F. Ensure the mating pipes use 2 inch female NPT threads; other thread types will not seal.

Highlights

  • 2-inch female NPT threads connect directly to plumbing without adapters
  • EPDM gasket seals reliably from 40 to 140 degrees F
  • PVC construction resists corrosion in pool and spa environments
  • Rated for 75 psi working pressure in circulation systems
  • Six-inch overall length fits standard tank wall thicknesses

Specifications

TypeDrain Components
ColorGray
BrandHayward
ModelSF10200T

Questions about this item

How can I confirm the 2" bulkhead fitting is sealing properly after installation?

Pressurise the system up to 75 psi and inspect the EPDM gasket joint for leaks; the fitting is rated for 40 to 140 °F so verify no weeping across that temperature range.

What components are included with the SF10200T and what must be sourced separately?

The grey PVC bulkhead fitting with female NPT threads on both sides is supplied; pipe nipples, thread sealant and any tank reinforcement are not included.

Which version of the 2" bulkhead fitting should I choose for a curved or flat tank?

The SF10200T is designed for both curved and flat tank walls, so a single model covers either installation.
