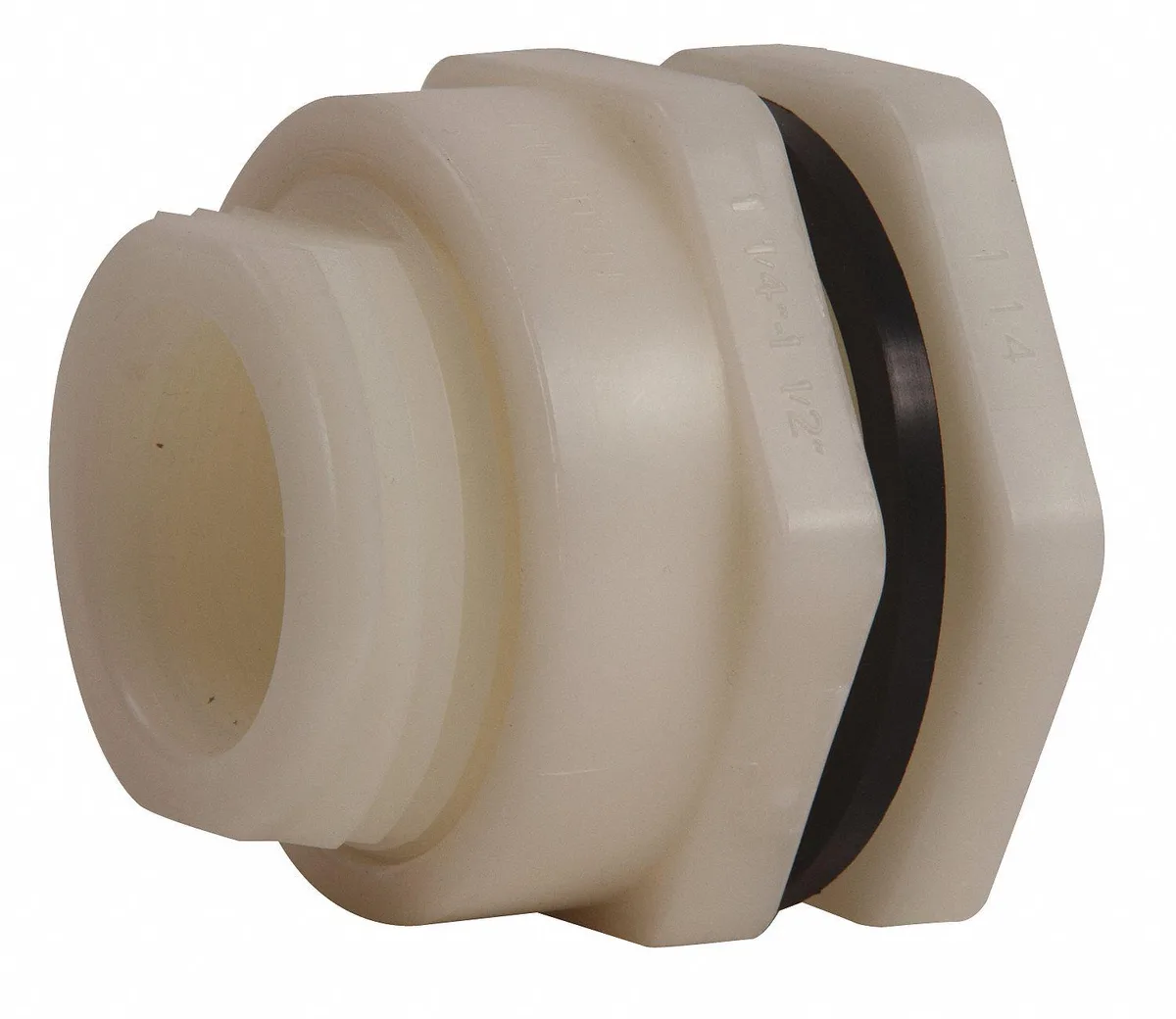

White polypropylene bulkhead tank fitting with 2 inch FNPT threads

HAYWARD POOL PRODUCTS INC

HAYWARD POOL PRODUCTS INC BFAS3020TFS 2" FNPT Bulkhead Tank Fitting trap

SKU CH-C50Z-AVQEH MPN BFAS3020TFS

2-inch female-threaded bulkhead fitting with FKM gasket rated to 150 psi at 70 degrees F and operable from 40 to 180 degrees F

  • TypeDrain Components
  • MaterialHAWA
  • 2-inch female threaded ports simplify tank connections
  • Polypropylene body resists corrosion in pool chemicals
  • FKM gasket seals reliably from 40 to 180 °F
  • Rated for 150 psi at 70 °F for safe operation
  • White finish blends with standard pool equipment

Product identity and purpose

The Hayward BFAS3020TFS is a bulkhead tank fitting designed for pool and plumbing installations. It connects to tank walls using a 2-inch female threaded connection on both the inside and outside. The fitting is made from polypropylene with an FKM gasket for chemical resistance.

Deciding specification

The maximum operating pressure is 150 psi at 70 degrees Fahrenheit, with a temperature range from 40 to 180 degrees Fahrenheit. This pressure and temperature envelope determines whether the fitting suits a specific system. No bolt holes are present, so mounting relies on the threaded engagement alone.

Fit and alternatives

This fitting suits installers who need a straight-through bulkhead connection for curved or flat tanks with 2-inch FNPT ports. It is not for buyers who require a flanged connection, a different gasket material, or a fitting rated above 150 psi. Those needing a smaller or larger port size should look at other models.

Highlights

  • 2-inch female threaded ports simplify tank connections
  • Polypropylene body resists corrosion in pool chemicals
  • FKM gasket seals reliably from 40 to 180 °F
  • Rated for 150 psi at 70 °F for safe operation
  • White finish blends with standard pool equipment

Specifications

TypeDrain Components
MaterialHAWA
BrandHayward
ModelBFAS3020TFS

Questions about this item

What does the 150 psi rating mean once the fitting is installed in a tank?

The fitting is rated for a maximum operating pressure of 150 psi at 70 degrees F, so it will hold that pressure when threaded into a bulkhead on a curved or flat tank.

What does the 2-inch FNPT thread standard cap in practice?

Both the inside and outside connections use 2-inch female NPT threads, limiting the fitting to mating with male NPT pipe or adapters of the same size and thread type.

What does the fitting need to mount on a tank?

It installs directly into a bulkhead opening on a curved or flat tank wall with no bolt holes required, sealing via the included FKM gasket.
