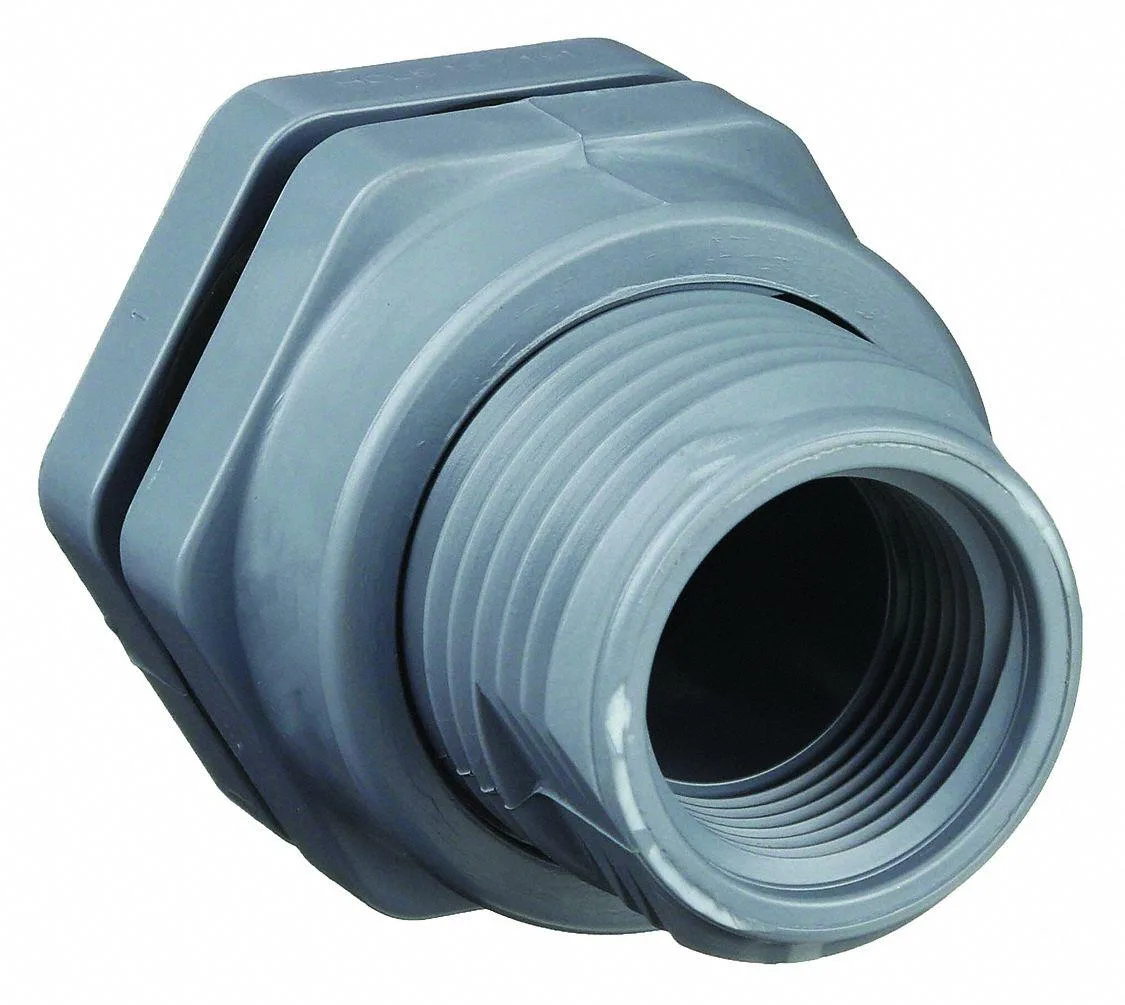

Light gray CPVC bulkhead fitting with threaded and socket ends

HAYWARD POOL PRODUCTS INC

HAYWARD POOL PRODUCTS INC BFAS2010CFS Bulkhead Fitting trap 1 in CPVC FPM

SKU CH-WJCP-EPXTD MPN BFAS2010CFS

Bulkhead tank fitting connects 1-inch threaded and socket joints on curved or flat tanks using CPVC with FKM gaskets rated to 150 psi and 190 °F

  • TypeDrain Components
  • MaterialHAWA
  • ColorLight Gray
  • CPVC construction resists chemical corrosion in pool systems
  • FKM gasket seals reliably from 40 to 190 degrees F
  • Rated for 150 psi maximum operating pressure
  • 1 inch female threaded and socket connections simplify installation
  • Light gray finish identifies material at a glance

Pool drain bulkhead fitting

The Hayward BFAS2010CFS is a CPVC bulkhead fitting designed for pool drainage systems. It connects a 1-inch female threaded interior to a 1-inch female socket exterior. The light grey body uses an FKM gasket for chemical resistance. It suits installers fitting tank penetrations on curved or flat surfaces.

Verify tank and pipe compatibility

Confirm the tank wall thickness allows the 2 7/8 inch overall length to seat fully. The fitting accepts 1-inch CPVC socket on the outside and 1-inch female thread on the inside. Ensure your piping schedule matches these connection types before ordering. No bolt holes are present for flange mounting.

Pressure and temperature ratings

The fitting operates between 40 and 190 degrees Fahrenheit at up to 150 psi. CPVC construction handles typical pool chemical loads without degradation. FKM gasket material resists chlorine and ozone exposure. Normal use stays well within these limits for standard circulation and drain applications.

Highlights

  • CPVC construction resists chemical corrosion in pool systems
  • FKM gasket seals reliably from 40 to 190 degrees F
  • Rated for 150 psi maximum operating pressure
  • 1 inch female threaded and socket connections simplify installation
  • Light gray finish identifies material at a glance

Specifications

TypeDrain Components
MaterialHAWA
ColorLight Gray
BrandHayward
ModelBFAS2010CFS

Questions about this item

Does the Hayward BFAS2010CFS bulkhead fitting come with the FKM gasket installed, or must I buy it separately?

The fitting is supplied with the FKM gasket already fitted; no separate gasket purchase is needed.

Should I choose the 1 in threaded inside connection or the 1 in socket outside connection for my plumbing layout?

Both connections are built into the same fitting — the inside port is 1 in female threaded and the outside port is 1 in female socket, so you use whichever matches your pipework.

What does the 150 psi maximum operating pressure mean when the fitting is installed in a heated pool system?

It means the fitting can safely handle up to 150 psi at temperatures up to 190 °F, covering typical heated pool circulation pressures.
