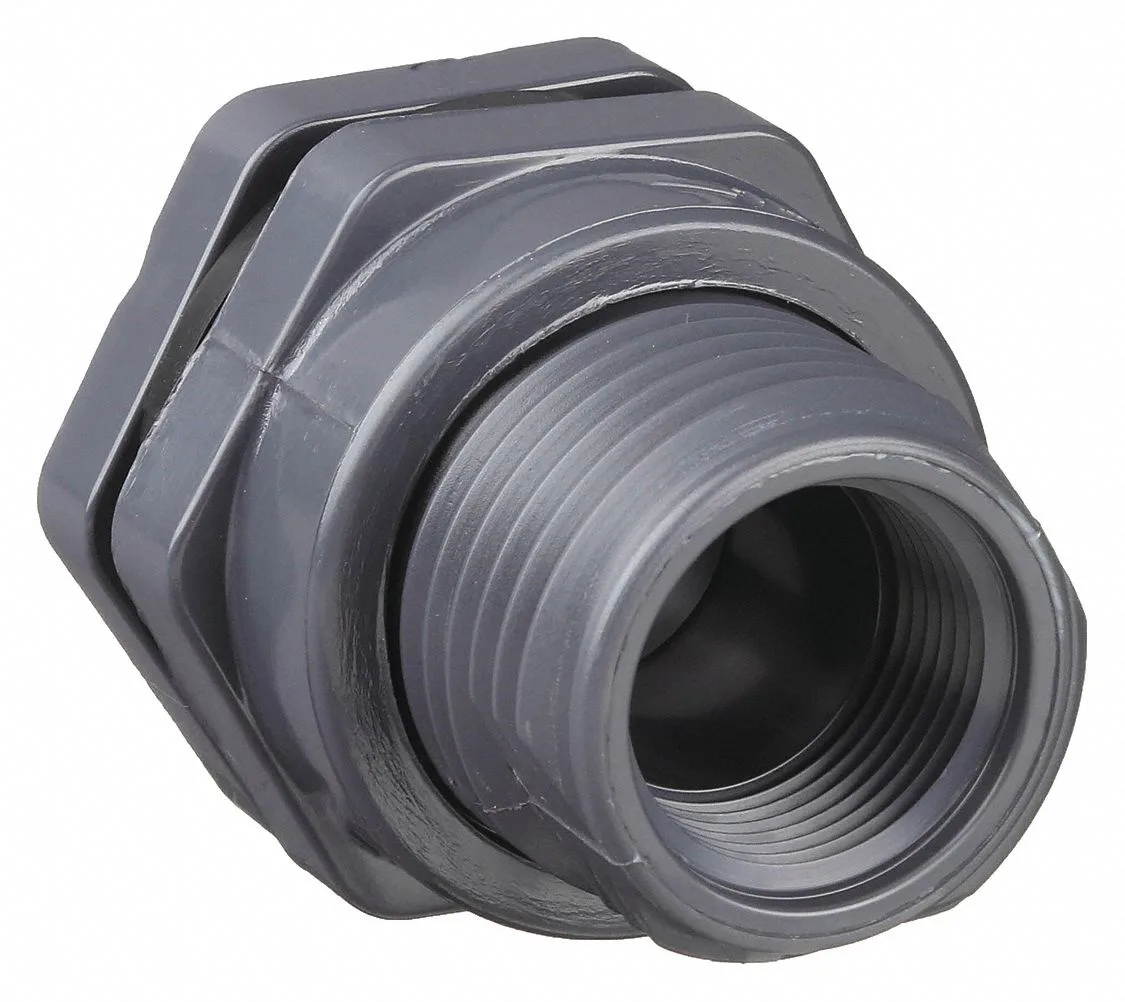

Gray PVC bulkhead fitting with threaded and socket ends

HAYWARD POOL PRODUCTS INC

HAYWARD POOL PRODUCTS INC BFAS1020CFS 2" Bulkhead Fitting trap

SKU CH-6MQM-91C0G MPN BFAS1020CFS

A 2-inch bulkhead fitting with FNPT and socket connections, rated to 150 psi at 70 degrees F

  • TypeDrain Components
  • MaterialHAWA
  • ColorGray
  • Reliable seal with FKM gasket material
  • Handles up to 150 psi at 70 Degrees F
  • Operates from 40 to 140 Degrees F
  • Connects 2 in FNPT to 2 in socket
  • Durable PVC construction for tank installations

2-inch Bulkhead Fitting for Tanks

This Hayward BFAS1020CFS bulkhead fitting connects pipework to curved or flat tank walls. The grey PVC body carries a 2-inch female NPT thread on the inside and a 2-inch socket on the outside. An FKM gasket seals the penetration against the tank surface.

Replaces worn tank penetrations

Swap this fitting in when an existing bulkhead cracks, leaks at the gasket, or no longer holds pressure. The upgrade is worth it if the old hardware cannot handle 150 psi at 70 Degrees F or if the service temperature exceeds the 40 to 140 Degrees F range.

Simple socket and thread assembly

Solvent-weld the socket end to the external pipe and thread the internal NPT connection into the tank fitting. The zero-bolt-hole design means no flange alignment is required. The main failure mode is over-tightening the threaded side, which can split the PVC body.

Highlights

  • Reliable seal with FKM gasket material
  • Handles up to 150 psi at 70 Degrees F
  • Operates from 40 to 140 Degrees F
  • Connects 2 in FNPT to 2 in socket
  • Durable PVC construction for tank installations

Specifications

TypeDrain Components
MaterialHAWA
ColorGray
BrandHayward
ModelBFAS1020CFS

Questions about this item

What size hole does the 2" bulkhead fitting need in the tank wall?

The fitting uses a 2" inside connection and a 2" outside connection, so the tank opening must match the manufacturer's specified cut-out for a 2" bulkhead.

How do I install the FNPT threaded side and the socket side without leaks?

Wrap the 2" FNPT threads with PTFE tape, hand-tighten plus one to two turns, then solvent-weld the 2" socket end to the pipe using PVC primer and cement.

When should I replace the FKM gasket on this bulkhead fitting?

Inspect the FKM gasket each season; replace it if you see cracking, hardening, or any seepage at the tank wall, especially after exposure near the 140°F upper temperature limit.
