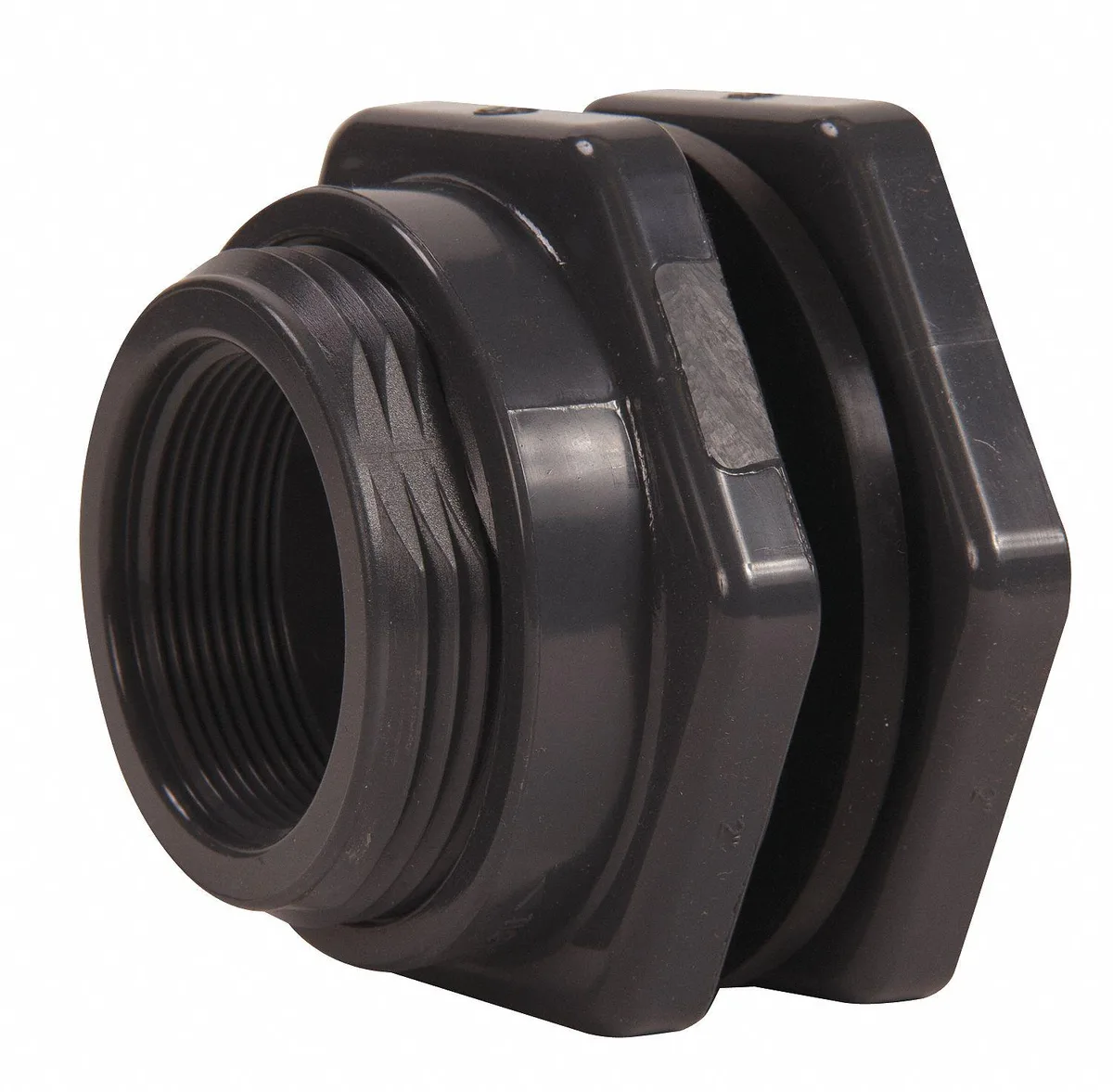

Gray PVC bulkhead fitting with threaded FNPT ends

HAYWARD POOL PRODUCTS INC

HAYWARD POOL PRODUCTS INC BFAS1007TFS 3/4" Bulkhead Fitting FNPT x FNPT trap

SKU CH-26S6-5PB74 MPN BFAS1007TFS

3/4-inch PVC bulkhead fitting with FNPT connections, FPM gasket, 150 psi rating, and 40 to 140 °F operating range

  • TypeDrain Components
  • ColorGray
  • 3/4 inch FNPT connections simplify tank plumbing
  • PVC body with FPM gasket handles 150 psi pressure
  • Installs in walls up to 1.08 inches thick
  • Operates reliably from 40 to 140 degrees F
  • Gray finish matches standard pool equipment aesthetics

3/4-inch FNPT bulkhead fitting for tank walls

The Hayward BFAS1007TFS is a PVC bulkhead fitting designed to pass a 3/4-inch female NPT connection through a tank wall. It suits pool, spa or industrial fluid systems that need a reliable through-wall joint.

Holds 150 psi across a 40 to 140 °F range

The fitting is rated for 150 psi maximum pressure and operates between 40 and 140 degrees Fahrenheit. Its FPM gasket resists chemical attack and maintains seal integrity during continuous pressurised service.

Verify 1 5/8-inch hole

Installation requires a 1 5/8-inch diameter hole and the tank wall must not exceed 1.08 inches thick. The overall length is 2 7/8 inches, so confirm internal clearance before ordering.

Highlights

  • 3/4 inch FNPT connections simplify tank plumbing
  • PVC body with FPM gasket handles 150 psi pressure
  • Installs in walls up to 1.08 inches thick
  • Operates reliably from 40 to 140 degrees F
  • Gray finish matches standard pool equipment aesthetics

Specifications

TypeDrain Components
ColorGray
BrandHayward
ModelBFAS1007TFS

Questions about this item

Does the PVC body and FPM gasket handle continuous 150 psi pressure without leaking or deforming over time?

The fitting is rated for a maximum of 150 psi and uses an FPM gasket designed for chemical resistance, so it maintains a seal under sustained pressure within its 40 to 140 °F temperature range.

What size hole must I drill in the tank wall and what wall thickness can this bulkhead accommodate?

Drill a 1 5/8 inch hole; the fitting accepts tank walls up to 1.08 inches thick and includes the FNPT x FNPT threads for direct pipe connection.

Will the 3/4 inch FNPT threads mate with my existing Schedule 40 PVC piping and standard pool valves?

Yes, the 3/4 inch FNPT x FNPT connections are standard NPT threads compatible with Schedule 40 PVC fittings and common pool valves of the same nominal size.
