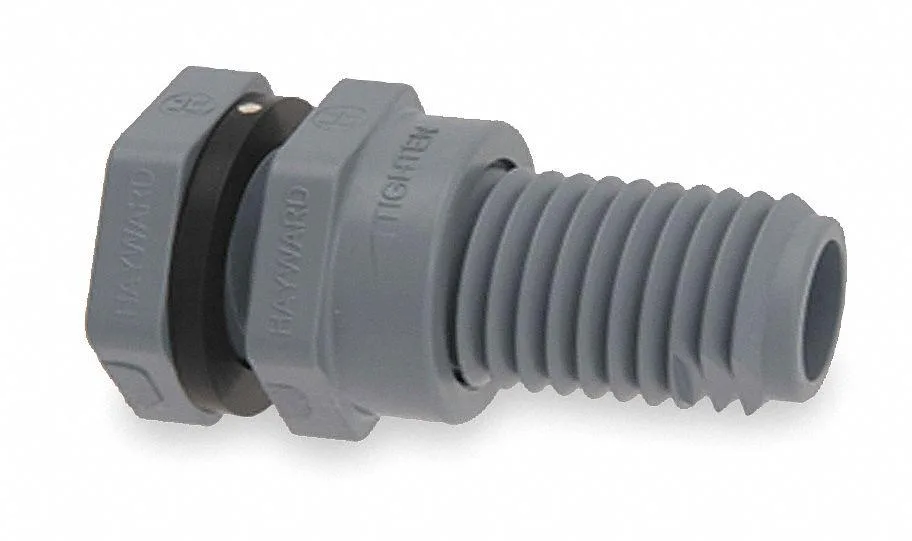

Light grey CPVC bulkhead fitting with socket ends

HAYWARD POOL PRODUCTS INC

HAYWARD POOL PRODUCTS INC BFA2010SES 1 In Socket x Socket Bulkhead Trap

SKU CH-S8Y8-5XQ4R MPN BFA2010SES

A 1-inch CPVC bulkhead trap with socket-to-socket connections, rated for 150 psi at 70 degrees F and temperatures from 40 to 190 degrees F

  • TypeDrain Components
  • MaterialHAWA
  • ColorLight Gray
  • Socket-to-socket design simplifies installation on curved or flat tanks
  • CPVC construction with EPDM gasket resists chemicals at 150 psi
  • Rated for continuous operation up to 190 °F
  • Suitable for cold-water systems down to 40 °F
  • One-inch female connections on both sides match standard piping

Pool bulkhead fitting for 1 in socket connections

The Hayward BFA2010SES bulkhead fitting provides a 1 inch socket-by-socket connection through tank walls. It is built from CPVC material in a light gray finish with an EPDM gasket for sealing. The fitting suits curved or flat tank surfaces and operates between 40 and 190 degrees Fahrenheit at up to 150 psi at 70 degrees Fahrenheit. Installers working on pool or spa plumbing systems use this component to create a watertight pass-through.

Verify tank wall thickness and socket compatibility

Before ordering confirm that the tank wall can accommodate a socket connection on both the inside and outside faces. The fitting requires a 1 inch socket opening and uses no bolt holes for mounting. Check that the operating pressure and temperature range of your system stays within the 150 psi at 70 degrees Fahrenheit and 40 to 190 degrees Fahrenheit limits. Ensure the CPVC material and EPDM gasket are compatible with the chemicals in your water treatment setup.

Replaces worn or leaking bulkhead fittings

This fitting replaces a damaged or degraded bulkhead when the original seal fails or the body cracks. The upgrade is worth it when the tank structure is sound but the pass-through connection leaks or cannot hold the required pressure. It restores a secure 1 inch socket connection without needing to drill new bolt holes or change the tank opening size.

Highlights

  • Socket-to-socket design simplifies installation on curved or flat tanks
  • CPVC construction with EPDM gasket resists chemicals at 150 psi
  • Rated for continuous operation up to 190 °F
  • Suitable for cold-water systems down to 40 °F
  • One-inch female connections on both sides match standard piping

Specifications

TypeDrain Components
MaterialHAWA
ColorLight Gray
BrandHayward
ModelBFA2010SES

Questions about this item

Does the Hayward BFA2010SES bulkhead fitting come with the EPDM gasket included or must it be purchased separately?

The EPDM gasket is part of the fitting assembly, so no separate gasket purchase is required for installation.

Should I choose a different model if my tank wall is thicker than the standard fitting length?

The BFA2010SES is a single 1-inch socket-by-socket size; select it when your pipe and tank connections match those dimensions.

What does the 150 psi at 70 degrees F rating mean for daily pool circulation?

It confirms the fitting handles normal pump pressure at typical water temperatures without leaking or deforming.
