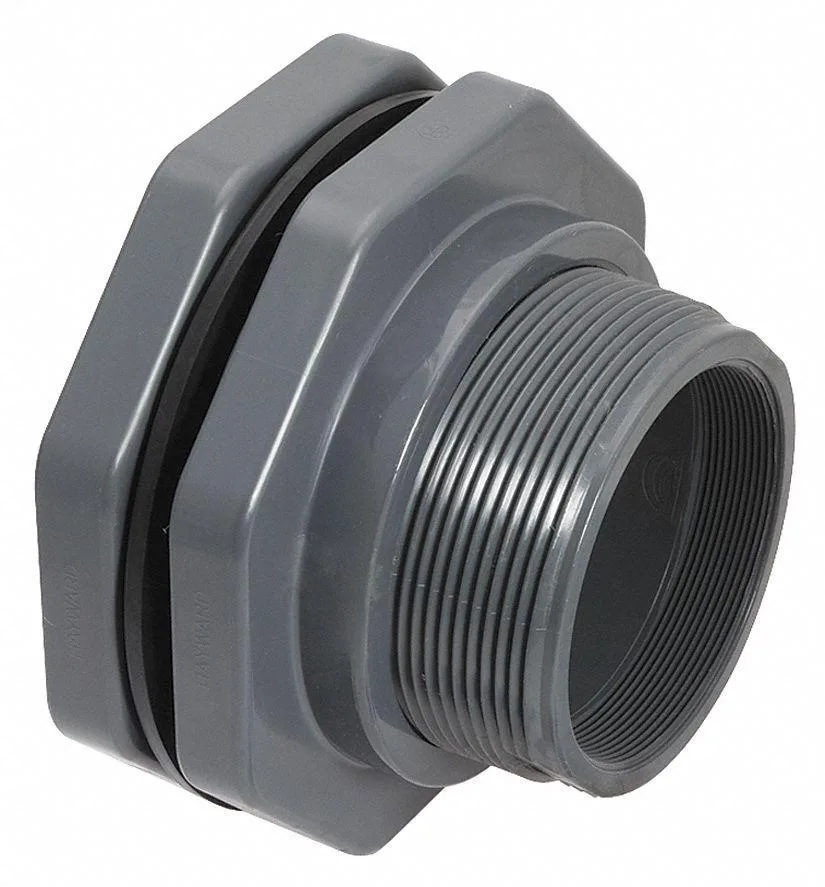

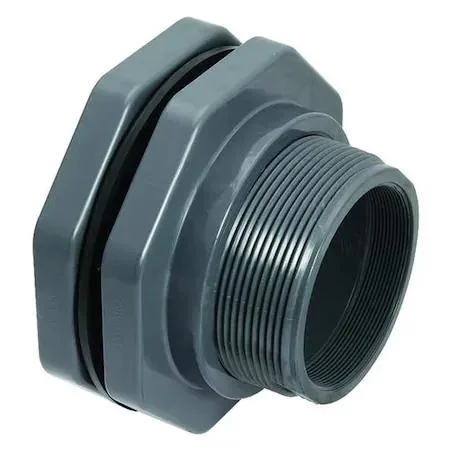

Gray PVC bulkhead fitting, three-inch socket and threaded ends

HAYWARD POOL PRODUCTS INC

HAYWARD POOL PRODUCTS INC BFA1030CES 3 in bulkhead trap

SKU CH-1J8F-B7HEQ MPN BFA1030CES

Three-inch bulkhead trap with PVC body and EPDM gasket connects socket and threaded fittings on curved or flat tanks

  • TypeDrain Components
  • MaterialHAWA
  • ColorGray
  • 3-inch socket connection simplifies pipe installation
  • 150 psi rating at 70 degrees ensures reliable pressure handling
  • EPDM gasket resists chemicals across 40 to 140 degree range
  • Gray PVC body suits curved or flat tank surfaces
  • Female threaded interior accepts standard 3-inch fittings

3-Inch Bulkhead Fitting for Pools

This Hayward BFA1030CES bulkhead fitting connects a 3-inch socket on the tank side to a 3-inch female NPT thread on the plumbing side. It is built from grey PVC with an EPDM gasket for curved or flat tank walls. The part suits pool and spa installations that need a watertight penetration through a vessel wall.

Simple Socket-to-Thread Installation

The outside socket end slips over a 3-inch pipe and is solvent-welded, while the inside female thread accepts standard NPT fittings. No bolt holes are present, so the joint relies on the gasket and solvent bond for sealing. Misalignment or insufficient primer on the socket joint are the most common causes of leaks.

Rated for 150 PSI at 70 Degrees F

The fitting handles continuous pressure up to 150 psi at 70 degrees F and operates between 40 and 140 degrees F. PVC material strength decreases as temperature rises, so sustained loads near the upper thermal limit reduce the safe pressure margin. The EPDM gasket maintains its seal across the stated temperature range.

Highlights

  • 3-inch socket connection simplifies pipe installation
  • 150 psi rating at 70 degrees ensures reliable pressure handling
  • EPDM gasket resists chemicals across 40 to 140 degree range
  • Gray PVC body suits curved or flat tank surfaces
  • Female threaded interior accepts standard 3-inch fittings

Specifications

TypeDrain Components
MaterialHAWA
ColorGray
BrandHayward
ModelBFA1030CES

Questions about this item

How can I confirm the 3 in bulkhead trap is sealing correctly after installation?

Pressurize the system up to 150 psi at 70 Degrees F and check the EPDM gasket for leaks; the fitting is rated for 40 to 140 Degrees F operating range.

What components come with the BFA1030CES and what must I supply separately?

The gray PVC bulkhead fitting with EPDM gasket is included; you must provide the 3 in socket pipe and 3 in FNPT threaded pipe for the outside and inside connections.

Which version of the 3 in bulkhead trap should I choose for a curved or flat tank?

The BFA1030CES is designed for both curved and flat tank shapes with a socket x FNPT configuration, so select this model when those connection types match your plumbing.
