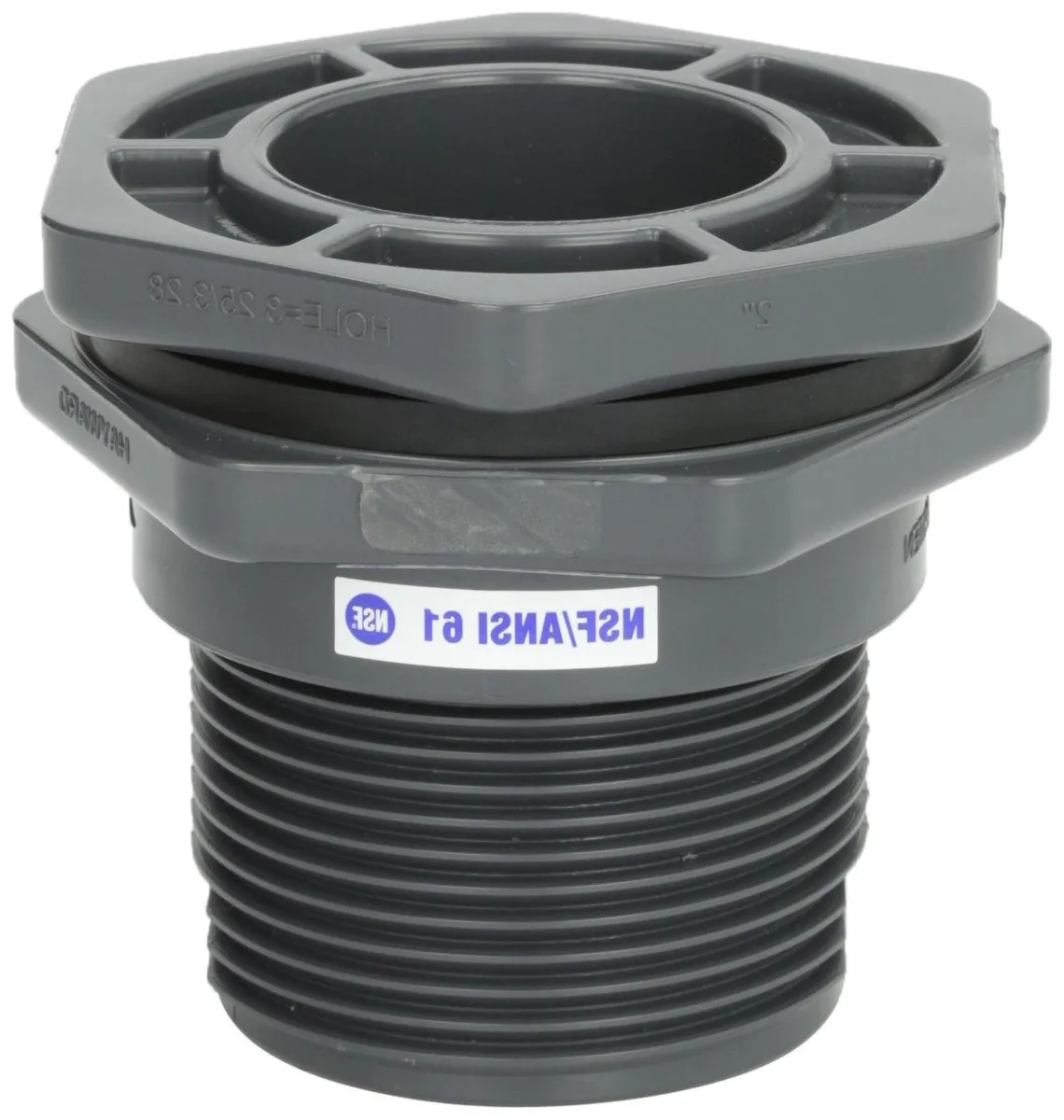

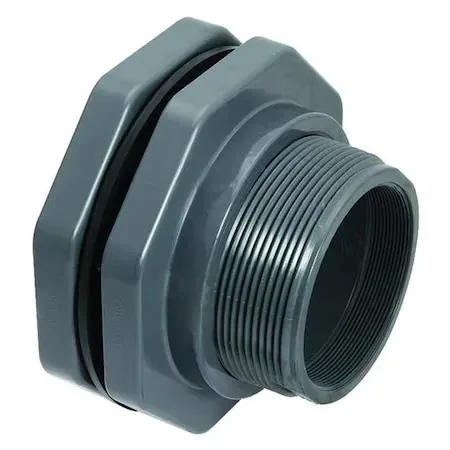

Gray PVC bulkhead fitting with 2-inch socket and threaded connections

HAYWARD POOL PRODUCTS INC

HAYWARD POOL PRODUCTS INC BFA1020CES 2 in bulkhead trap

SKU CH-SG6J-JKV4Z MPN BFA1020CES

A 2-inch bulkhead fitting with socket and threaded connections for curved or flat tanks, rated to 150 psi at 70 degrees F and operating between 40 and 140 degrees F

  • TypeDrain Components
  • MaterialHAWA
  • ColorGray
  • EPDM gasket resists chemicals and temperature swings
  • Rated for 150 psi at 70 degrees Fahrenheit
  • Operates reliably from 40 to 140 degrees Fahrenheit
  • 2-inch socket and FNPT connections fit standard plumbing
  • PVC body with gray finish suits curved or flat tanks

Pool drain bulkhead fitting

The Hayward BFA1020CES is a 2-inch PVC bulkhead tank fitting designed for pool and spa plumbing systems. It connects a female threaded interior port to a female socket exterior port on curved or flat tank walls. The EPDM gasket provides a watertight seal without bolt holes. This component suits installers and maintenance crews working on filtration or drainage circuits.

Pressure and temperature limits

The fitting handles a maximum operating pressure of 150 psi at 70 degrees Fahrenheit. Its rated temperature range spans from a minimum of 40 degrees Fahrenheit to a maximum of 140 degrees Fahrenheit. Gray PVC construction resists corrosion from pool chemicals and UV exposure. No moving parts mean silent operation and no power draw.

Installation and system fit

The socket-by-threaded configuration lets the fitting slip onto a 2-inch pipe outside the tank while accepting a 2-inch male thread inside. Zero bolt holes simplify mounting on curved or flat surfaces. The EPDM gasket seals against the tank wall without additional hardware. This frees up interior space for other fittings and reduces potential leak paths in the plumbing layout.

Highlights

  • EPDM gasket resists chemicals and temperature swings
  • Rated for 150 psi at 70 degrees Fahrenheit
  • Operates reliably from 40 to 140 degrees Fahrenheit
  • 2-inch socket and FNPT connections fit standard plumbing
  • PVC body with gray finish suits curved or flat tanks

Specifications

TypeDrain Components
MaterialHAWA
ColorGray
BrandHayward
ModelBFA1020CES

Questions about this item

How do I install the 2 in socket x FNPT bulkhead fitting on a curved or flat tank, and what step is often missed?

Apply solvent cement to the 2 in socket end for the outside connection, thread the 2 in FNPT inside connection, and ensure the EPDM gasket seats fully — the step often missed is confirming the gasket is evenly compressed before tightening.

What maintenance will the EPDM gasket need over time?

Inspect the EPDM gasket periodically for cracking or hardening, especially after exposure to temperatures near 140 Degrees F, and replace it if any degradation appears to maintain the seal at 150 psi.

What is the first limit reached under sustained pressure at elevated temperature?

The 150 psi maximum operating pressure at 70 Degrees F is the primary limit; sustained use at higher temperatures reduces the allowable pressure, so monitor both pressure and temperature to stay within the 40 to 140 Degrees F range.
