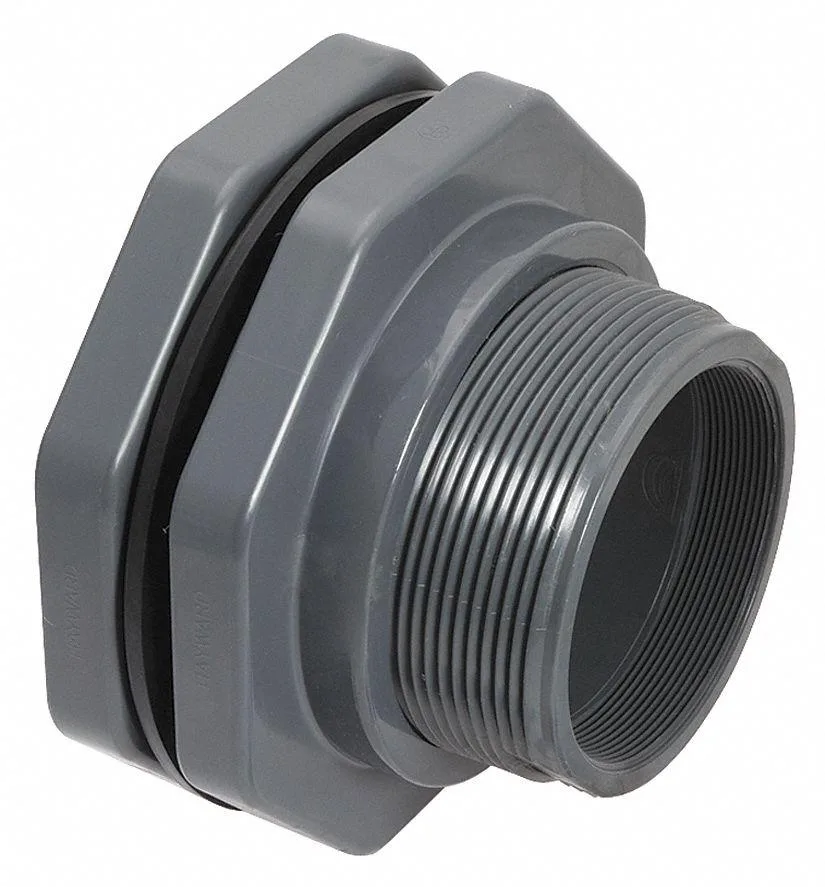

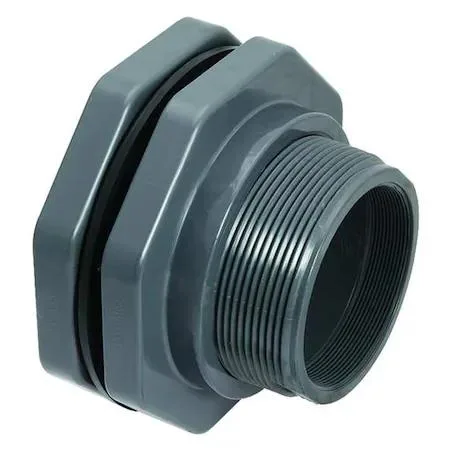

Gray PVC bulkhead fitting with socket ends

HAYWARD POOL PRODUCTS INC

HAYWARD POOL PRODUCTS INC BFA1015SES 1-1/2" Bulkhead Fitting Socket x Socket trap

SKU CH-NG3K-WW8HH MPN BFA1015SES

A PVC bulkhead fitting with socket-to-socket connections for 1-1/2 inch pipe, rated to 150 psi and operating from 40 to 140 degrees F

  • TypeDrain Components
  • MaterialHAWA
  • ColorGray
  • 1-1/2" socket connection simplifies glue-up installation
  • PVC body with EPDM gasket resists chemicals and UV exposure
  • 150 psi rating handles high-pressure pool circulation systems
  • Operates reliably from 40 to 140 degrees Fahrenheit
  • Fits tank walls up to 2 inches thick with 2 21/32" cut-out

Pool Bulkhead Fitting 1-1/2 Inch

This Hayward BFA1015SES bulkhead fitting connects plumbing through tank walls up to two inches thick. The gray PVC body uses a socket-by-socket joint for a secure solvent-weld connection on each side.

EPDM Gasket and Pressure Rating

The included EPDM gasket seals the required 2 21/32 inch hole against leaks. The assembly is rated for 150 psi maximum pressure and handles water temperatures from 40 to 140 degrees Fahrenheit.

Suits Pool Equipment Installations

Installers needing a through-wall drain or return port for standard pool plumbing will find this fitting matches the pipe size and wall-thickness range. Builders requiring a threaded connection, a different pipe diameter or a higher temperature rating should look at alternative fittings.

Highlights

  • 1-1/2" socket connection simplifies glue-up installation
  • PVC body with EPDM gasket resists chemicals and UV exposure
  • 150 psi rating handles high-pressure pool circulation systems
  • Operates reliably from 40 to 140 degrees Fahrenheit
  • Fits tank walls up to 2 inches thick with 2 21/32" cut-out

Specifications

TypeDrain Components
MaterialHAWA
ColorGray
BrandHayward
ModelBFA1015SES

Questions about this item

Will the EPDM gasket need replacing and how often?

The EPDM gasket resists chemicals and UV; inspect it during seasonal opening and replace if it shows cracking or flattening.

What pressure limit appears first during continuous pump operation?

The fitting is rated for 150 psi maximum; sustained pressure above that will stress the PVC body and gasket seal first.

How much heat can the PVC body and EPDM gasket handle during all-day circulation?

Operating temperature range is 40 to 140 degrees F; running hotter risks softening the PVC and degrading the gasket.
