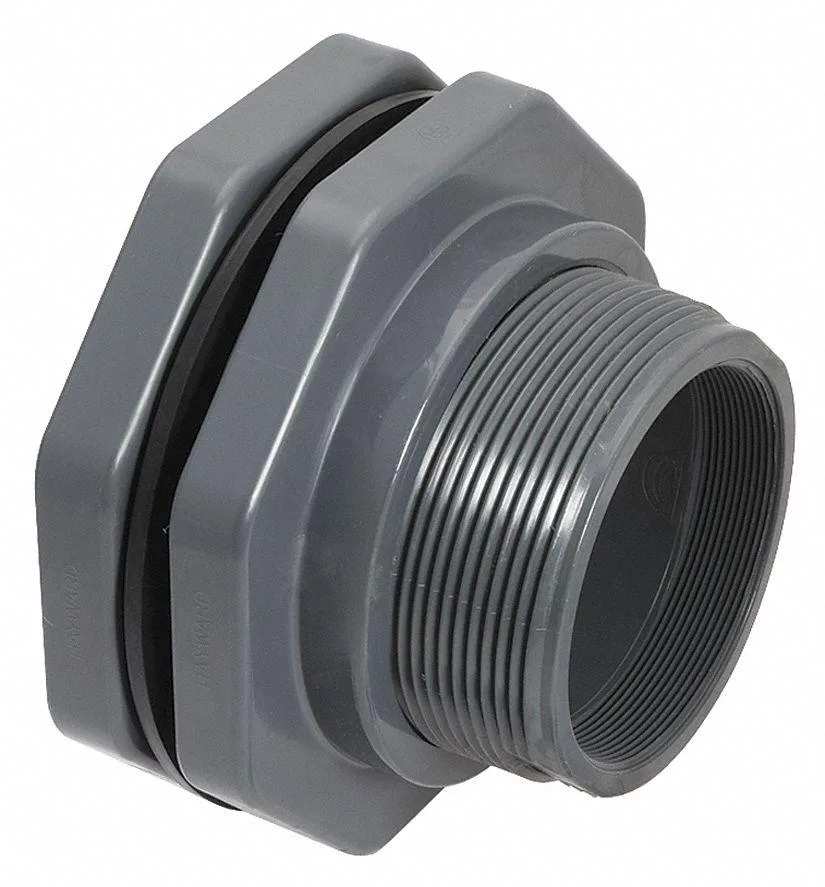

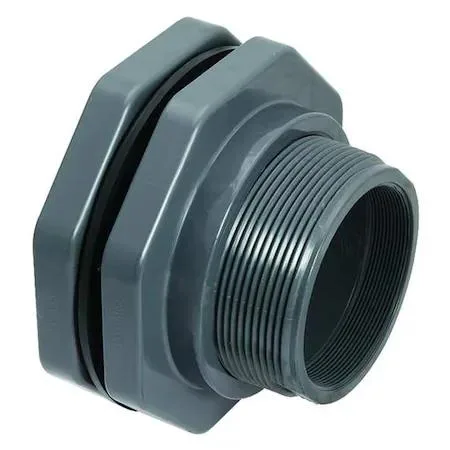

Gray PVC bulkhead fitting, 1-1/4 inch FNPT by socket connection

HAYWARD POOL PRODUCTS INC

HAYWARD POOL PRODUCTS INC BFA1012CES 1-1/4" Bulkhead Fitting Trap

SKU CH-KDP7-CJT5A MPN BFA1012CES

PVC bulkhead fitting connects 1-1/4 inch FNPT to socket, rated 150 psi at 40 to 140 degrees F with EPDM gasket

  • TypeDrain Components
  • MaterialHAWA
  • ColorGray
  • PVC body resists pool chemicals
  • 150 psi rating handles system pressure
  • EPDM gasket seals across 40 to 140 degrees F
  • FNPT by socket connection fits 1 1/4 inch pipe
  • Installs in 2 21/32 inch hole up to 2 inch wall

Pool Bulkhead Fitting 1-1/4

The Hayward BFA1012CES is a PVC bulkhead tank fitting designed for 1-1/4 inch pipe connections. It features a gray body with FNPT x Socket connection types and an EPDM gasket for reliable sealing in pool and spa plumbing systems.

Replaces worn drain components

This fitting replaces damaged or leaking bulkhead connections in tank walls up to 2 inches thick. The upgrade is worth it when the existing fitting shows cracks, thread damage, or gasket failure that causes water loss or pressure drops.

PVC material limits

The PVC body handles temperatures from 40 to 140 degrees F and maximum pressure of 150 psi. It requires a 2 21/32 inch hole for installation and suits static plumbing runs rather than high-vibration or extreme-temperature applications.

Highlights

  • PVC body resists pool chemicals
  • 150 psi rating handles system pressure
  • EPDM gasket seals across 40 to 140 degrees F
  • FNPT by socket connection fits 1 1/4 inch pipe
  • Installs in 2 21/32 inch hole up to 2 inch wall

Specifications

TypeDrain Components
MaterialHAWA
ColorGray
BrandHayward
ModelBFA1012CES

Questions about this item

What hole diameter is required for the 1-1/4" bulkhead fitting?

The fitting requires a 2 21/32 in hole in the tank wall for proper installation.

Which connection types does the FNPT x Socket fitting use on each side?

One side uses a female NPT thread and the other side uses a solvent-weld socket for 1-1/4 in PVC pipe.

When should the EPDM gasket be inspected or replaced?

Inspect the EPDM gasket annually and replace it if it shows cracking, hardening or leakage, especially after exposure near the 140 °F temperature limit.
