Guangzhou Goodtouch Electronics Co.,LTD
Guangzhou Goodtouch Electronics Co.,LTD GT215-L04M-P 21.5" 10-point P-Cap open frame point of sale monitor
A 21.5 inch Full HD open-frame touch monitor with 10-point projected capacitive control, 250 cd/m² brightness and dual VESA mounting options
- Cabinet ColorBlack
- Touchscreen TypeProjected Capacitive
- PanelTFT LCD
- Screen Size21.5"
- Display TypeHD 1080
- Aspect Ratio16:9
- 10-point capacitive touch enables precise multi-user interaction
- Full HD 1920 x 1080 resolution delivers sharp 21.5-inch visuals
- 178° wide viewing angles maintain clarity from any position
- Dual VESA 100 mm and 75 mm patterns allow flexible mounting

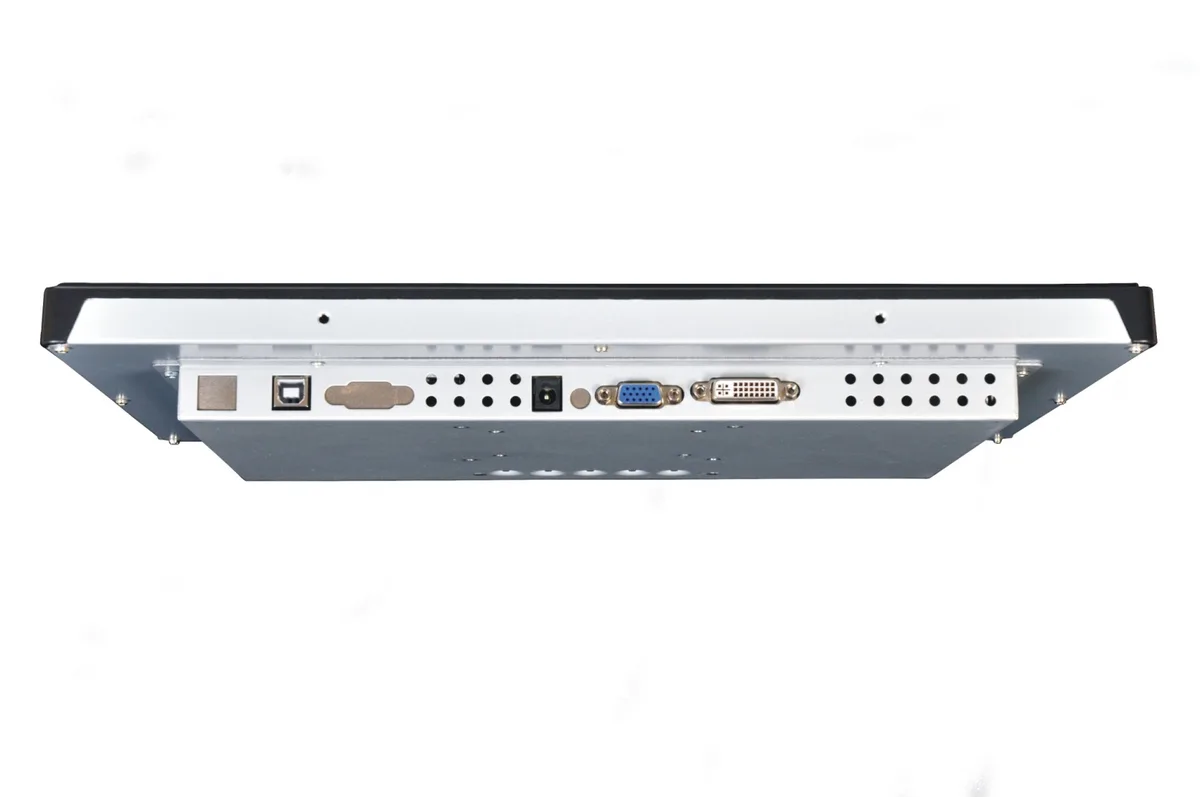

- USB, HDMI and VGA ports connect to diverse POS systems
Industrial touch monitor for embedded use
The Deyowo GT215-L04M-P is a 21.5 inch projected-capacitive open-frame display built for kiosks, self-service terminals and industrial control panels. Its 10-point touch layer sits behind 3 mm tempered glass and supports Windows and Android without extra drivers. The metal enclosure and 100 x 100 mm plus 75 x 75 mm VESA pattern allow flush or surface mounting in tight spaces.
Replaces older single-touch or resistive units
Moving from a single-point resistive screen to this 10-point P-cap panel adds multi-gesture capability and removes the pressure requirement that wears out over time. The jump is worth it when the application needs pinch, zoom or simultaneous touches and when the enclosure must stay under 533.58 mm wide by 320.88 mm high.
Limits of the 60 Hz HDMI and VGA interfaces
The panel tops out at 1920 x 1080 at 60 Hz over HDMI, VGA or DVI, so 4K sources will downscale and high-frame-rate content will not display above 60 frames per second. Brightness is 250 cd/m² and contrast 1000:1, which suits indoor lighting but not direct sunlight. Response time of 10 ms may show ghosting in fast motion.
Highlights
- 10-point capacitive touch enables precise multi-user interaction
- Full HD 1920 x 1080 resolution delivers sharp 21.5-inch visuals
- 178° wide viewing angles maintain clarity from any position
- Dual VESA 100 mm and 75 mm patterns allow flexible mounting
- USB, HDMI and VGA ports connect to diverse POS systems
Specifications
| Brand | Deyowo |
|---|---|
| Model | GT215-L04M-P |
| Cabinet Color | Black |
| Touchscreen Type | Projected Capacitive |
| Panel | TFT LCD |
| Screen Size | 21.5" |
| Display Type | HD 1080 |
| Aspect Ratio | 16:9 |
| Maximum Resolution | 1920 x 1080 |
| Resolution | 1920*1080 |
| Refresh Rate | 60Hz |
| Viewing Angle | 178º(H)/178º(V) |
| Pixel Pitch | 0.279mm |
| Display Colors | 16.7 Million |
| Brightness | 250cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time | 10ms |
| Horizontal Refresh Rate | 60 Hz |
| Vertical Refresh Rate | 60Hz |
| Touchscreen Interface | USB |
| MSR Options | No MSR |
| Connectors | DVI,VGA,USB |
| Power Supply | DC 12V |
| Power Consumption | 25W |
| 3D Glasses Included | No |
| Built-in Speakers | No |
| Dimensions | 21.02 in *1.75 in*12.64 in |
| Weight | 11.67lb |
| Humidity Range | 10%-90%, no condensation |
| Temperature Range | 0?~+50? |
Questions about this item
What are the VESA mounting hole patterns on the back of the GT215-L04M-P?
The monitor provides both 100×100 mm and 75×75 mm VESA hole patterns for wall or arm mounting.
Which video inputs are available for connecting the GT215-L04M-P, and how is touch data transmitted?
It accepts HDMI, VGA and DVI for video; touch data travels over a USB connection that requires no driver on Windows or Android (except Android TV).
How thick is the tempered cover glass, and does it affect the touch response?
The cover glass is 3 mm thick and supports 10-point projected capacitive touch without degrading sensitivity.
