Aluminium 98-inch 16:9 IR touch overlay frame, 10-point

Guangzhou Goodtouch Electronics Co.,LTD

Guangzhou Goodtouch Electronics Co.,LTD 98" 10-Point IR Touch Overlay Frame 16:9

SKU CH-JRYH-FTPPQ

A 98-inch infrared overlay adds 10-point touch to any 16:9 display with driver-free Windows, Android and Linux support

  • Monitor TypeTouchscreen Monitor
  • Cabinet ColorAluminum
  • Screen Size98"
  • Touchscreen InterfaceUSB
  • Style16:9

Screen Size 98"

Struck-through versions exist but are not stocked here.

  • 10-point infrared overlay enables multi-user collaboration on a 98" display
  • USB HID interface works driver-free with Windows, Linux and Android
  • Aluminium frame adds only 9.4 mm depth for flush mounting
  • Infrared grid delivers 32768 × 32768 resolution with 2 mm accuracy
  • Operates up to 3000 m altitude and tolerates 75 % sensor damage

98-Inch 10-Point IR Touch Overlay Frame

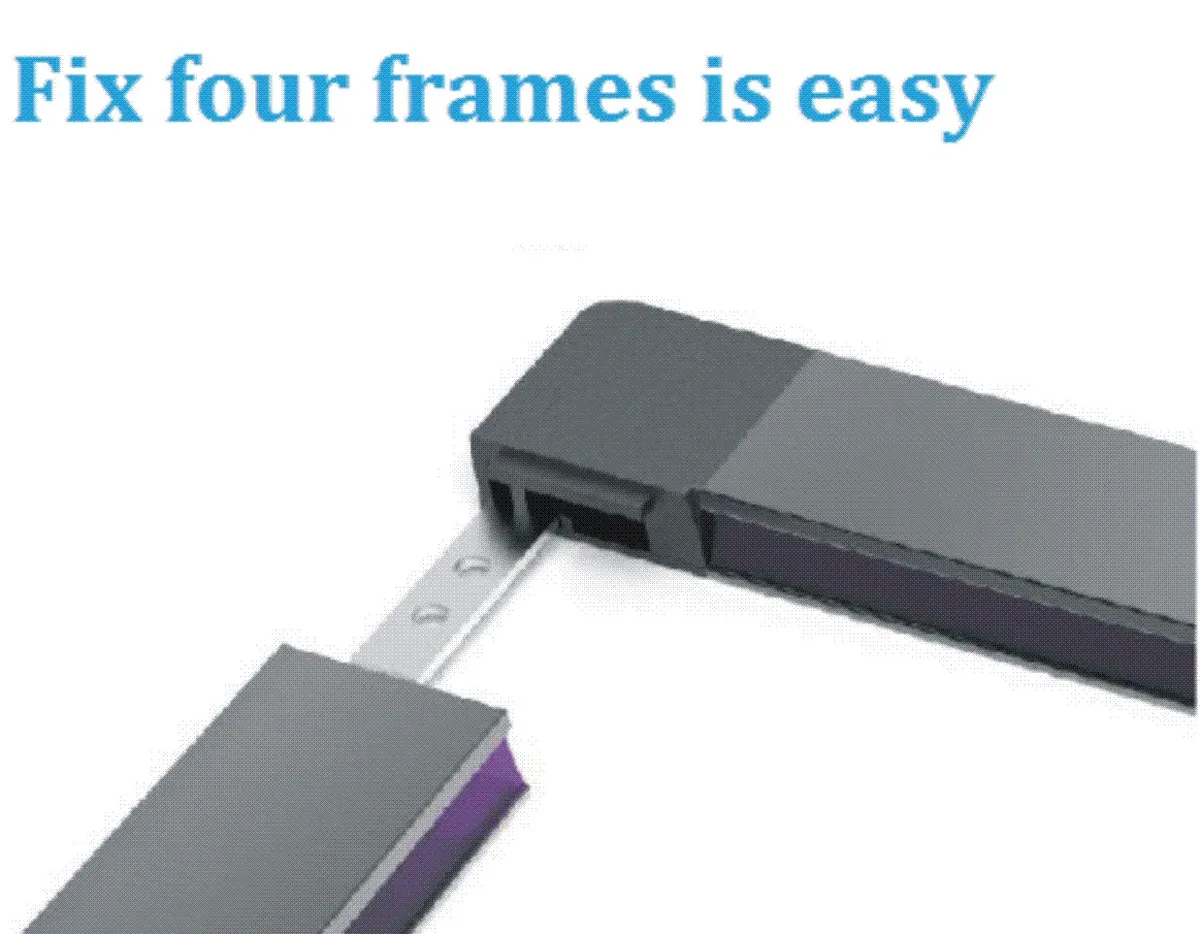

The Guangzhou Goodtouch 98-inch infrared overlay adds ten-point multi-touch to a standard 16:9 display. It is built for kiosks, digital signage, whiteboards and exhibition installations. The frame ships with an installation manual and mounts directly to the monitor bezel. No glass panel is included in the package.

USB Interface With Driver-Free Windows And Linux

The overlay connects through a single USB link and operates without extra drivers on Windows 7, 8, 10 and native Linux. Android systems are supported when the host device includes touch functionality. Mac OS requires a separate HID driver that must be obtained from the manufacturer. Smart TV Android platforms and Raspberry Pi boards are not compatible.

Verify Active Area Dimensions

The touch active area measures 1057 mm by 597 mm with an outer frame of 1095 mm by 635 mm and a 9.4 mm thickness. Confirm that your 16:9 monitor matches these exact dimensions for proper alignment. Ensure the target operating system is listed as supported, particularly for Mac OS or Android TV box deployments.

Highlights

  • 10-point infrared overlay enables multi-user collaboration on a 98" display
  • USB HID interface works driver-free with Windows, Linux and Android
  • Aluminium frame adds only 9.4 mm depth for flush mounting
  • Infrared grid delivers 32768 × 32768 resolution with 2 mm accuracy
  • Operates up to 3000 m altitude and tolerates 75 % sensor damage

Specifications

Monitor TypeTouchscreen Monitor
Cabinet ColorAluminum
Screen Size98"
Touchscreen InterfaceUSB
Style16:9

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 98 inch 10-point overlay or a different size for my display?

Choose the 98 inch model only if your monitor's active area matches the 1057 mm by 597 mm drawing; the frame adds 9.4 mm thickness and the outer dimensions are 1095 mm by 635 mm.

What does the 10-point spec mean when the frame is mounted on a real screen?

It tracks up to 10 simultaneous touches with a minimum object size of 5 mm, 2 mm accuracy and an 8 ms response time, all at up to 450 frames per second.

The USB interface is listed — what does that cap in practice?

USB provides driver-free operation on Windows 7, 8, 10, Linux and Android; macOS requires a HID driver, while Smart TV Android and Raspberry Pi are not supported.
