Aluminium infrared touch frame overlay for 70 inch display

Guangzhou Goodtouch Electronics Co.,LTD

Guangzhou Goodtouch Electronics Co.,LTD 70 inch 10 Points Infrared Touch Screen Overlay

SKU CH-1XQ1-HS5RG

A 70 inch infrared touch frame overlay adds 10 point multi touch to a 75 inch display with USB plug and play on Windows Android and Linux

  • Monitor TypeTouchscreen Monitor
  • Cabinet ColorAluminum
  • Screen Size75"
  • Touchscreen InterfaceUSB
  • Style16:9

Screen Size 75"

  • 27"
  • 82"
  • 80"
  • 85"
  • 75"
  • 98"

Struck-through versions exist but are not stocked here.

  • 10-point infrared touch for multi-user collaboration
  • fits standard 70-inch displays with 16:9 aspect ratio

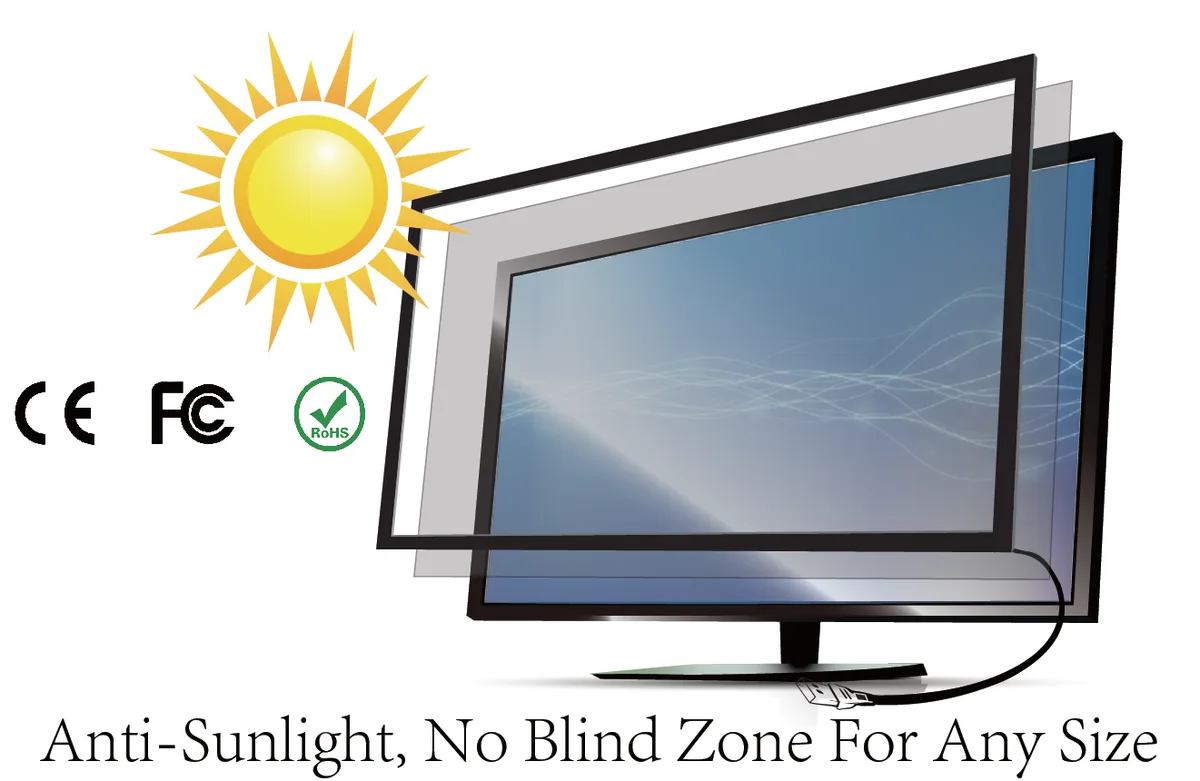

  • aluminium frame resists sunlight glare and drift
  • USB HID interface works driver-free on Windows, Android, Linux
  • simple bracket mounting with included installation manual

70-inch infrared touch overlay

This infrared touch overlay adds multi-touch capability to a 70-inch display. It provides ten simultaneous touch points for interactive kiosks, digital signage and whiteboard applications. The aluminium frame mounts directly onto the screen without glass and connects through a standard USB interface.

Suits integrators adding touch to existing panels

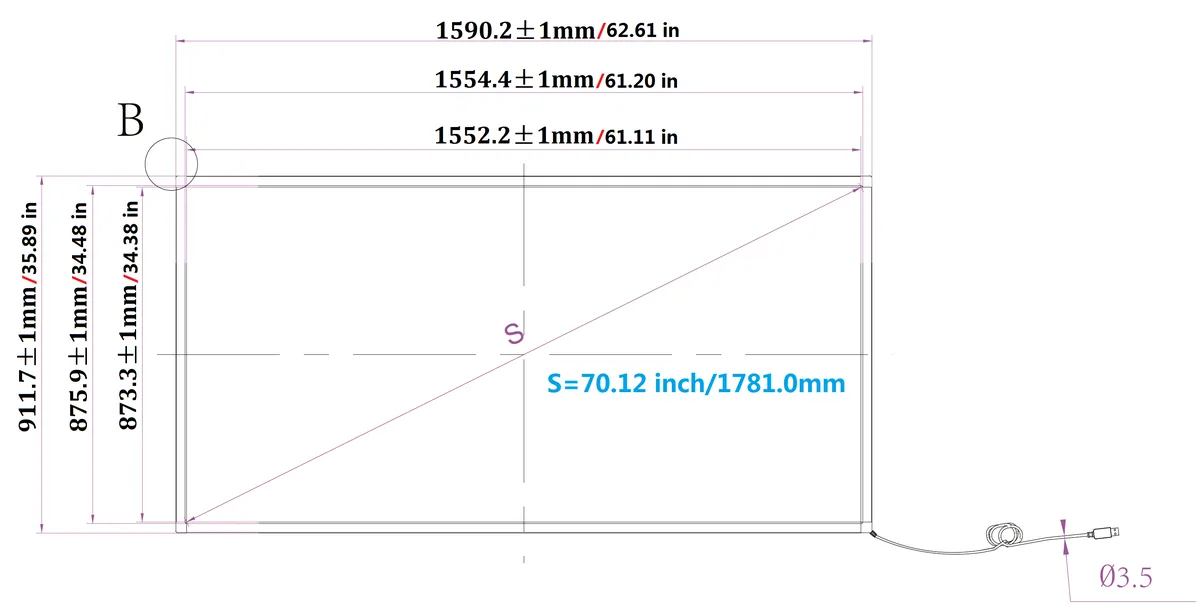

The overlay is built for a specific 70-inch active area, so installers must verify their panel matches the supplied drawing. It is not suited for smaller screens, curved displays or any panel that falls outside the documented dimensions.

10-point infrared touch over USB

Ten-point infrared sensing delivers driver-free operation on Windows, Android and Linux, while macOS requires a HID driver from the supplier. Android TV boxes are not supported unless the box manufacturer confirms touch functionality.

Highlights

  • 10-point infrared touch for multi-user collaboration
  • fits standard 70-inch displays with 16:9 aspect ratio
  • aluminium frame resists sunlight glare and drift
  • USB HID interface works driver-free on Windows, Android, Linux
  • simple bracket mounting with included installation manual

Specifications

Monitor TypeTouchscreen Monitor
Cabinet ColorAluminum
Screen Size75"
Touchscreen InterfaceUSB
Style16:9

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 70 inch or 75 inch version for my display?

The product is a single 70 inch infrared touch frame overlay; the 75 inch figure appears only in a specification row and does not represent a separate model.

How does the 10 point touch capability work on a standard PC?

The frame registers up to 10 simultaneous touch points over USB with no driver needed on Windows, Android or Linux; Mac requires an HID driver available from the manufacturer.

What does the USB interface limit in practice?

USB provides plug and play connectivity for touch data only; it carries no video signal, so a separate video cable is still required for the display.
