Aluminium infrared touch frame overlay for 55 inch display, 10 point multi-touch

Guangzhou Goodtouch Electronics Co.,LTD

Guangzhou Goodtouch Electronics Co.,LTD 55 inch 10 Points Infrared Touch Screen Overlay

SKU CH-8DWH-2HTD5

A 55 inch infrared touch overlay adds 10 point multi touch to compatible displays via USB, works driver free on Windows, Android and Linux, and includes an installation manual for simple mounting

  • Monitor TypeTouchscreen Monitor
  • Cabinet ColorAluminum
  • Screen Size55"
  • Touchscreen InterfaceUSB
  • Style16:9
  • 10-point infrared touch supports multi-user collaboration
  • Anti-light interference prevents drift even in direct sunlight
  • Free driver for Windows, Android and Linux with Mac HID support
  • Aluminium frame adds durability without adding glass weight
  • Simple installation guided by included manual and dimension drawing

55 inch 10 point touch overlay

This 55 inch infrared touch frame adds 10 point multi touch capability to a standard display. It is designed for kiosks, digital signage, interactive whiteboards and exhibition installations. The aluminium frame provides a durable structure for public facing applications. No glass panel is included with the frame.

Anti light interference and free driver support

The infrared technology resists sunlight and ambient light interference without drift during operation. It connects via USB and operates driver free on Windows, Android and Linux systems. Mac iOS support is available through a HID driver obtained from the supplier. Android TV boxes are not supported unless the box manufacturer confirms touch function compatibility.

Simple installation for matching 55 inch displays

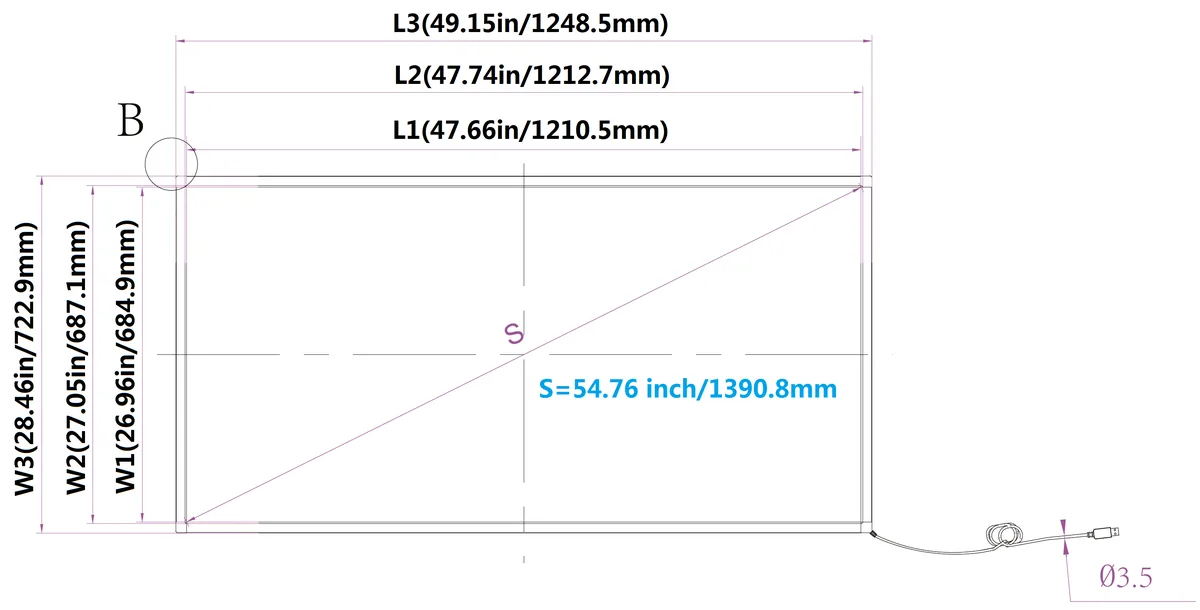

The frame matches a standard 55 inch monitor active area as shown in the supplier dimension drawing. Buyers must verify their display dimensions against the drawing before purchase. Installation is described as very simple with a manual provided in the package. The overlay adds touch function without replacing the existing screen.

Highlights

  • 10-point infrared touch supports multi-user collaboration
  • Anti-light interference prevents drift even in direct sunlight
  • Free driver for Windows, Android and Linux with Mac HID support
  • Aluminium frame adds durability without adding glass weight
  • Simple installation guided by included manual and dimension drawing

Specifications

Monitor TypeTouchscreen Monitor
Cabinet ColorAluminum
Screen Size55"
Touchscreen InterfaceUSB
Style16:9

Questions about this item

How do I align the 55 inch infrared touch frame on my display?

Match the frame to the active area diagonal shown in the drawing, then secure it using the supplied installation manual; the key step is verifying the 16:9 active-area dimensions before tightening.

What component will need replacement after heavy daily use?

The infrared emitters and sensors along the aluminum bezel are the wear items; they can be serviced individually if a touch point stops registering.

At what point does continuous operation hit a limit?

Direct sunlight does not cause drift, so the first limit is the USB cable length or host-controller bandwidth when driving 10 simultaneous touch points.
