GTEK ELECTRONICS 65B1TWAR16256i7 65" 4K interactive digital signage i7 16GB 256GB

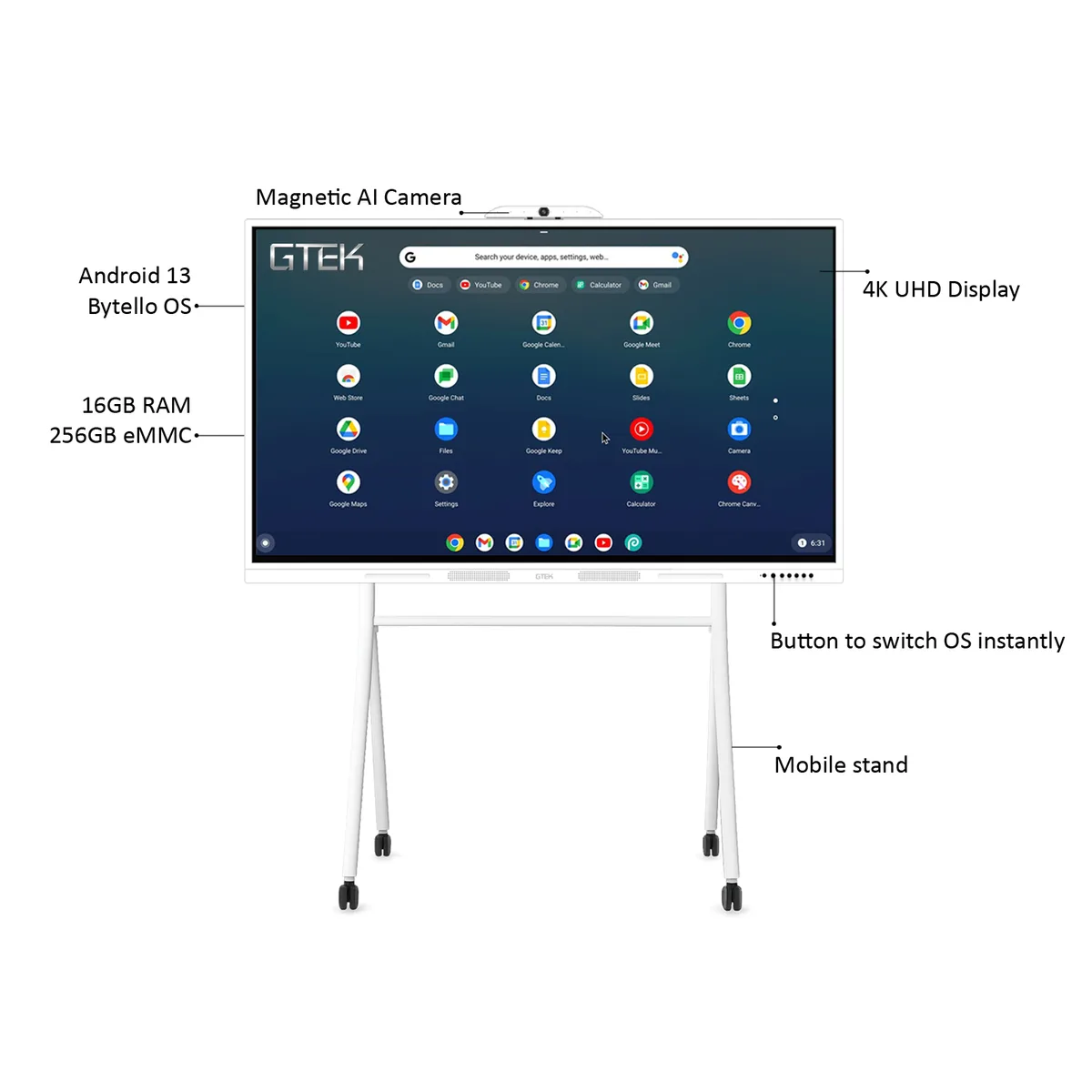

A 65-inch 4K interactive display with infrared 40-point touch, dual OPS slots running Android 13 and Windows i7, 16GB RAM, 256GB storage, 60Hz refresh, 178° viewing angles and 2×16W speakers
- Cabinet ColorWhite
- MemoryAndroid 13: 16GB+256GB Window 7: 16GB+256GB
- OS SupportAndroid 13 & Windows 7
- Touchscreen TypeInfrared
- Screen Size65"
- Display Type4K
- 4K 65-inch display renders crisp 3840 x 2160 visuals
- 40-point infrared touch enables simultaneous multi-user collaboration
- Dual OPS slots run Android 13 and Windows i7 side-by-side
- 16 GB RAM with 256 GB storage on each OS for responsive performance
- Built-in 16 W speakers plus versatile HDMI USB Type-C connectivity
65" 4K Interactive Display

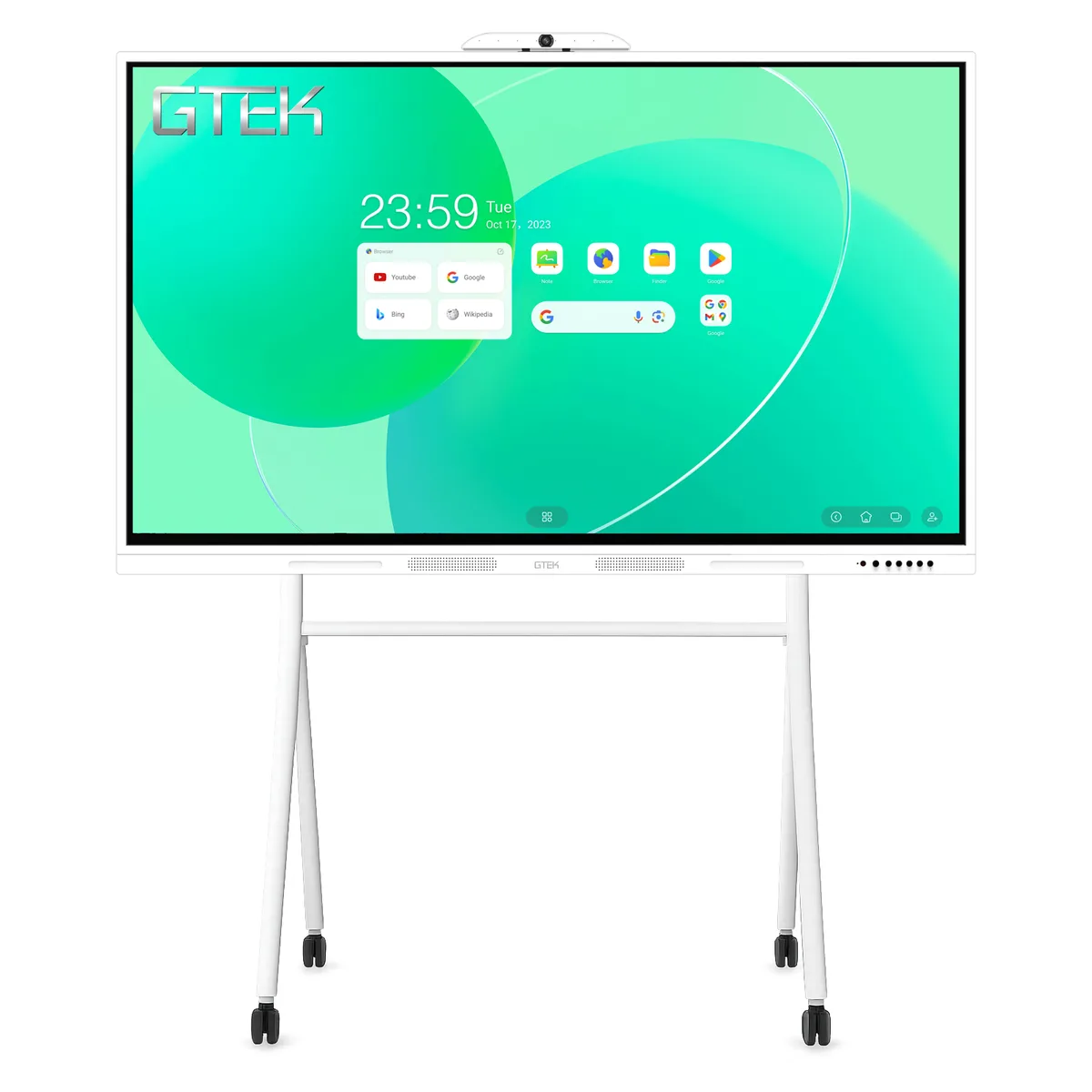

The GTEK ELECTRONICS 65B1TWAR16256i7 is a 65-inch 4K interactive digital signage display designed for classrooms, offices and collaborative workspaces. It combines an infrared touchscreen with dual operating systems, delivering 3840 x 2160 resolution at 60Hz and 178° viewing angles for clear visibility across the room.
Dual OPS Slot Upgrade
The unit integrates a dual OPS slot architecture that allows switching between Google EDLA-certified Android 13 and Windows 11 on an Intel i7-13620H module, each with 16GB RAM and 256GB storage. This replaces the need for separate media players or external PCs when moving between lightweight annotation apps and full desktop software such as Microsoft Office or data-heavy applications.
Installation and Common Issues
The display accepts 100–240 VAC power and provides one DisplayPort, one HDMI, one D-Sub, two USB 2.0 and four USB 3.0 ports for peripheral connectivity. Infrared touch supports up to 40 simultaneous points with palm rejection; calibration drift can occur if strong ambient infrared sources are present, and the 460W maximum draw requires a circuit rated for the load.
Highlights
- 4K 65-inch display renders crisp 3840 x 2160 visuals
- 40-point infrared touch enables simultaneous multi-user collaboration
- Dual OPS slots run Android 13 and Windows i7 side-by-side
- 16 GB RAM with 256 GB storage on each OS for responsive performance
- Built-in 16 W speakers plus versatile HDMI USB Type-C connectivity
Specifications
| Brand | GTEK |
|---|---|
| Model | 65B1TWAR16256i7 |
| Cabinet Color | White |
| Memory | Android 13: 16GB+256GB Window 7: 16GB+256GB |
| OS Support | Android 13 & Windows 7 |
| Touchscreen Type | Infrared |
| Screen Size | 65" |
| Display Type | 4K |
| Resolution | 3840 x 2160 (4K) |
| Refresh Rate | 60Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Response Time | 8ms |
| D-Sub | 1 |
| DisplayPort | 1 |
| HDMI | 1 |
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| Power Supply | 100 - 240 VAC, 50/60Hz |
| Power Consumption | Max Power: 460W Standby Power: <=0.5W |
| Built-in Speakers | 2 x 16W + 16W |
| VESA Compatibility - Mountable | 500 x 400mm |
| Package Contents | 1 x Power Cord 2 x Stylus Pen 1 x Wall Mount 1 x Quick Start |
| Dimensions | 35.56" x 58.45" x 4.56" |
| Weight | 90.83 lbs. |
| Shipping weight | 48.20 kg |
| Package size | 1630 × 1050 × 220 mm |
Questions about this item
What wall-mount pattern fits the 65" panel?
The 65-inch display uses a standard VESA mount; verify the hole spacing on the back of the cabinet before ordering a bracket.
Which slot do I use first when installing the Windows i7 OPS module?
Insert the Windows i7 OPS into either of the two OPS slots, then power on and select the Windows input to complete the dual-OS setup.
How do I clean the infrared touch frame without damaging the 40-point sensors?
Power off the screen, then wipe the glass and frame with a slightly damp microfibre cloth; avoid spraying liquid directly on the infrared bezels.
