Green PCB with silver PCIe x16 edge connector, large silver aluminium heatsink cover, four M.2 slots visible

GSM Outdoors

GSM Outdoors Sintech Quad NVMe SSD PCIe Adapter 2 in 1 accessory

SKU CH-QSH3-APW29

Adds four M.2 NVMe SSDs via a PCIe 4.0 x16 slot with an aluminium heatsink and per-drive LEDs

  • Add four NVMe drives at full speed via PCIe 4.0 x16 bifurcation
  • Fits 2230, 2242, 2260 and 2280 M.2 NVMe SSDs only
  • Large aluminium heatsink keeps SSD temperatures low under load
  • Individual LED indicators show the working status of each drive
  • Requires motherboard with PCIe x16 bifurcation support such as X299 or X399

Quad NVMe expansion card

The Sintech adapter installs in a PCIe 4.0 or 3.0 x16 slot and holds four M.2 NVMe drives at the same time. It is built for users whose motherboard and CPU provide x16 bifurcation so each drive can run at full x4 speed.

Sustained throughput with active cooling

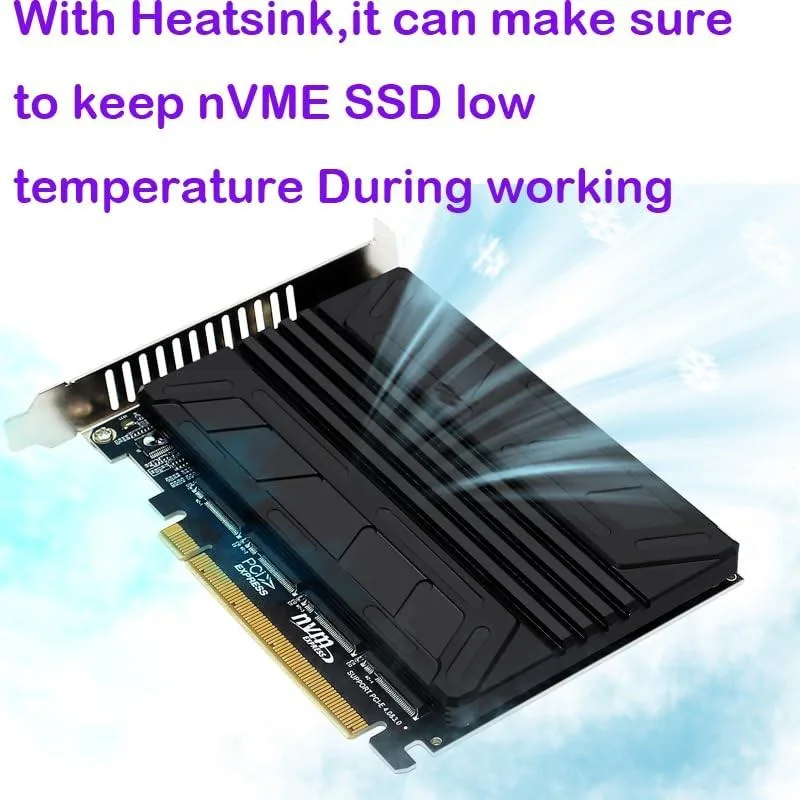

A large aluminium heatsink covers all four drives to prevent thermal throttling during long transfers. Individual LEDs show the working status of each SSD so you can monitor activity without software tools.

Bifurcation-dependent mounting

The card requires a motherboard that can split the x16 link into four x4 links in the BIOS; without that setting only one drive is recognised. It accepts 2230, 2242, 2260 and 2280 NVMe modules but does not support M.2 SATA drives or hardware RAID.

Highlights

  • Add four NVMe drives at full speed via PCIe 4.0 x16 bifurcation
  • Fits 2230, 2242, 2260 and 2280 M.2 NVMe SSDs only
  • Large aluminium heatsink keeps SSD temperatures low under load
  • Individual LED indicators show the working status of each drive
  • Requires motherboard with PCIe x16 bifurcation support such as X299 or X399

Specifications

No published specifications for this item yet.

Questions about this item

How much heat does the aluminum heatsink dissipate when four NVMe SSDs run at full 32Gbps each all day?

The large aluminum heatsink cover is designed to keep SSD temperatures low and prevent speed drops from excessive heat during continuous operation.

What motherboard and CPU features are required before the adapter can recognise all four M.2 NVMe SSDs?

You need a PCIe 4.0 or 3.0 x16 slot, motherboard BIOS support for PCIe x16 bifurcation set to x4x4x4x4, and a CPU with enough lanes to drive four NVMe drives.

Will the card work in an older X299 or X399 system that only supports PCIe 3.0 x16 bifurcation?

Yes, the adapter is compatible with X299 and X399 motherboards that support PCIe x16 bifurcation, running at PCIe 3.0 speeds for each of the four NVMe SSDs.
