Small white plastic security camera, rectangular cube shape, 2.8mm wide-angle lens front, compact indoor surveillance device

GSM Outdoors

GSM Outdoors DST-AHD15BWHorizontal 2 in 1 accessory

SKU CH-NM46-Z3H2H MPN DST-AHD15BWHorizontal

Mini 1080p security camera with 2.8 mm lens and 140-degree view, switchable between AHD, TVI, CVI and CVBS for 4-in-1 DVRs

  • 1080P resolution captures clear detail
  • 140-degree wide angle covers large areas
  • 4-in-1 output works with AHD, TVI, CVI, CVBS
  • 001 lux sensitivity performs in low light
  • Compact 0.59 x 0.59 x 0.91 inch housing fits tight spaces

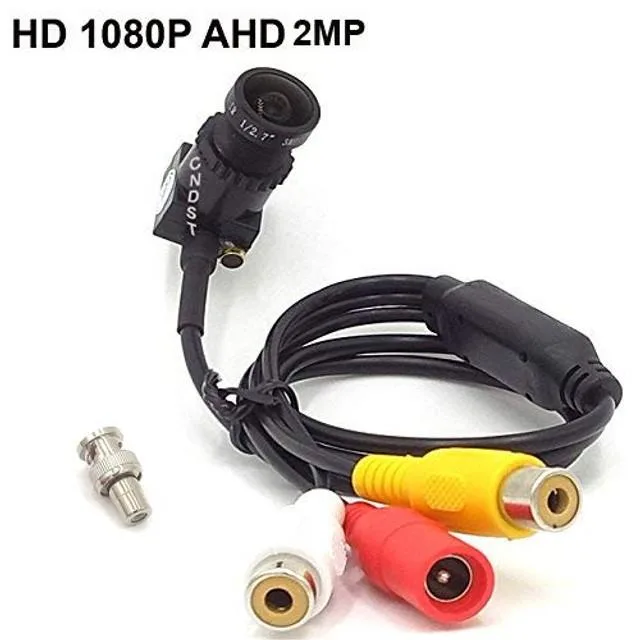

Mini 1080P security camera

This compact camera delivers 2.0 megapixel 1080P resolution with a 140 degree wide angle view. It supports four video formats including AHD TVI CVI and CVBS for flexible DVR compatibility. The plastic housing measures 0.59 by 0.59 by 0.91 inch and weighs 65 grams. It operates on DC 12V power with a 75mA draw.

Buyers needing indoor day and night monitoring

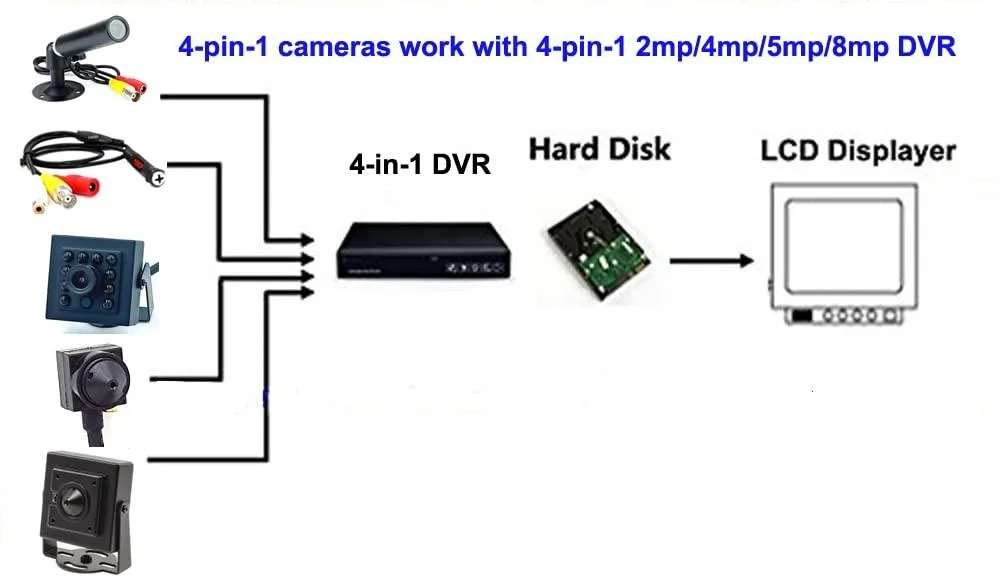

The camera works in daytime and night with light but picture quality drops under very low light conditions. It requires a 1080P 4-in-1 DVR that supports AHD TVI CVI CVBS or 960H signals. Buyers who need built in audio capture should look elsewhere as there is no microphone. Those wanting outdoor rated hardware or advanced smart detection features will not find them here.

Fits standard coaxial surveillance builds

A 2.8mm lens provides the 140 degree field of view for broad coverage. Video transmits up to 500 metres over common 75-3 coaxial cable. The unit needs a DC 12V 1A power adapter and a compatible 4-in-1 DVR to function. It frees up installation space with its tiny footprint and wide angle lens reducing the number of cameras required.

Highlights

  • 1080P resolution captures clear detail
  • 140-degree wide angle covers large areas
  • 4-in-1 output works with AHD, TVI, CVI, CVBS
  • 001 lux sensitivity performs in low light
  • Compact 0.59 x 0.59 x 0.91 inch housing fits tight spaces

Specifications

No published specifications for this item yet.

Questions about this item

What type of DVR is required for this camera to operate?

The camera requires a 1080P 4-in-1 DVR that supports AHD, CVI, TVI and CVBS signals; it will not work with other recorder types.

Can this camera share the same coaxial cable run as older 960H analog cameras?

Yes, the camera supports 960H CVBS output alongside 1080P formats, so it can be viewed on a DVR channel that also handles legacy 960H cameras.

How can I confirm the camera is transmitting a valid 1080P picture after installation?

Verify the DVR displays a 1920x1080@30fps NTSC image with a signal-to-noise ratio above 46dB and the OSD menu responds to coaxial control commands.
