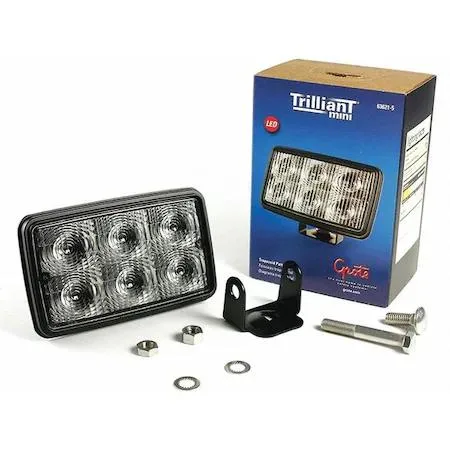

Rectangular LED flood light with bracket mount, black housing, blunt-cut wires

Grote

Grote 63621-5 700lm Rectangular LED Flood Light

SKU CH-R698-RT93T

Rectangular 700 lm LED flood light with IP69K rating, trapezoid beam and 12 V DC blunt-cut wiring for vehicle classes 10 through 13

  • 700 lumens LED output for bright worksite illumination
  • IP69K rating withstands high-pressure washdown and dust ingress
  • Trapezoid beam pattern spreads light across a wide work area
  • 12 V DC operation suits Class 3–13 commercial vehicles
  • Bracket mount with blunt-cut wires enables quick installation

Grote 63621-5 700lm Rectangular LED Flood Light

This rectangular LED flood light delivers 700 lumens of output in a 12V DC format. It carries an IP69K rating for high-pressure wash-down resistance. The unit measures 3 5/8 inches high by 5 13/16 inches wide with a 2 7/16 inch depth. It connects via blunt cut wires for direct wiring.

Upgrade from halogen or sealed-beam work lamps

The LED technology replaces older halogen or sealed-beam units on Class 3 through 13 vehicles. The jump is worth it when you need longer service life and lower current draw. The trapezoid beam pattern suits broad area illumination. ECE R10 and Directive 72/245/EEC compliance supports regulated fleets.

Suits commercial trucks.

The bracket mount and removable design fit temporary or permanent installations. Buyers who need a different beam shape or a stud-mount housing should look elsewhere. Fleets requiring a specific voltage outside 12V DC will need an alternative solution.

Highlights

  • 700 lumens LED output for bright worksite illumination
  • IP69K rating withstands high-pressure washdown and dust ingress
  • Trapezoid beam pattern spreads light across a wide work area
  • 12 V DC operation suits Class 3–13 commercial vehicles
  • Bracket mount with blunt-cut wires enables quick installation

Specifications

BrandGROTE

Questions about this item

What bracket and clearance does the 3-5/8" high rectangular housing need for mounting?

The light uses a removable bracket mount and measures 3 5/8 in high by 5 13/16 in wide with a 2 7/16 in depth, so allow that footprint plus wiring room.

How do I wire the blunt-cut leads on a 12 V DC system without reversing polarity?

Connect the blunt-cut wires to a fused 12 V DC circuit, matching positive to positive and negative to ground; the IP69K seal stays intact only if the grommet seats fully.

When should I replace the 700 lm LED module or reseal the IP69K housing?

Replace the unit if output drops noticeably or if the lens cracks; the IP69K rating holds as long as the housing and bracket gaskets stay undamaged.
