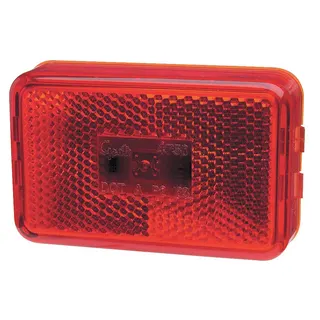

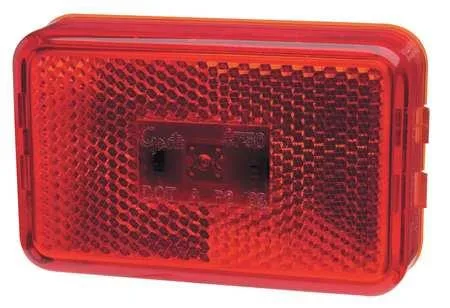

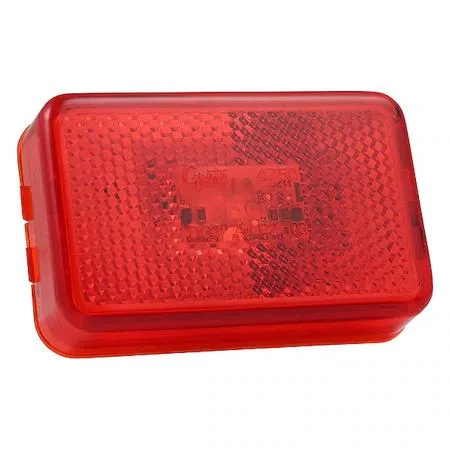

Rectangular red LED clearance light with clear lens and grommet mount

Grote

Grote 47502 Red LED Clearance Marker Light 3-1/8 In

SKU CH-0QPR-HKG35

Red LED clearance marker light with hermetic lens seal and PL-10 connector meets FMVSS 108 and SAE A, P2 standards

  • ColorRed
  • Red LED draws only 0.06 A for efficient low-power operation
  • Hermetic lens-to-housing seal blocks moisture and road debris
  • Meets FMVSS 108 and SAE A, P2 standards for legal road use
  • PL-10 connector fits Grote models 66800, 66801, 66840, 66850, 66851, 67001, 67050
  • Polycarbonate housing resists impact and UV exposure for long service life

Grote 47502 Red LED Clearance Light

The Grote 47502 is a rectangular red LED clearance marker light designed for RV and trailer visibility. It measures 3-1/8 inches wide by 2 inches high and uses a PL-10 connector for installation. The lens and housing are sonically sealed for a hermetic barrier against moisture and road debris. This light meets FMVSS 108 and SAE P2 standards for side marker clearance.

Suits RVs and trailers needing side clearance

This light fits owners replacing a damaged Grote 47502 or upgrading an incandescent marker to LED on a compatible grommet mount. It draws only 0.06 amps, reducing electrical load on older wiring harnesses. Builders requiring an amber front marker or a light with a different bolt pattern should look elsewhere. Vehicles needing a light with a built-in flange mount cannot use this model.

PL-10 connector and 66800 series grommets

The single specification that decides fitment is the PL-10 electrical connection paired with a grommet mount. This light requires a compatible grommet such as Grote models 66800, 66801, 66840, 66850, 66851, 67001, or 67050 to install correctly. Without the correct grommet and connector, the light cannot be mounted or wired to the vehicle harness.

Highlights

  • Red LED draws only 0.06 A for efficient low-power operation
  • Hermetic lens-to-housing seal blocks moisture and road debris
  • Meets FMVSS 108 and SAE A, P2 standards for legal road use
  • PL-10 connector fits Grote models 66800, 66801, 66840, 66850, 66851, 67001, 67050
  • Polycarbonate housing resists impact and UV exposure for long service life

Specifications

BrandGROTE
ColorRed

Questions about this item

What connector does the Grote 47502 require to plug into my trailer harness?

It uses a PL-10 connector and is compatible with Grote models 66800, 66801, 66840, 66850, 66851, 67001, and 67050.

Will the 47502 meet the same FMVSS 108 requirements as my original incandescent clearance lights?

Yes, it is certified to FMVSS 108 and carries SAE lens codes A and P2 for legal clearance-marker use.

How can I confirm the 47502 is operating correctly once installed?

Verify the red LED illuminates steadily at 0.06 A draw and check that the hermetic lens-to-housing seal shows no moisture ingress.
