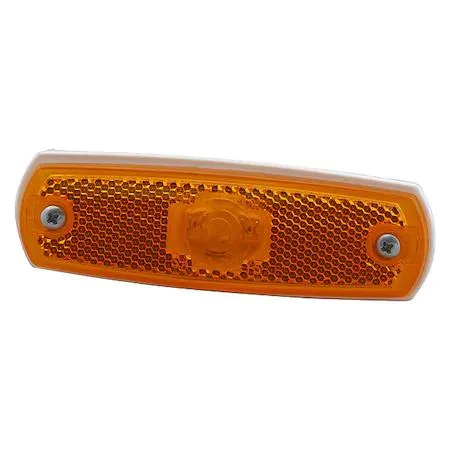

Rectangular amber LED clearance lamp with built-in reflector

Grote

Grote 47263 Clearance Marker Lamp machine shop hardware

SKU CH-NA1P-BR9JH

An LED clearance marker lamp with a rectangular amber lens, built-in reflector and screw mounting that meets FMVSS 108 and SAE A, P2 standards

  • LED clearance marker lamp with built-in reflector
  • Meets FMVSS 108 and SAE A, P2 standards
  • Amber rectangular lens made of acrylic
  • Male bullet connector draws 0.06 A
  • 10-year manufacturer warranty included

Grote 47263 Clearance Marker Lamp

The Grote 47263 is a rectangular LED clearance marker lamp designed for permanent installation on commercial vehicles and trailers. It features an amber acrylic lens and a polypropylene housing with a built-in reflector for enhanced visibility. The lamp meets FMVSS 108 standards and carries SAE lens codes A and P2. It operates on a low 0.06 A current draw and includes two LED diodes for reliable illumination.

Verify mounting and electrical compatibility

Confirm that your vehicle or trailer has a flat surface suitable for screw mounting the rectangular housing measuring 5 inches wide by 1 3/4 inches high. Ensure the electrical system provides the correct voltage for the 0.06 A LED circuit and that a male bullet connector matches your existing wiring harness. The lamp is designed for permanent installation, so verify the mounting location allows for secure fastener access before ordering.

Replaces incandescent clearance lamps

This LED unit serves as a direct replacement for older incandescent clearance marker lamps that use the same screw-mount footprint and bullet-connector wiring. The upgrade is worth it when you need longer service life backed by a 10-year manufacturer warranty, lower power consumption, and improved vibration resistance. It is not suited for applications requiring a round lamp profile, a different lens colour, or a plug-in connector style other than the male bullet type.

Highlights

  • LED clearance marker lamp with built-in reflector
  • Meets FMVSS 108 and SAE A, P2 standards
  • Amber rectangular lens made of acrylic
  • Male bullet connector draws 0.06 A
  • 10-year manufacturer warranty included

Specifications

BrandGROTE

Questions about this item

What comes in the box and do I need to buy mounting hardware or wiring separately?

The lamp ships as a single rectangular unit with an integrated acrylic lens, polypropylene housing, built-in reflector and a male bullet connector. Mounting screws and any extension wiring are not included.

The specs list FMVSS 108 and SAE codes A, P2 — which version meets my trailer lighting requirements?

This single model carries both FMVSS 108 compliance and SAE lens codes A and P2, so it satisfies front and side clearance-marker requirements without needing a different variant.

What does the 0.06 A current draw mean when the lamp is installed on my vehicle?

At 0.06 amps the LED lamp places minimal load on the circuit, allowing multiple units to run on a standard lighting fuse without voltage-drop concerns.
