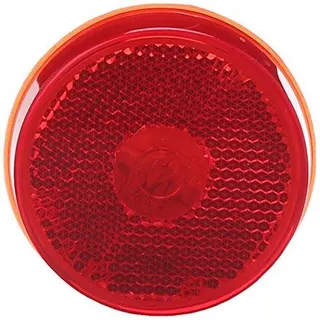

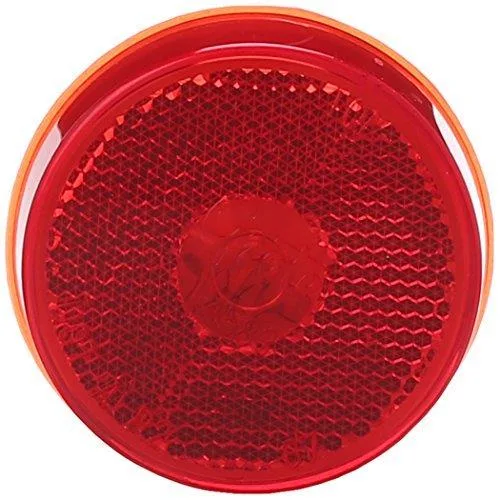

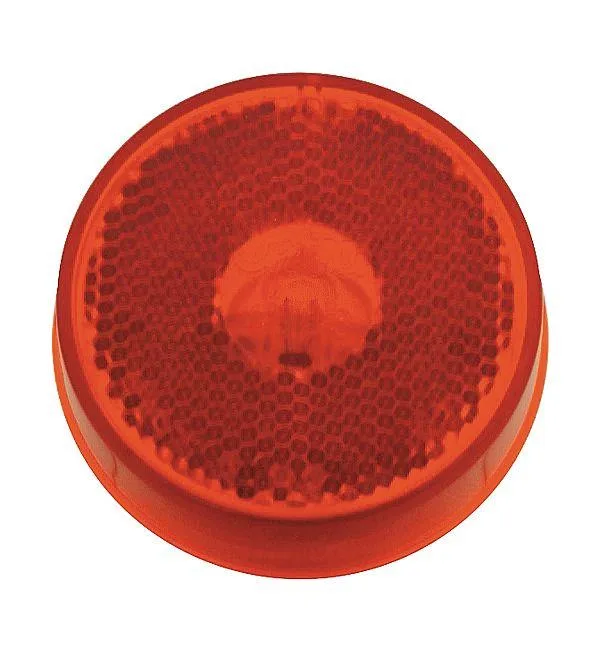

Round red reflector lamp with bracket mount and PL-10 connector

Grote

Grote 45832 Red Marker Lamp Reflector 2-1/2 In RV Lighting

SKU CH-QQ2G-RKXX7

Red 2-1/2 inch clearance marker lamp with hermetic lens seal, FMVSS 108 compliant, compatible with PL-10 connectors 66800, 66801, 66840, 66850, 66851, 67001, 67050

  • ColorRed
  • Red clearance light meets FMVSS 108 and SAE A, P2, P3 standards
  • Hermetic lens-to-housing seal blocks moisture and road debris
  • Incandescent lamp draws .33 A at 10 V for low power use
  • PL-10 connector fits Grote 66800, 66801, 66840, 66850, 66851, 67001, 67050
  • Polycarbonate acrylic lens resists impact and UV fading

Grote 45832 Red Marker Lamp Identity

The Grote 45832 is a red clearance marker lamp built for recreational vehicles and trailers. It uses an incandescent light source behind a round polycarbonate or acrylic lens. The lamp meets FMVSS 108 and SAE lens codes A, P2 and P3 for legal road use. Fleet operators and RV owners fitting replacement clearance lights will find it matches the required signalling function.

Sustained Operation Behaviour

The incandescent bulb draws a steady 0.33 A when powered, so heat output remains constant during extended night driving. A hermetic lens-to-housing seal keeps moisture and road spray from reaching the filament, preventing corrosion that can cause premature failure. The sealed design maintains consistent light output over long periods without the flicker sometimes seen in unsealed assemblies. Bracket or grommet mounting keeps the lamp secure under vibration.

Pre-Installation Checks

Verify that the vehicle wiring uses a PL-10 connector compatible with manufacturer models 66800, 66801, 66840, 66850, 66851, 67001 or 67050. Confirm the mounting surface suits either bracket or grommet attachment and that the 2 1/2 in overall diameter fits the existing cut-out. Buyers who need a different lens colour or an LED light source should look elsewhere.

Highlights

  • Red clearance light meets FMVSS 108 and SAE A, P2, P3 standards
  • Hermetic lens-to-housing seal blocks moisture and road debris
  • Incandescent lamp draws .33 A at 10 V for low power use
  • PL-10 connector fits Grote 66800, 66801, 66840, 66850, 66851, 67001, 67050
  • Polycarbonate acrylic lens resists impact and UV fading

Specifications

BrandGROTE
ColorRed

Questions about this item

How much current does the 45832 draw when it runs continuously?

The incandescent lamp draws 0.33 A at its rated voltage, so heat and power stay consistent during all-day operation.

Which connector must my vehicle already have for this lamp to plug in?

It requires a PL-10 connector and is compatible with Grote models 66800, 66801, 66840, 66850, 66851, 67001 and 67050.

Will the 45832 meet the same FMVSS 108 requirements as my existing clearance lights?

Yes, the lens carries SAE codes A, P2 and P3 and is certified to FMVSS 108, matching the legal standard for side-marker lamps.
