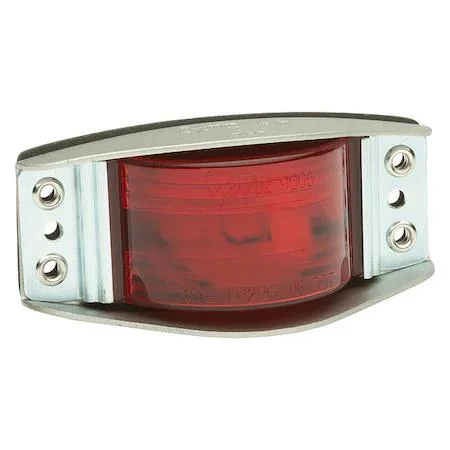

Red rectangular clearance marker lamp with steel housing and acrylic lens

Grote

Grote 45172 Clearance Marker Lamp Machine Shop Hardware

SKU CH-36PN-MYVB9

Clearance marker lamp meets FMVSS 108 and SAE P2, P3, PC standards with a steel housing and acrylic lens

  • FMVSS 108 compliant for legal road use
  • Seal-Tight rubber gasket blocks moisture and debris
  • Steel housing with acrylic lens resists impact
  • 33 A draw keeps electrical load low
  • Blunt-cut wires simplify permanent installation

Grote 45172 Clearance Marker Lamp

The Grote 45172 is a rectangular incandescent clearance marker lamp with a red acrylic lens and steel housing. It meets FMVSS 108 standards and carries SAE lens codes P2, P3, and PC. A seal-tight expanded rubber gasket protects the single bulb. Permanent screw mounting and blunt-cut wires simplify installation on commercial vehicles.

Suits commercial vehicle lighting needs

This lamp fits fleets and owner-operators replacing a damaged clearance light or equipping a trailer to meet DOT visibility rules. The incandescent source draws 0.33 A and uses a simple blunt-cut connection. Buyers who want more light output per watt, a sealed LED module, or a different lens colour should look at something else.

FMVSS 108 compliance and SAE P2 P3 PC codes

The decisive specification is the FMVSS 108 certification with SAE lens codes P2, P3, and PC, which legally qualify the lamp for front, side, and rear clearance identification on US and Canadian highways. Without these markings the part cannot be used for required safety lighting. The 0.33 A draw and screw-mount footprint complete the fit check.

Highlights

  • FMVSS 108 compliant for legal road use
  • Seal-Tight rubber gasket blocks moisture and debris
  • Steel housing with acrylic lens resists impact
  • 33 A draw keeps electrical load low
  • Blunt-cut wires simplify permanent installation

Specifications

BrandGROTE

Questions about this item

What current does the Grote 45172 draw when powered at its rated voltage?

The lamp draws 0.33 A, which is the rated current listed in the specifications for this clearance marker lamp.

Which safety standards does the FMVSS 108 marking on the 45172 cover in practice?

FMVSS 108 governs lamp performance for clearance and marker functions, and the SAE lens codes P2, P3, and PC confirm the lens meets photometric and colour requirements for those roles.

What mounting hardware and clearance does the screw-mount 45172 need to fit?

The lamp installs with screws through its rectangular steel housing, measuring 2 1/8 inches high by 3 13/16 inches wide, and uses a Seal-Tight expanded rubber gasket for a weather-resistant seal.
