Grandstream

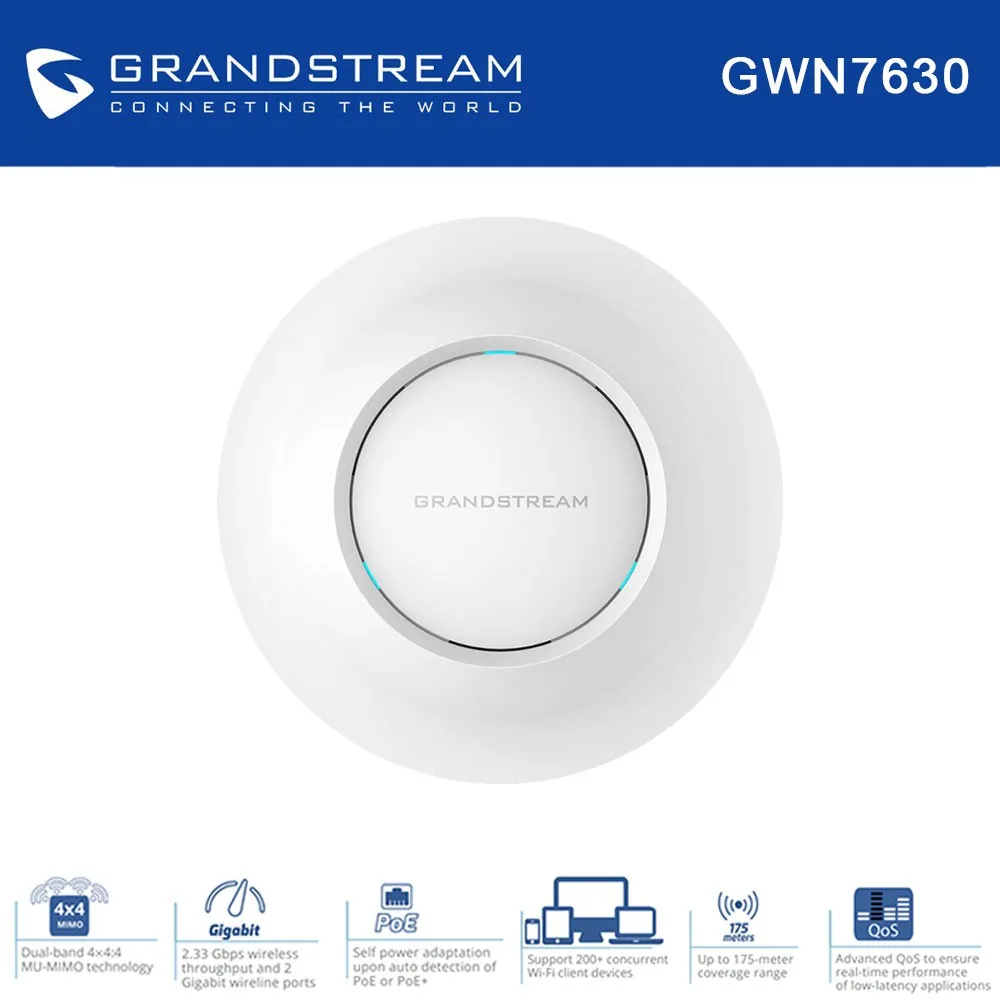

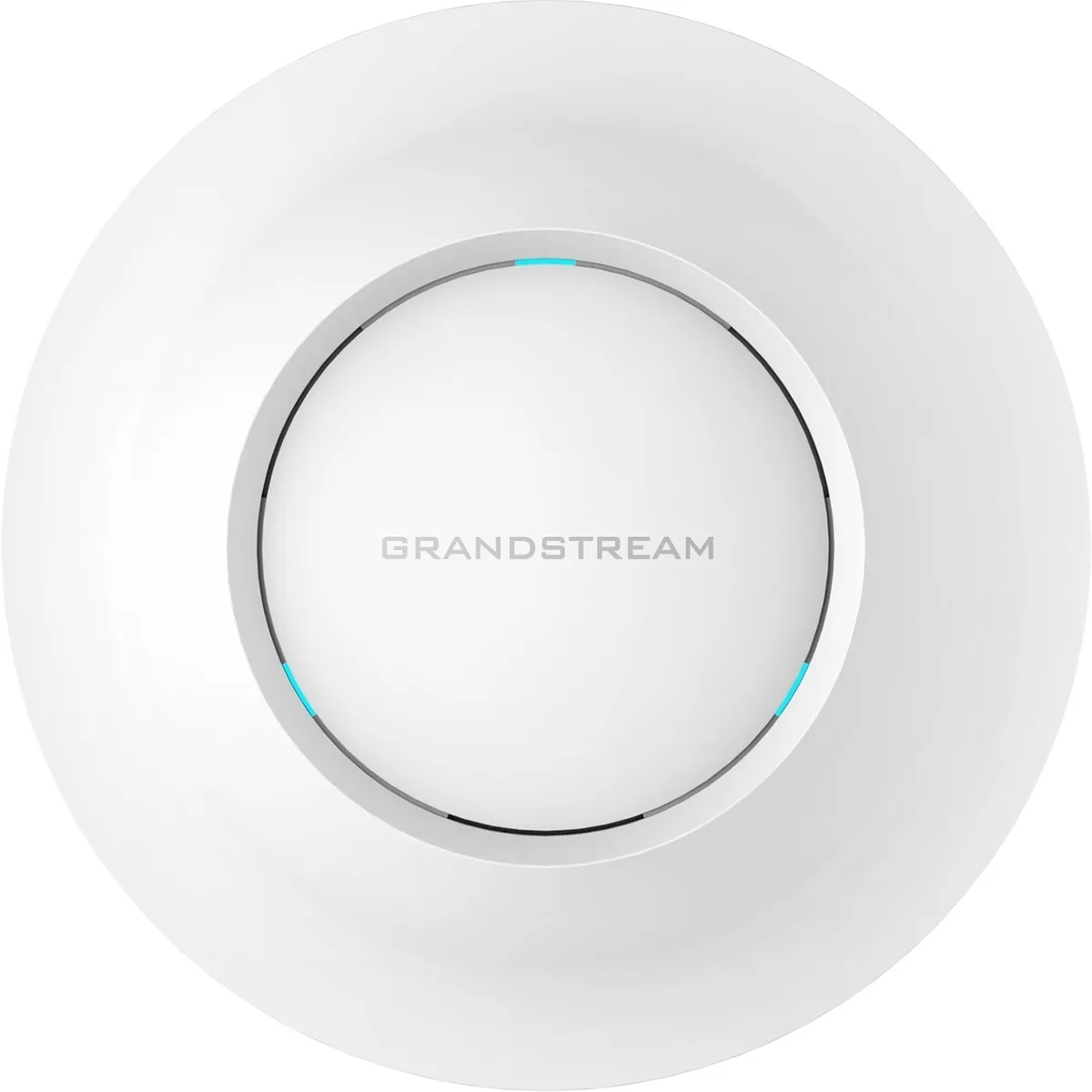

Grandstream GWN7630 802.11ac 2.33 Gbit/s access point
Dual-band 4×4 MU-MIMO access point delivers 2.33 Gbit/s wireless throughput and two Gigabit Ethernet ports with PoE+ auto-detection.
- Standards802_11_AC
- Wireless Data Rates2330 megabits_per_second
- SecurityWPA2-PSK
- Antenna4
- Interface2
- LAN Ports2
- Delivers 2.33 Gbit/s wireless throughput for high-density environments
- Dual-band 4x4 MU-MIMO supports 200+ concurrent client devices
- Embedded controller manages up to 50 local GWN series APs
- Auto-detects PoE or PoE+ for flexible power deployment
- Two Gigabit Ethernet ports provide wired backhaul connectivity
Enterprise dual-band access point
The Grandstream GWN7630 is a ceiling or wall mountable wireless access point built for commercial environments. It delivers up to 2.33 Gbit/s aggregate throughput across 2.40 GHz and 5 GHz bands using 4x4 MU-MIMO antenna arrays. Two Gigabit Ethernet ports provide wired backhaul and PoE input. An embedded controller manages up to 50 local GWN series units while gwn.Cloud enables unlimited centralised management.
Replaces single-band or 2x2 APs
Sites running older single-band hardware or 2x2 MIMO access points gain the extra spatial streams and dual-band capacity needed for 200 plus concurrent clients. The jump is worthwhile when client density exceeds the radio resources of legacy units or when roaming between APs requires a unified controller. Existing PoE or PoE+ switches power the device automatically without injector changes.
Verify PoE budget and mounting surface
Confirm the switch port supplies 48 volts DC compliant with PoE or PoE+ standards for the PD port. Ensure the ceiling or wall can support the 590 gram unit and that the 205.3 by 205.3 by 45.9 millimetre footprint fits the planned location. Check that two Gigabit RJ45 ports satisfy the wired uplink and any downstream device requirements.
Highlights
- Delivers 2.33 Gbit/s wireless throughput for high-density environments
- Dual-band 4x4 MU-MIMO supports 200+ concurrent client devices
- Embedded controller manages up to 50 local GWN series APs
- Auto-detects PoE or PoE+ for flexible power deployment
- Two Gigabit Ethernet ports provide wired backhaul connectivity
Specifications
| Brand | Grandstream |
|---|---|
| Model | GWN7630 |
| Part Number | GWN7630 |
| Standards | 802_11_AC |
| Wireless Data Rates | 2330 megabits_per_second |
| Security | WPA2-PSK |
| Antenna | 4 |
| Interface | 2 |
| LAN Ports | 2 |
| MIMO | WPS |
| Power Supply | 48 volts_of_direct_current |
| Compliance | YZZGWN7630 |
| Dimensions | 205.3 in x 205.3 in x 45.9 in |
| Weight | 590 grams |
| Features | WPS |
| Shipping weight | 1.36 kg |
| Package size | 413 × 305 × 108 mm |
Questions about this item
What size opening does the 205.3 mm diameter ceiling mount need?
The unit is 205.3 mm wide and 45.9 mm high; the ceiling cut-out should match the 205.3 mm diameter and allow at least 45.9 mm depth for the body.
Which port should I plug the Ethernet cable into for PoE power?
Either of the two Gigabit RJ-45 ports accepts PoE or PoE+; the AP auto-detects the power class, so use whichever port reaches your switch.
How often should I clean the internal antennas?
The four internal antennas are sealed inside the housing; no periodic cleaning is required, just keep the exterior vents free of dust.
