Small rectangular capture box, matte black, VGA in and out plus USB 3.0 cable attached

GRACETOP

GRACETOP GTUS-V2US3EE VGA capture card 720P 30fps

SKU CH-5ZTX-190DC

Captures VGA sources at 720P 30fps with loop-out, driver-free on Windows, Mac, Linux and Android

  • USB Port1
  • VGA1 Input/1 Output
  • Digital Aduio1
  • OptionVGA Capture Card

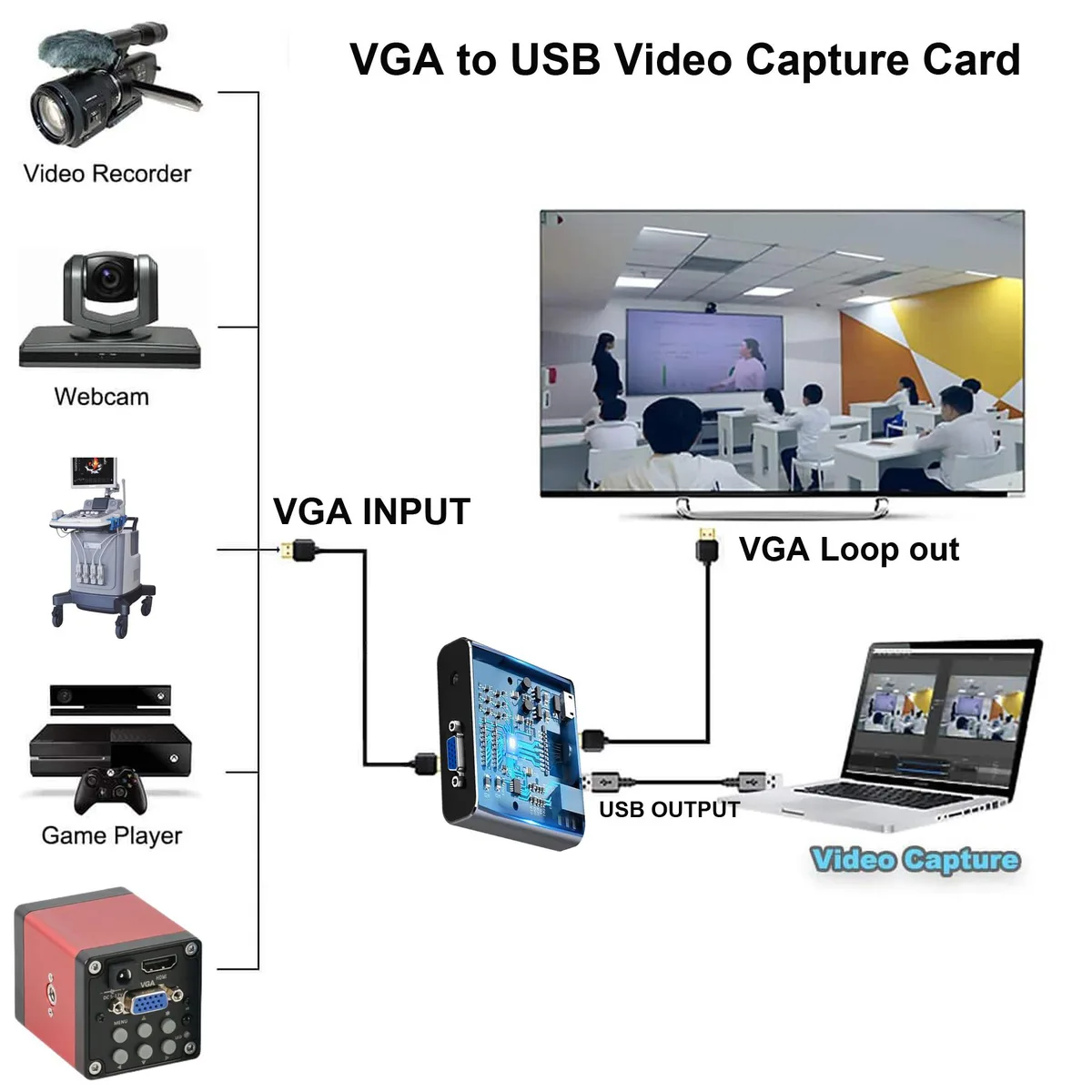

  • VGA capture up to 720P at 30fps with zero-latency loop-out
  • Plug-and-play on Windows, Mac, Linux and Android without driver installation

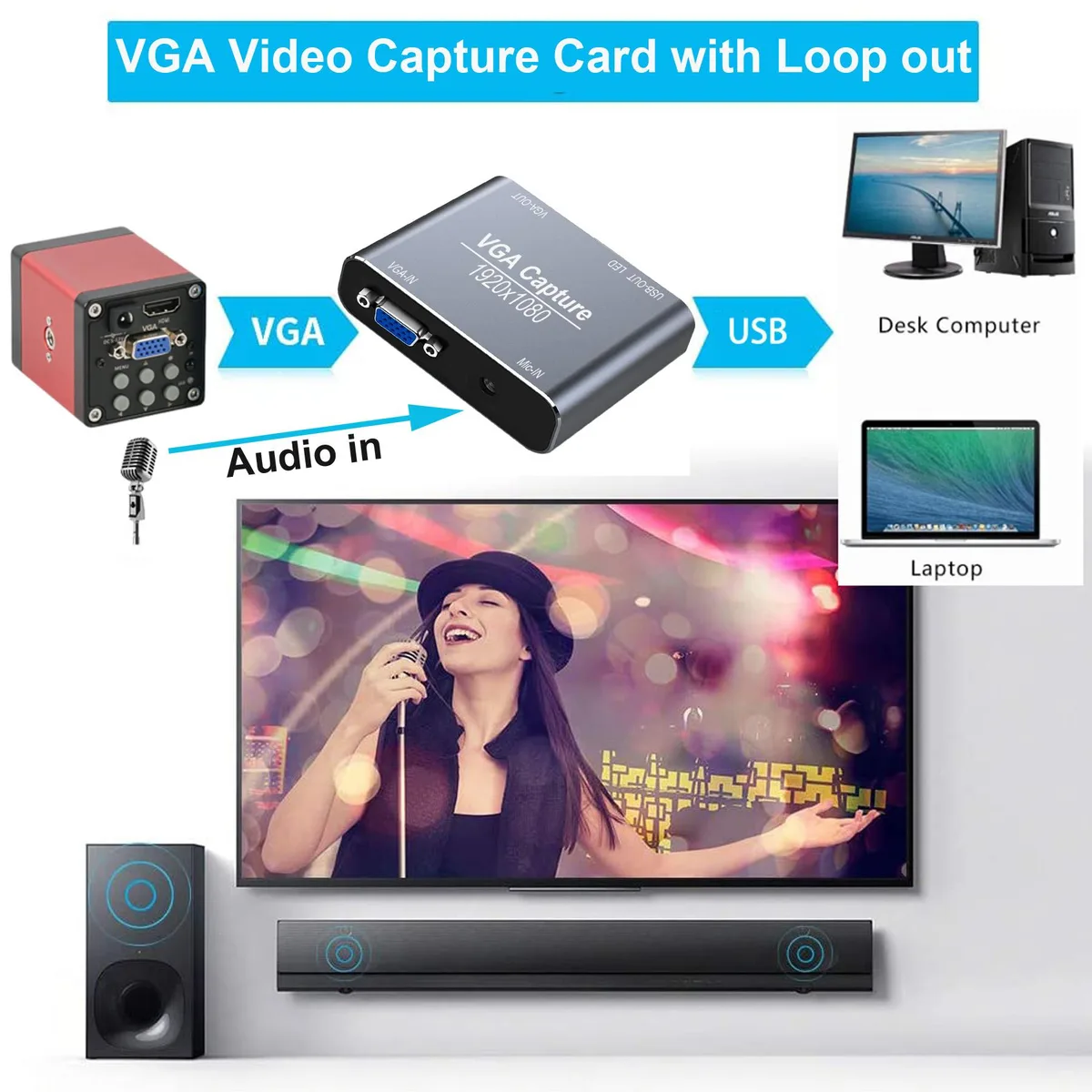

  • Records from medical scanners, cameras and broadcast sources via VGA and audio inputs
  • Powered entirely by USB 3.0 with no external adapter required
  • Works with OBS, VLC and other UVC-compatible software out of the box

Purpose-built capture

The GRACETOP GTUS-V2US3EE is a VGA capture card designed for medical and industrial displays such as CT scanners, ultrasound equipment, cardiac diagnostic systems, MRI machines, cardiopulmonary support systems and patient monitors. It accepts a VGA input at 30 Hz and delivers video up to 720P at 30 fps with a VGA loop-out for local viewing. A single USB 3.0 connection provides both power and data without an external supply.

Fit and limits

This device suits technicians who need plug-and-play capture from legacy VGA sources on Windows, macOS, Linux or Android using software such as VLC or OBS. It conforms to UVC and UAC standards and works with common USB 3.0 chipsets. Buyers who require higher frame rates, resolutions above 1080P or digital video inputs such as HDMI or DisplayPort should look elsewhere. The card also does not support multi-channel audio or hardware encoding.

Sustained operation

Under continuous use the capture card draws power directly from the USB 3.0 port and does not rely on an external adapter, keeping the setup compact for long sessions in clinical or field environments. The manufacturer notes minimal CPU load during capture, and the loop-out maintains a live local display without added latency. System requirements list a desktop i5-3400 or mobile i7-3537U at 2.0 GHz plus an NVIDIA A25 or GT735M graphics card for reliable performance.

Highlights

  • VGA capture up to 720P at 30fps with zero-latency loop-out
  • Plug-and-play on Windows, Mac, Linux and Android without driver installation
  • Records from medical scanners, cameras and broadcast sources via VGA and audio inputs
  • Powered entirely by USB 3.0 with no external adapter required
  • Works with OBS, VLC and other UVC-compatible software out of the box

Specifications

BrandGRACETOP
ModelGTUS-V2US3EE
Part NumberGTUS-V2US3EE
USB Port1
VGA1 Input/1 Output
Digital Aduio1
OptionVGA Capture Card

Questions about this item

What computer specifications are required to run the GTUS-V2US3EE capture card?

The card requires a desktop CPU of i5-3400 or higher, or a notebook CPU of i7-3537U 2.0GHz or higher, plus a desktop GPU of NVIDIA A25 or better, or a notebook GPU of NVIDIA GT735M or better.

Can I keep my VGA monitor connected while capturing video from a medical device?

Yes, the card provides a VGA loop-out port so you can pass the source signal through to a local display while simultaneously capturing 720P 30fps video via USB 3.0.

How do I verify the capture card is working correctly after connecting it?

Open VLC or OBS on Windows, MacOS, or Android; the device should appear as a UVC video source and UAC audio source showing 720P or 1080P at 30Hz in YUV or JPEG format without installing any driver.
