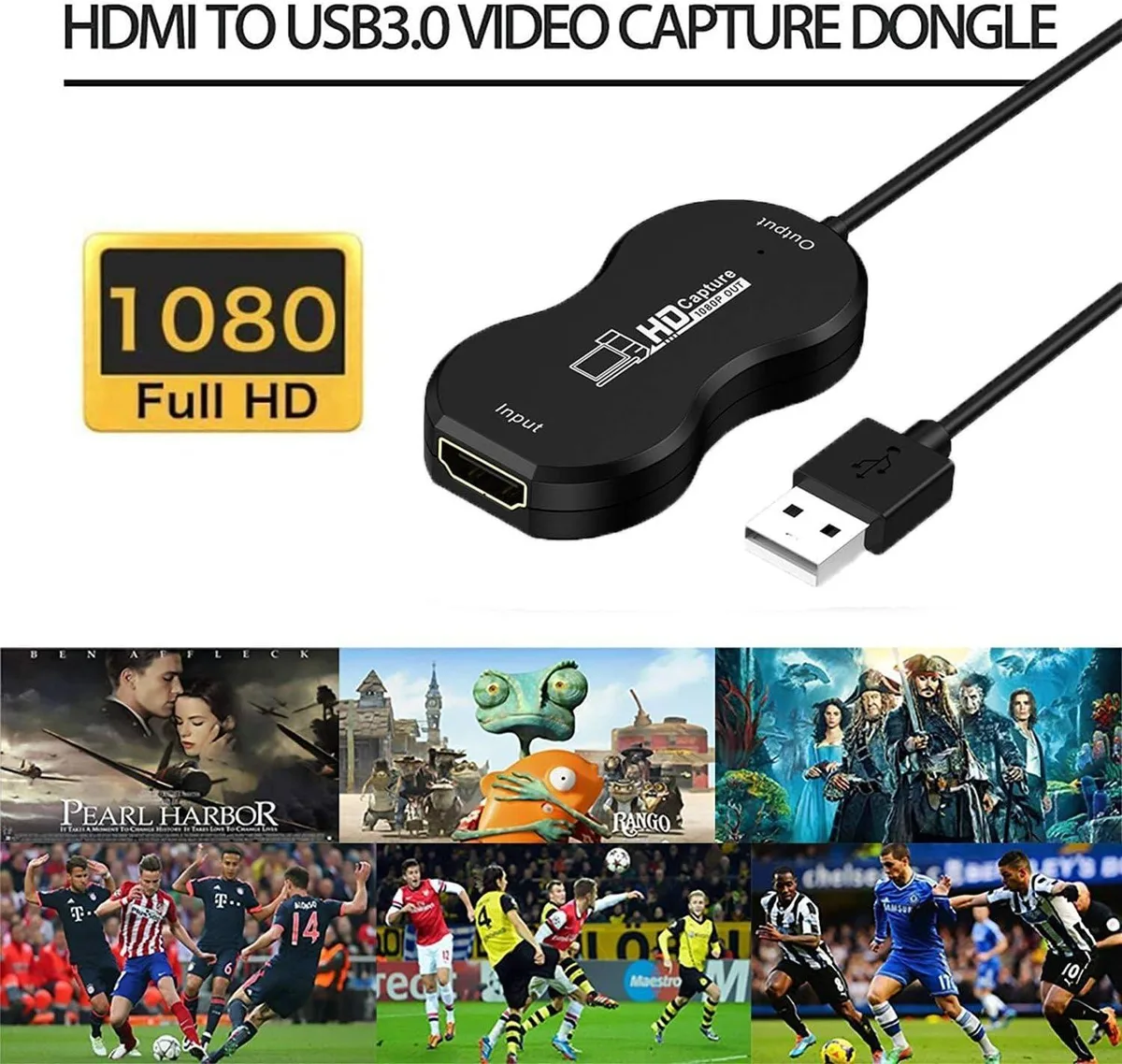

Small black rectangular capture box with HDMI and USB ports

GRACETOP

GRACETOP GTUS-H2UAS 1080p HDMI USB video capturing device

SKU CH-VRE5-HPHMD

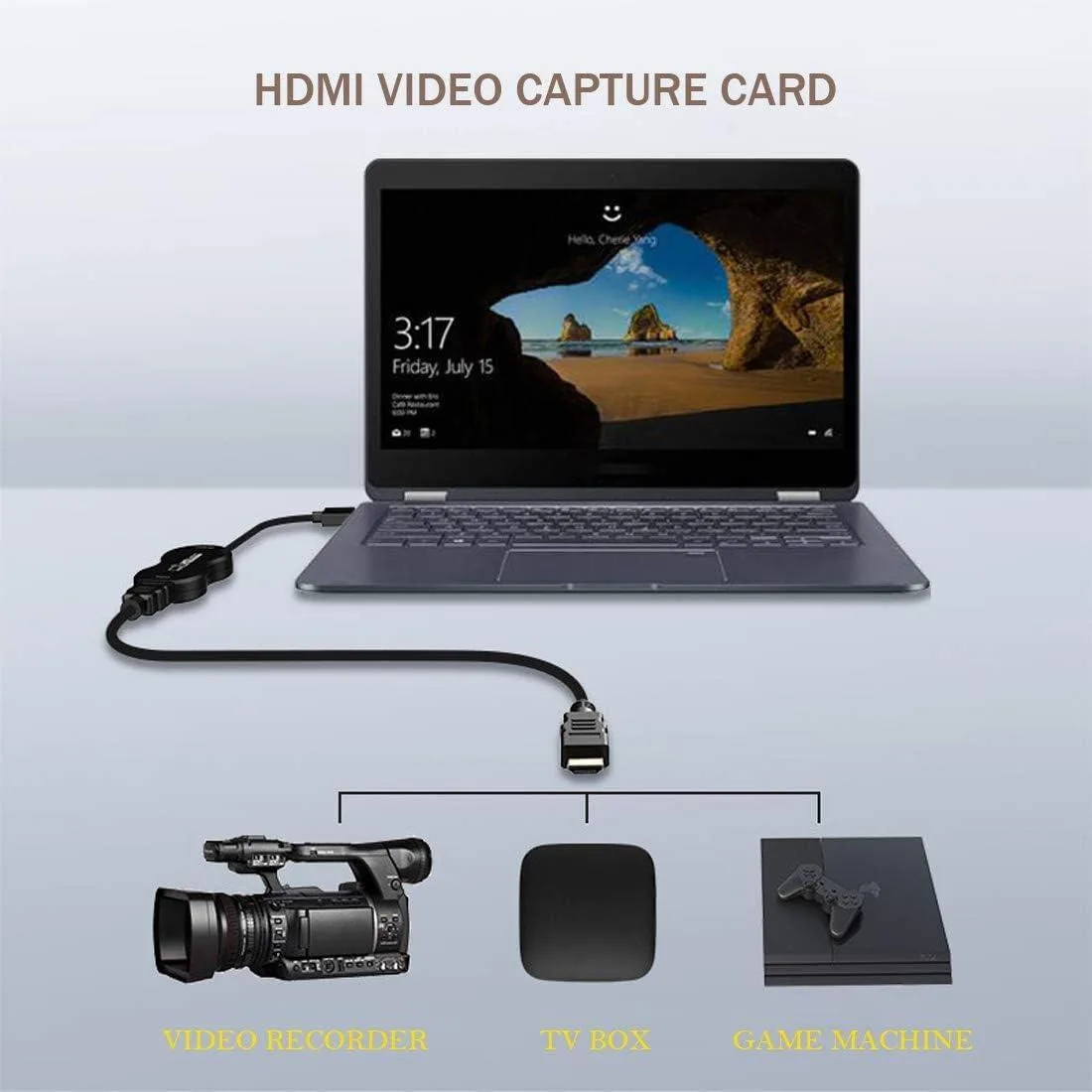

Capture 1080p60 HDMI video from consoles or cameras to USB for streaming on Windows, Mac or Linux

  • Camera ResolutionUp to 1080p Video
  • HDMI1 In
  • USB Port1
  • Option2 Port
  • Records 1080p at 30 fps for smooth streaming
  • Accepts 4K 60 Hz input and downscales to 1080p
  • HDMI loop-out passes gameplay to a monitor with no added latency
  • Works driver-free on Windows, macOS and Linux via UVC and UAC standards
  • Draws only 0.4 A from USB so no external power supply is needed

Compact HDMI to USB capture

The GRACETOP GTUS-H2UAS is a portable video capturing device that accepts HDMI input up to 3840x2160 at 60 Hz and delivers a maximum output of 1920x1080 at 60 fps. It connects to Windows, macOS or Linux hosts via USB 2.0 or 3.0 without requiring a driver, making it suitable for streamers and creators who need a simple way to bring camera or console footage into OBS, VLC, Potplayer or similar software.

HDMI loop-out for zero-latency play

An HDMI loop-out port passes the source signal through to a display so you can play or present with no perceptible delay while the capture path records or streams at up to 30 fps. The box supports common input formats including 1080p at 24, 25 and 30 fps, 1080i at 30 fps and 720p at 30 fps, and it works with standard AWG26 HDMI cables up to 15 metres long.

Driver-free UVC and UAC compliance

The device draws a maximum of 0.4 A at 5 V from the USB port, so no external power supply is needed, and it conforms to USB Video Class and USB Audio Class standards for broad software compatibility. Its aluminium enclosure measures 2.8 by 1.1 by 0.3 inches and weighs 50 g, operating from 0 to 50 °C and storing from -20 to 70 °C at 5 to 90 % humidity.

Highlights

  • Records 1080p at 30 fps for smooth streaming
  • Accepts 4K 60 Hz input and downscales to 1080p
  • HDMI loop-out passes gameplay to a monitor with no added latency
  • Works driver-free on Windows, macOS and Linux via UVC and UAC standards
  • Draws only 0.4 A from USB so no external power supply is needed

Specifications

BrandGRACETOP
ModelGTUS-H2UAS
Camera ResolutionUp to 1080p Video
HDMI1 In
USB Port1
Option2 Port

Questions about this item

Does the USB 2.0 or 3.0 host interface on the GTUS-H2UAS need a driver update or firmware flash over time?

No driver is required for Windows, Linux or Mac OS X; the device conforms to USB Video UVC and USB Audio UAC standards, so it works without firmware maintenance.

What is the first limit reached when capturing continuously at 1080p 30 fps?

The USB 2.0 link caps sustained throughput at 450 MB/s, which bounds the maximum capture bit-rate before any thermal or CPU bottleneck appears.

How warm does the capture card get and how much power does it draw during all-day streaming?

It draws a maximum working current of 0.4 A at 5 V DC with no external supply, and is rated for 0 to 50 °C operating temperature.
