Small rectangular USB-A capture dongle with AV and S-Video inputs, matte black finish

GRACETOP

GRACETOP GTUS-AV2USBAP1 1080P30 720P60 Video Capturing Device

SKU CH-S73H-8XHJC

Captures analogue AV, CVBS and S‑VIDEO sources at up to 1080p30 or 720p60 and sends them over USB with driver‑free UVC/UAC support

  • Camera ResolutionUp to 1080p Video
  • USB Port1
  • S-Video1 In
  • Option2 Port
  • Digitise VHS, Hi8 and DV tapes via USB
  • Capture analogue RCA or S-Video at up to 1080p 30 or 720p 60
  • Works instantly on Windows, Linux, Mac and Android with no drivers
  • Compatible with OBS, VLC, PotPlayer and AMCAP for recording or streaming
  • Connect legacy consoles, VCRs or cameras through the 1.25 mm 4-pin AV input

Capture for Legacy AV Sources

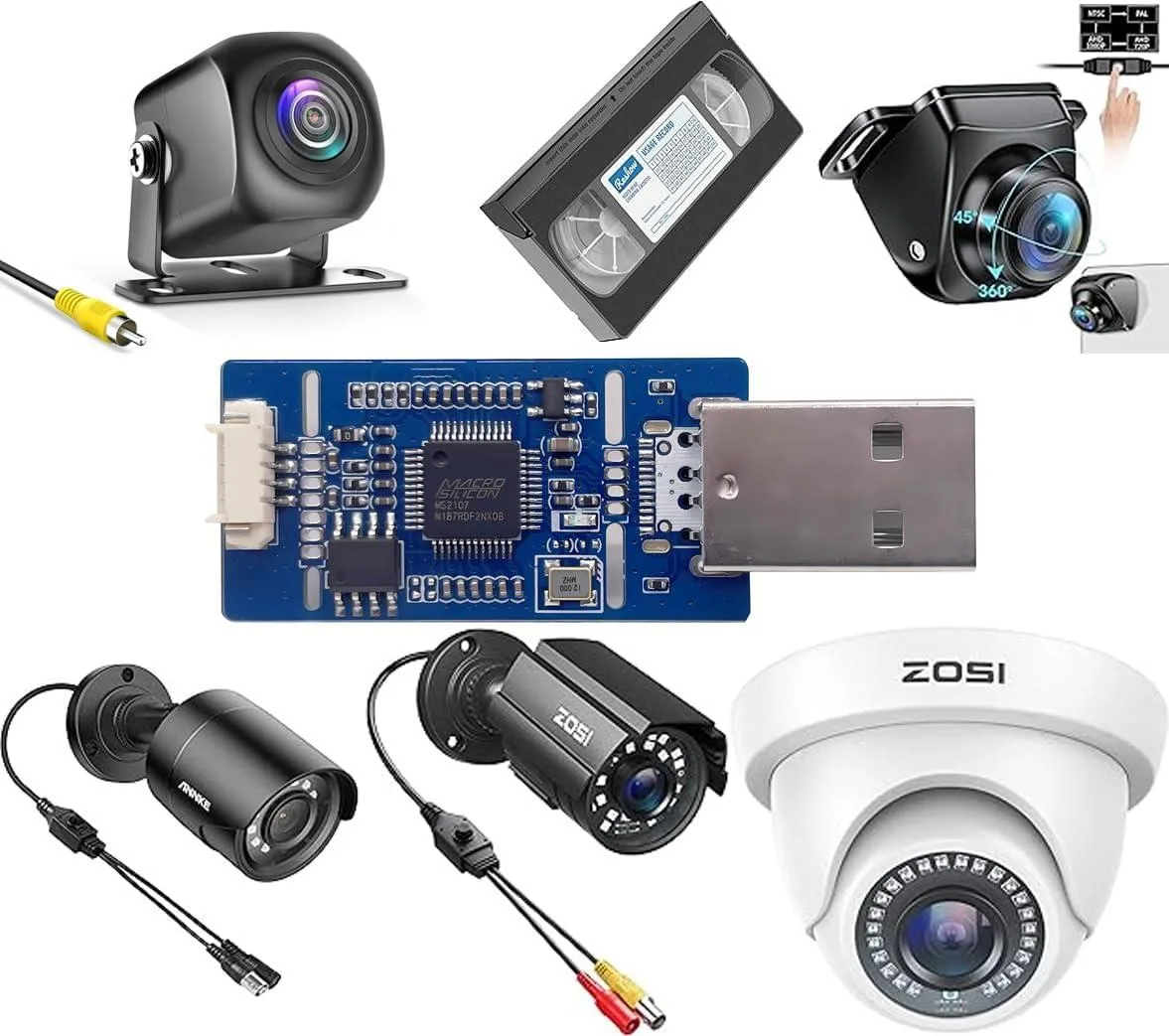

This GRACETOP device converts analogue AV, CVBS and S‑VIDEO signals to USB video at up to 1080p30 or 720p60. It suits archivists, streamers and hobbyists who need to digitise tapes from VHS, VCR, Hi8, DV, DVD or camcorder sources without installing internal cards.

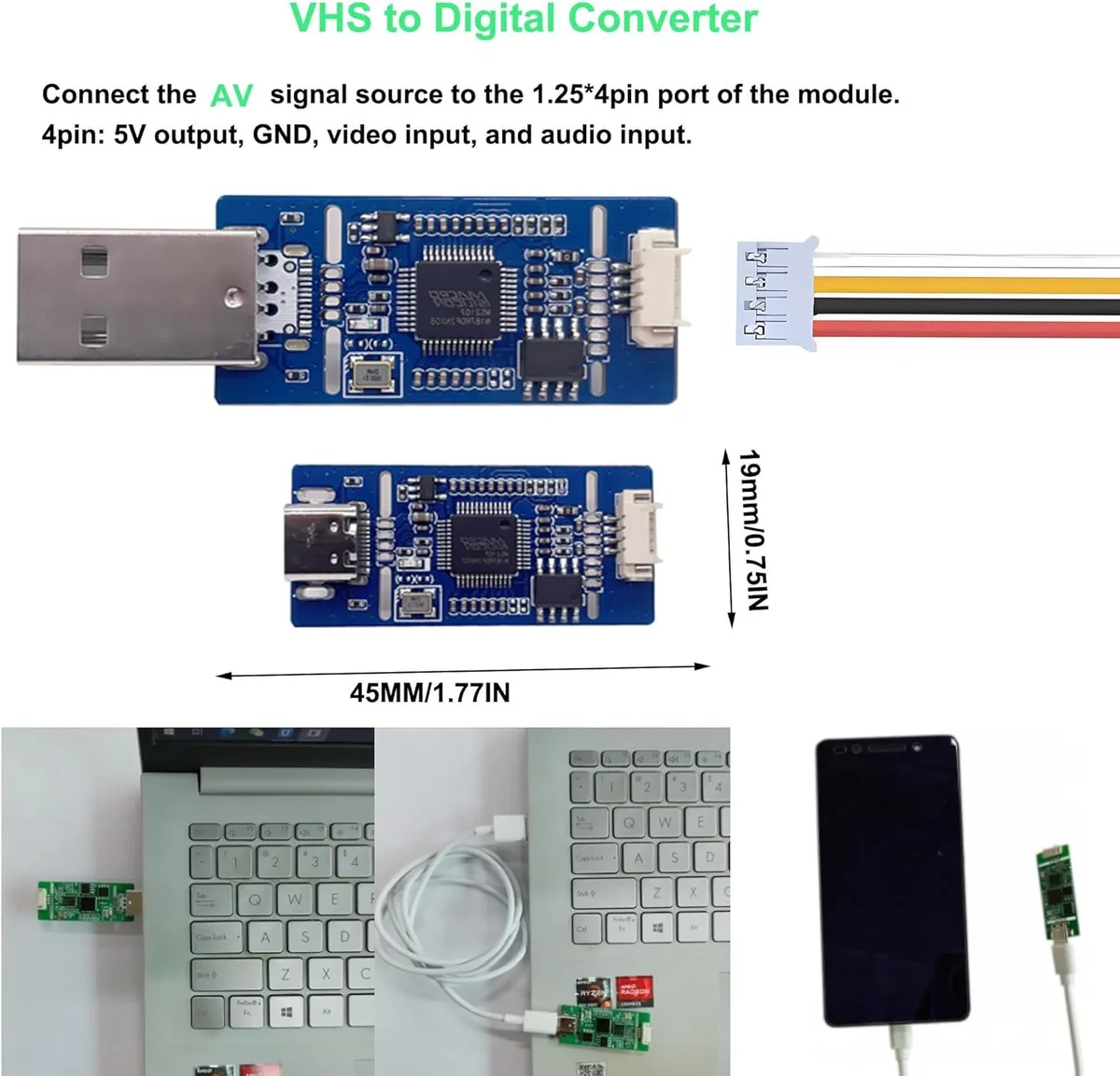

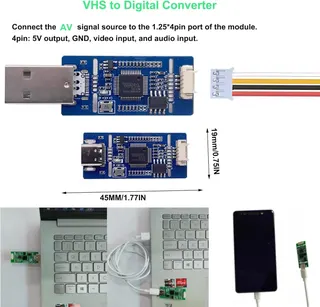

Compact UVC Module with 1.25 mm 4‑Pin Input

The capture card draws power and transfers data over a single USB‑A connection and requires no driver installation on Windows, Linux, macOS or Android. Its 1.25 mm 4‑pin port accepts composite and S‑VIDEO cables directly, so the box can sit on a desk or travel in a laptop bag for field captures.

Replaces Internal Cards and Dedicated Recorders

Users moving from a PCI‑e capture card or a standalone DVD recorder gain a driver‑free, cross‑platform workflow that works with OBS, VLC, PotPlayer and AMCAP. The step up is worthwhile when the priority is quick, portable digitisation of standard‑definition analogue material rather than high‑bitrate modern sources.

Highlights

  • Digitise VHS, Hi8 and DV tapes via USB
  • Capture analogue RCA or S-Video at up to 1080p 30 or 720p 60
  • Works instantly on Windows, Linux, Mac and Android with no drivers
  • Compatible with OBS, VLC, PotPlayer and AMCAP for recording or streaming
  • Connect legacy consoles, VCRs or cameras through the 1.25 mm 4-pin AV input

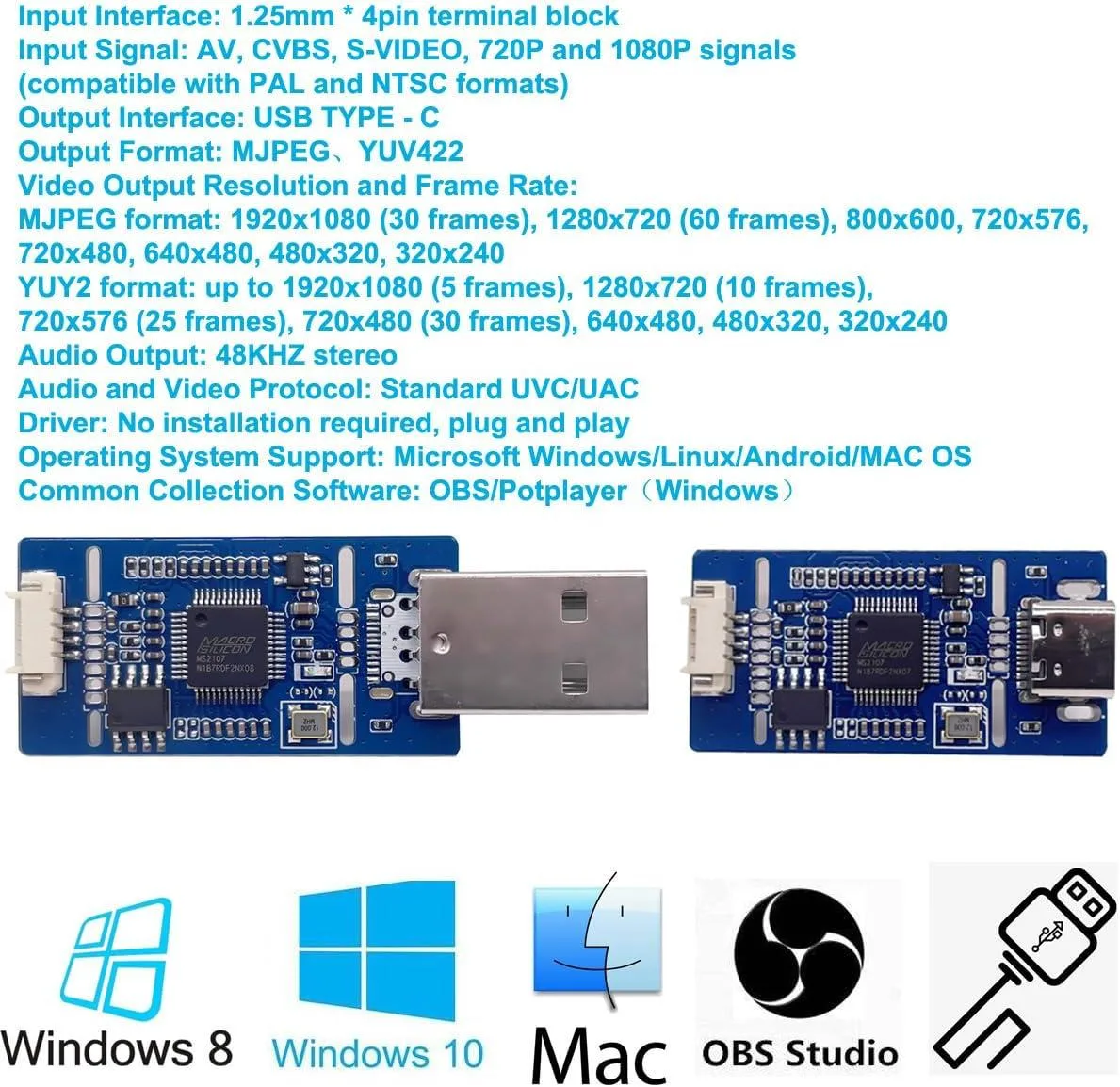

Specifications

BrandGRACETOP
ModelGTUS-AV2USBAP1
Part Number2
Camera ResolutionUp to 1080p Video
USB Port1
S-Video1 In
Option2 Port

Questions about this item

What USB standard does the GRACETOP GTUS-AV2USBAP1 use, and what capture resolutions does it support?

It connects via a USB-A interface and captures video at up to 1080p at 30 frames per second or 720p at 60 frames per second.

Which physical connectors does the capture device provide for video input?

The unit has a 1.25 mm 4-pin port that accepts AV, CVBS and S-Video signals from sources such as VHS, VCR or camcorders.

How is the device set up on a computer, and what common step is missed?

Plug the capture card into a USB port, connect the source to the 4-pin input, then select the device in software like OBS or VLC; users often forget to choose the correct input format (PAL or NTSC) in the capture application.
