Small rectangular video capture device with USB-C cable and AHD connector

GRACETOP

GRACETOP AHD Video Capturing Device 1080P30 720P60 OTG

SKU CH-Z12F-317G1

Converts AHD camera signals to USB for 1080p30 or 720p60 capture on Windows, Linux, Mac and mobile devices

  • Camera ResolutionUp to 1080p Video
  • USB Port1
  • Other ConnectorAHD
  • Option2 Port
  • 1080p at 30 fps for sharp recordings
  • 720p at 60 fps for smooth motion
  • Plug and play with no drivers needed
  • Works on Windows, Mac, Linux, Android, iOS
  • Converts AHD video and audio to USB

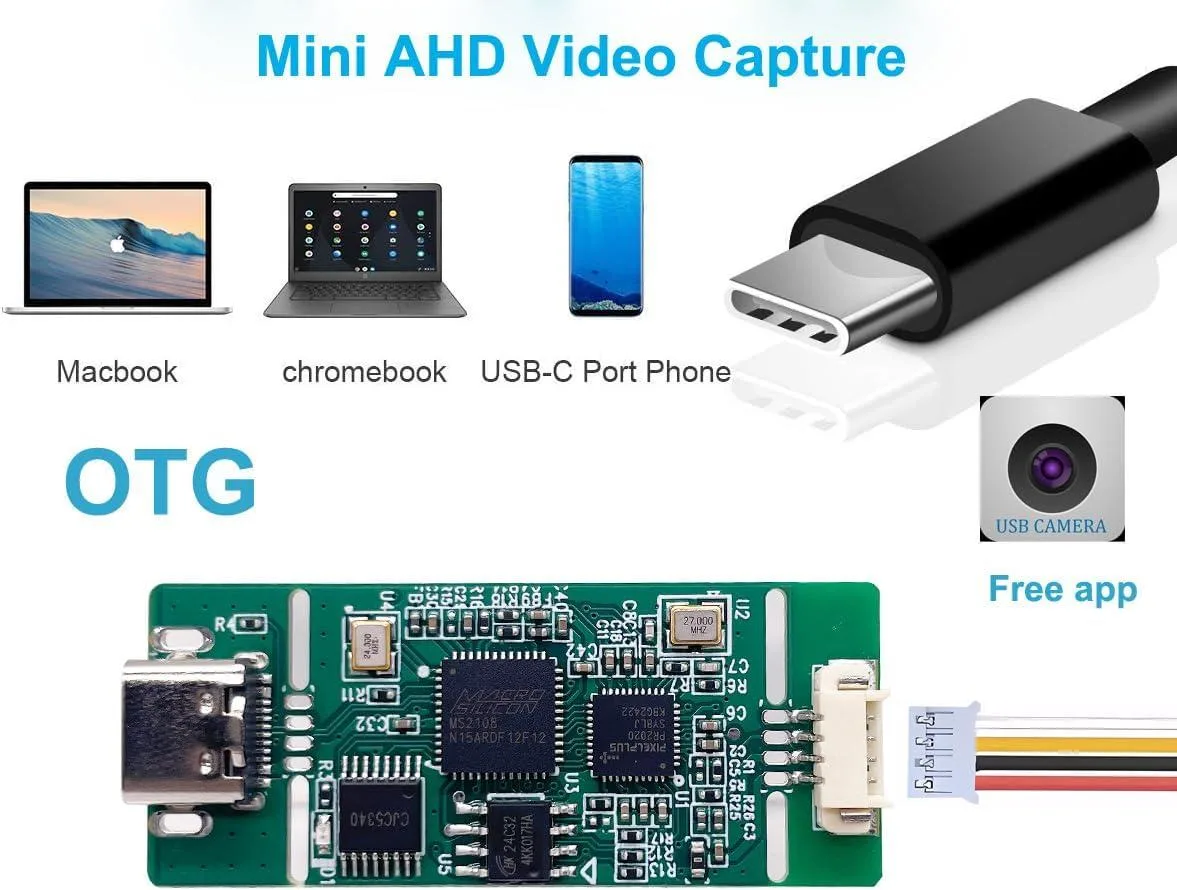

AHD Capture with OTG Support

The GRACETOP AHD capture device converts analogue high-definition camera signals into USB video and audio streams. It targets installers, streamers and integrators who need to record or broadcast from AHD backup cameras, security systems or medical equipment without installing drivers on Windows, Linux, macOS, Android or iOS.

1080p30 and 720p60 Throughput

The module outputs up to 1080p at 30 frames per second and captures 720p at 60 frames per second, automatically adapting to PAL or NTSC formats. This headroom suits standard-definition monitoring and smooth 720p streaming, while 1080p60 sources exceed the device's capture ceiling and will be downscaled or dropped.

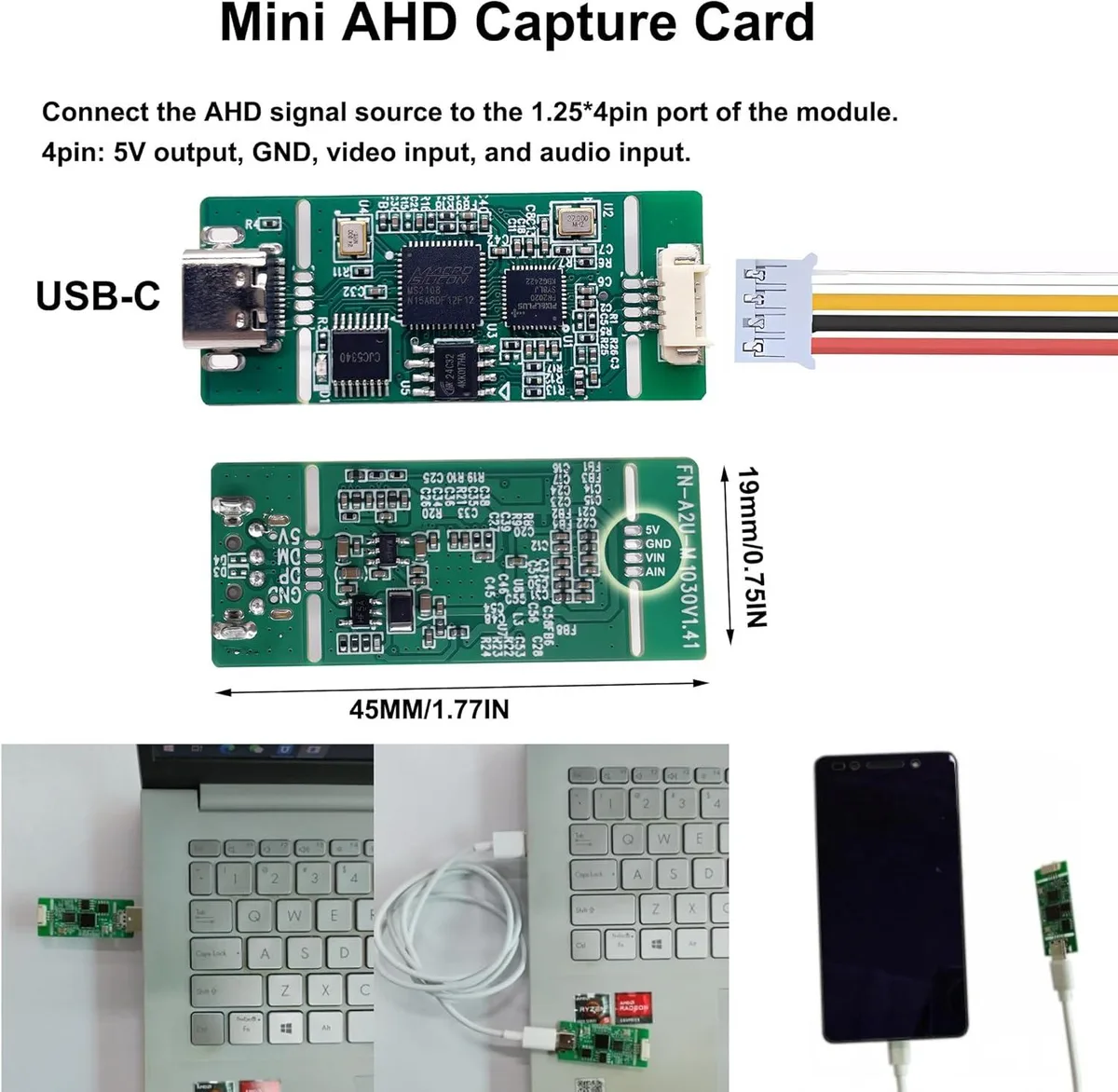

Driver-Free USB and 1.25 mm 4-Pin Input

A single USB port supplies both power and data, enabling true plug-and-play operation with software such as OBS, VLC, PotPlayer and AMCAP. The 1.25 mm 4-pin connector accepts the AHD source directly, so no external power supply or adapter cables are required for typical camera hookups.

Highlights

  • 1080p at 30 fps for sharp recordings
  • 720p at 60 fps for smooth motion
  • Plug and play with no drivers needed
  • Works on Windows, Mac, Linux, Android, iOS
  • Converts AHD video and audio to USB

Specifications

Camera ResolutionUp to 1080p Video
USB Port1
Other ConnectorAHD
Option2 Port

Questions about this item

Will this capture card work with an older AHD backup camera I already own?

Yes, it accepts AHD signals through the 1.25 mm 4-pin port and automatically adapts to both PAL and NTSC formats.

How can I verify the card is capturing at 1080p 30 or 720p 60 after I plug it in?

Open your recording software and confirm the active video format matches 1080p at 30 fps or 720p at 60 fps with audio present.

Does the box include the AHD camera cable or do I need to buy that separately?

The card provides the 1.25 mm 4-pin input and USB output; any AHD camera lead or extension must be sourced separately.
