Two small green circuit boards with inductors and screw terminals

Grabaroos

Grabaroos XL6009 DC-DC Adjustable Step-up Boost Power Converter Module 2 pcs

SKU CH-HHSD-8BC92

Adjustable boost module steps 3 V–32 V up to 5 V–35 V at up to 4 A input, 400 kHz switching, 50 mV ripple, two pieces

  • Adjustable output from 5V to 35V for versatile projects
  • Wide 3V to 32V input range suits many power sources
  • Up to 4A input current handles demanding loads efficiently
  • Non-synchronous rectification at 400KHz switching frequency
  • Two modules included for multiple builds or spare parts

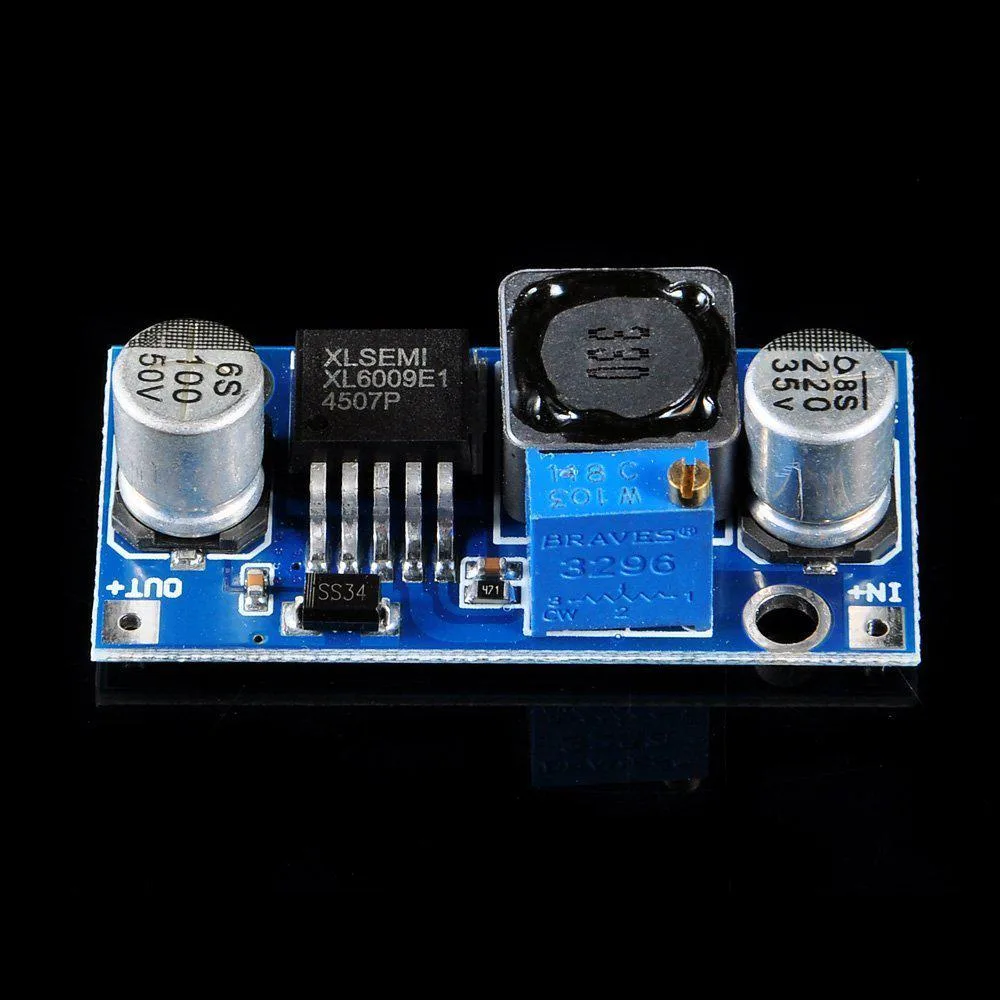

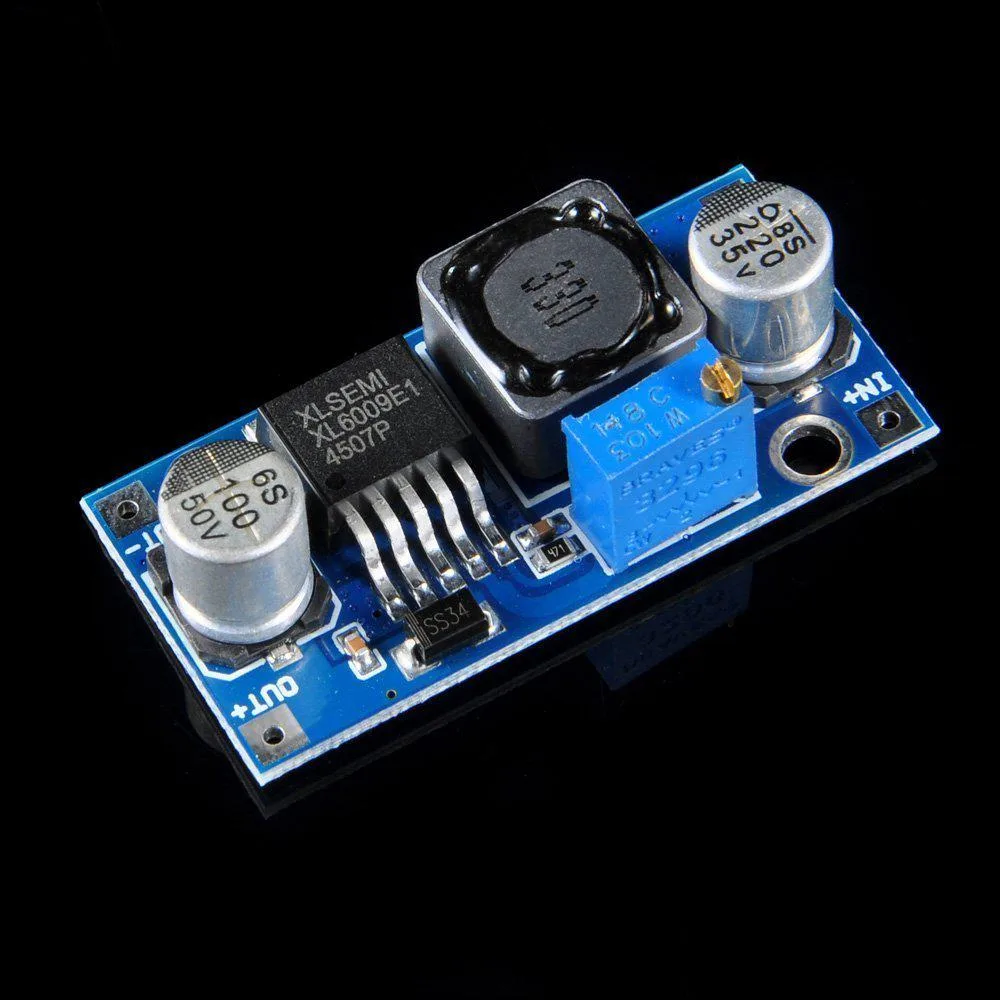

Grabaroos XL6009 Boost Module Pair

This pack contains two adjustable step-up converters built around the XL6009 controller. Each module accepts an input between 3 V and 32 V and delivers a regulated output from 5 V up to 35 V. They suit hobbyists and engineers who need to raise a low-voltage source for test rigs, battery-powered projects or portable equipment.

Non-synchronous Rectification and 400 kHz Operation

The boards use non-synchronous rectification running at 400 kHz, which keeps the component count low and the layout simple. Typical output ripple is quoted at 50 mV and increases with higher output voltage or load current. No external compensation components are required, so the bill of materials stays minimal for breadboard or perfboard builds.

Pin-header Installation and Current Limits

Solder the supplied pin headers to the IN+, IN-, OUT+ and OUT- pads, then set the output voltage with the onboard potentiometer while measuring with a multimeter. The input current limit is 4 A maximum; exceeding this or drawing excessive current at high step-up ratios will cause thermal shutdown or voltage drop. Reverse polarity on the input pins will damage the module.

Highlights

  • Adjustable output from 5V to 35V for versatile projects
  • Wide 3V to 32V input range suits many power sources
  • Up to 4A input current handles demanding loads efficiently
  • Non-synchronous rectification at 400KHz switching frequency
  • Two modules included for multiple builds or spare parts

Specifications

BrandSenMod

Questions about this item

How often will I need to replace the XL6009 module or its components during long-term use?

The module has no user-replaceable parts; it is a solid-state boost converter with non-synchronous rectification and 400KHz switching, so no scheduled maintenance or component replacement is required.

What is the first limit reached when running the XL6009 continuously at high load?

The 4A maximum input current is the primary limit; at 12V input the test data shows output power topping out around 32W, so sustained loads beyond that will hit the input-current ceiling first.

How much heat and noise does the module produce when operated all day at typical loads?

No fan or moving parts are present, so audible noise is negligible; heat rises with output voltage and current — ripple reaches 50mV at higher settings — so adequate airflow around the board is recommended for continuous operation.
