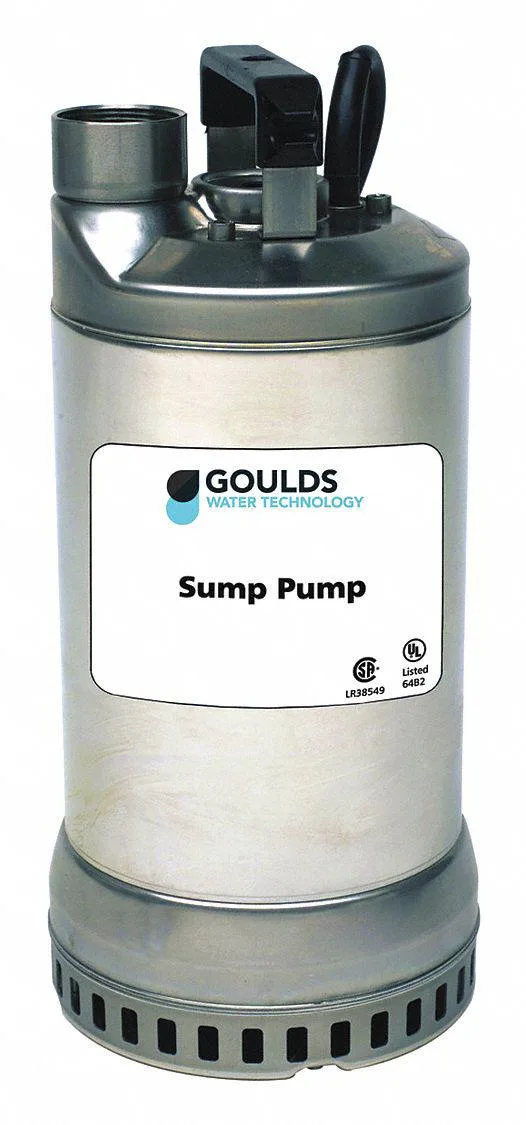

Stainless steel utility pump, cylindrical body, 16 inches tall, 7 inches wide, plug-in power cord

Goulds Water Technology

Goulds Water Technology 1DW51E1EA 1 HP 230V Utility Pump

SKU CH-NQTP-SPGHT

Plug-in utility pump with a 1 HP motor and 230 V AC power delivering up to 105 gpm at 5 ft head and 52 ft maximum head in a stainless steel body

  • 1 HP motor delivers strong water removal
  • 230 V AC operation suits standard residential wiring
  • Stainless steel body and 304 stainless impeller resist corrosion
  • 105 gpm at 5 ft head for high-volume transfer
  • 52 ft maximum head handles deep sump pits

1 HP 230 V plug-in utility pump

This Goulds Water Technology pump delivers one horsepower at 230 V AC, 60 Hz and draws 6.30 amps. It is built with a stainless-steel body, a 304 stainless-steel impeller and a silicon-carbide shaft seal for corrosion resistance. The unit measures seven inches in diameter and sixteen inches tall, requiring a minimum sump-pit diameter of ten inches and ten inches of water depth. It suits residential and light-commercial dewatering tasks where a plug-in, no-switch design is preferred.

Flow and head performance limits

At five feet of head the pump moves 105 gallons per minute; at ten feet it provides 95 gpm; at fifteen feet it provides 88 gpm; and at twenty feet it provides 82 gpm. The maximum shut-off head is 52 feet, so flow drops to zero beyond that lift. Because no switch is included, the pump runs continuously once powered unless an external control is added. Users must size discharge piping and check valves to handle these flow rates without exceeding the motor’s amp draw.

Installation checks before ordering

Verify that the site provides 230 V single-phase power on a circuit rated for at least 6.30 amps. Confirm the sump pit is at least ten inches wide and can maintain ten inches of water above the pump intake. Ensure the discharge line can accommodate the seven-inch body width and the flow rates listed above. No power cord length or plug type is specified, so confirm the cord reaches the receptacle without an extension cord.

Highlights

  • 1 HP motor delivers strong water removal
  • 230 V AC operation suits standard residential wiring
  • Stainless steel body and 304 stainless impeller resist corrosion
  • 105 gpm at 5 ft head for high-volume transfer
  • 52 ft maximum head handles deep sump pits

Specifications

BrandGOULDS

Questions about this item

Which flow-rate figure should I match to my application — 105 gpm at 5 ft head or 82 gpm at 20 ft head?

Choose the point that matches your actual discharge head; the pump delivers 105 gpm at 5 ft, 95 gpm at 10 ft, 88 gpm at 15 ft and 82 gpm at 20 ft of head.

What does the 52 ft maximum head mean when the pump is installed in a real system?

It is the shut-off pressure — the pump can lift water 52 ft vertically but delivers zero flow at that height; usable flow occurs at lower head values shown in the performance table.

How does the 230 V 60 Hz single-phase supply limit motor starting and running current?

The motor draws 6.30 amps at rated load on a 230 V AC 60 Hz circuit; no switch is included so the installer must provide suitable overload protection and a dedicated branch circuit.
