Compact silver box with HDMI ports and 3.5 mm audio jacks

Goldendisk

Goldendisk USB Capture HDMI Plus video capturing device 32040

SKU CH-RHCS-W2TCF

A single-channel HDMI capture device records up to 1080p at 60fps or 720p at 120fps with loop-through output and 3.5 mm audio I/O

  • Capture 4K input up to 4096×2160 at 30 fps and record 1080p at 60 fps
  • Pass video to a monitor with zero-delay loop-through while streaming
  • Mix HDMI audio or 3.5 mm mic/line input and monitor via headphone output
  • Plug into USB 3.1 Gen 1 on Windows, macOS, Linux or Chrome OS with no drivers
  • FPGA handles de-interlacing, scaling and colour conversion to offload the CPU

USB Capture HDMI Plus 32040

This USB capture device accepts HDMI sources up to 4096×2160 and records at 1080p 60fps or 720p 120fps. On-board scaling and de-interlacing reduce host CPU load during streaming or recording. It targets creators and professionals who need reliable single-channel ingest without driver installation.

Thermal and power profile

The unit is USB 3.1 Gen 1 powered and requires no external adapter. Its thermal design supports continuous 24/7 operation while status LEDs indicate activity. No active cooling is mentioned, so the enclosure manages heat passively during typical capture workloads.

Build and connectivity

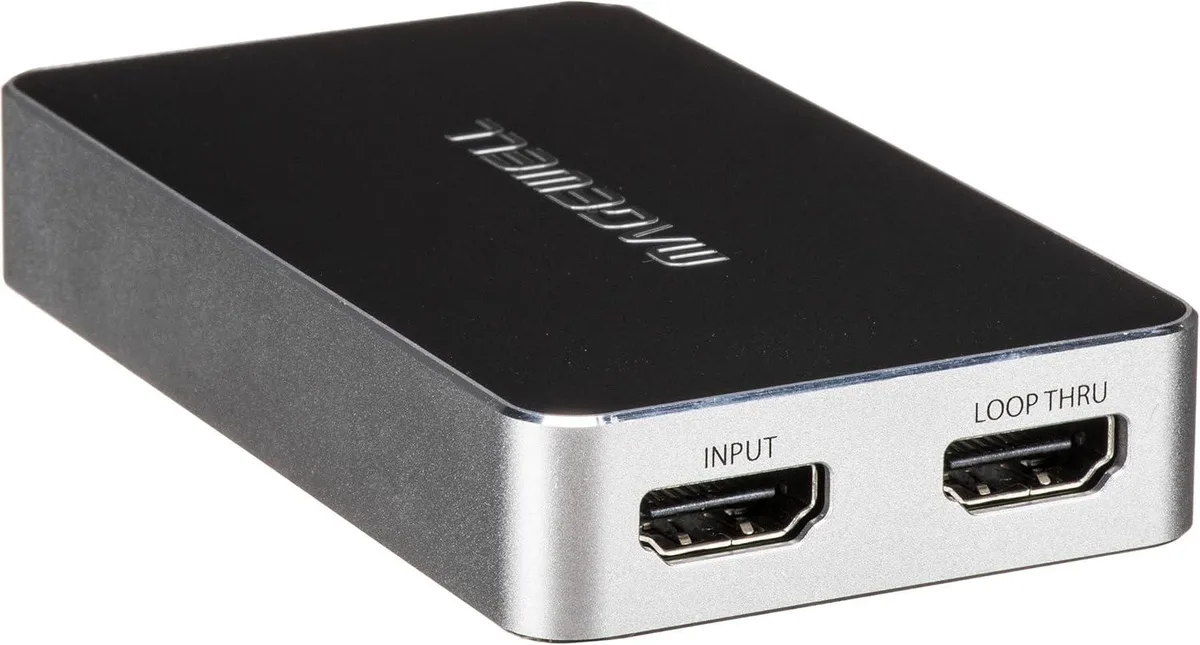

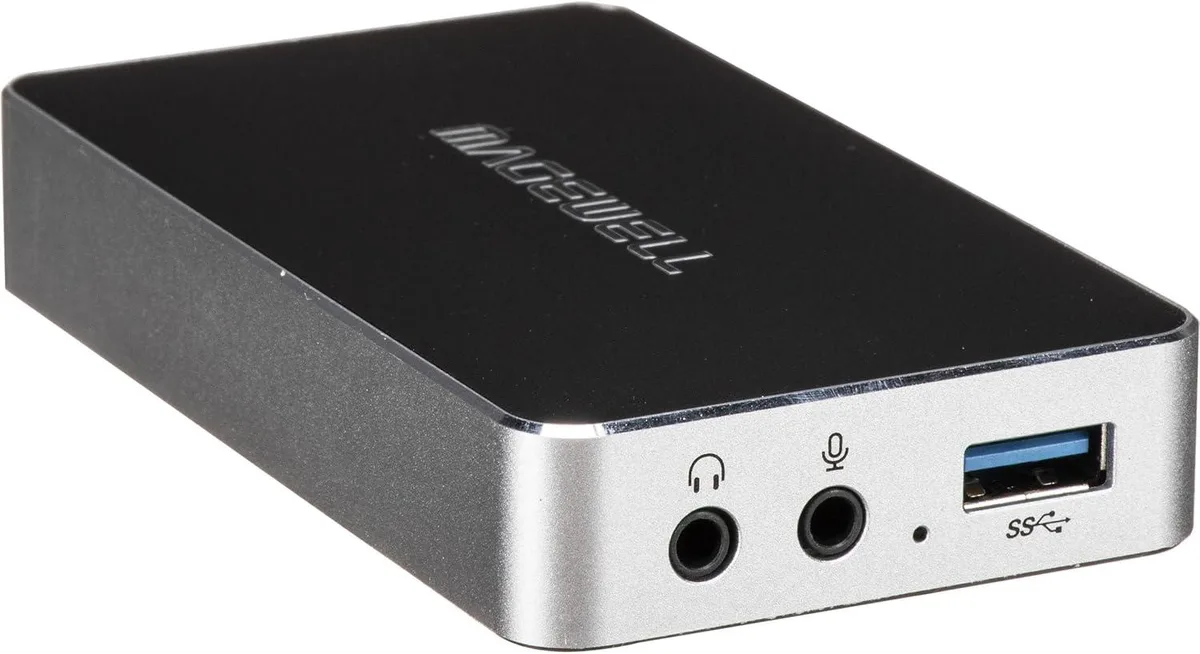

An HDMI loop-through port passes the signal to a display with zero-delay preview. 3.5 mm jacks allow external mic or line input and real-time headphone monitoring. The utility lets users adjust EDID, flip, mirror, resolution and frame rates for day-to-day workflow changes.

Highlights

  • Capture 4K input up to 4096×2160 at 30 fps and record 1080p at 60 fps
  • Pass video to a monitor with zero-delay loop-through while streaming
  • Mix HDMI audio or 3.5 mm mic/line input and monitor via headphone output
  • Plug into USB 3.1 Gen 1 on Windows, macOS, Linux or Chrome OS with no drivers
  • FPGA handles de-interlacing, scaling and colour conversion to offload the CPU

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the USB Capture HDMI Plus 32040 and which step do users often miss?

Connect the HDMI source to the input, plug the USB 3.1 Gen 1 cable into the host, and attach a display to the loop-through output; the step often missed is connecting that loop-through so the source sees a valid EDID and the preview works.

What maintenance or replacement will the USB Capture HDMI Plus 32040 need later?

The device is built for 24/7 use with a thermal design and status LEDs; no user-serviceable parts are listed, so maintenance is limited to keeping vents clear and applying firmware updates via the USB Capture Utility.

What limit appears first during sustained capture with the USB Capture HDMI Plus 32040?

Capture tops out at 1080p 60fps or 720p 120fps regardless of the 4096×2160 input capability, so the on-board scaling ceiling is the first bottleneck under continuous load.
