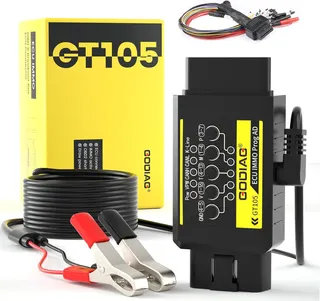

Compact rectangular adapter with OBD2 port, battery clamps and DC power socket, matte grey plastic housing

GODIAG

GODIAG GT105 IMMO ECU measurement tool

SKU CH-W7KM-4BRXA MPN GT105

An OBD2 adapter that maintains vehicle power during battery changes to preserve ECU data and supports key programming for Ford, VAG, Toyota, Mitsubishi and Porsche models

  • Size/DimensionsInch: 5.12*4.33*2.36
  • TypeCode Scanners & Accessories
  • FeaturesGODIAG ECU IMMO Prog AD GT105 is a special connection adapte
  • Protects vehicle data during battery changes by maintaining continuous power supply
  • Activates anti-theft matching without ECU removal using the wake-up short-circuit button
  • Supports VAG 4th/5th generation, Toyota ECU sync, Mitsubishi all-key-lost and Porsche Cayenne key learning
  • Includes full-protocol OBD2 jumper for Ford smart-key programming with VVDI, Autel and similar equipment after 2016
  • Powers outdoor diagnostic tools from the 12 V battery via 0.75 mm² DC cable with 5.5×2.1 / 5.5×2.5 connectors and 7 A resettable fuse

Purpose-built OBD2 adapter

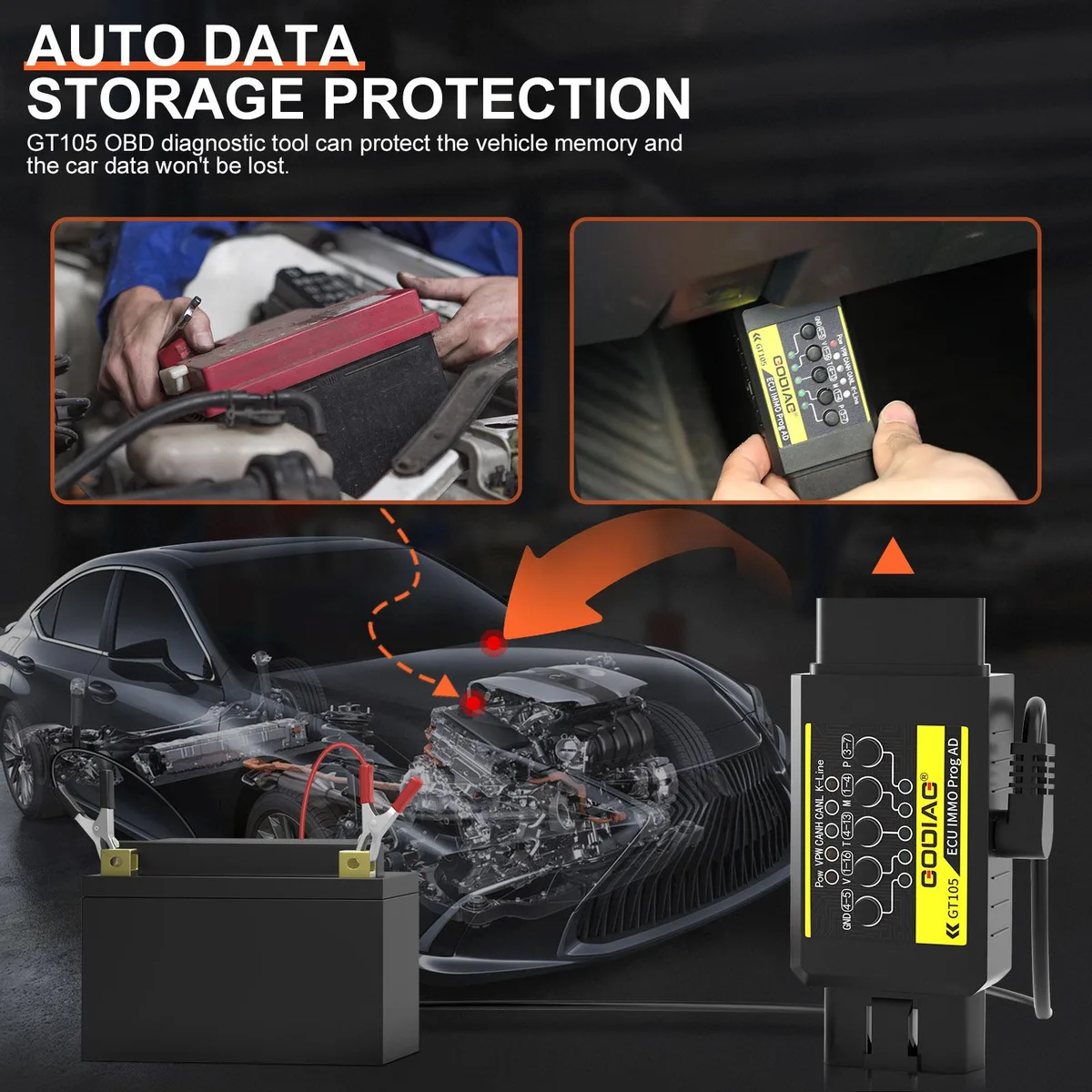

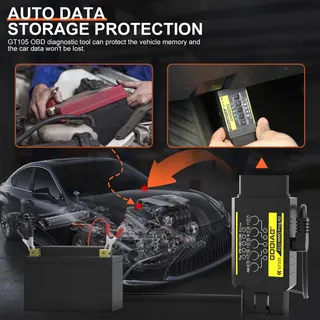

The GODIAG GT105 is a specialised OBD2 adapter designed for automotive technicians who perform ECU programming, immobiliser matching and battery replacements. It maintains continuous 12 V power to the vehicle so that stored data, clock settings and anti-theft codes remain intact during service work.

Technicians needing full-protocol support

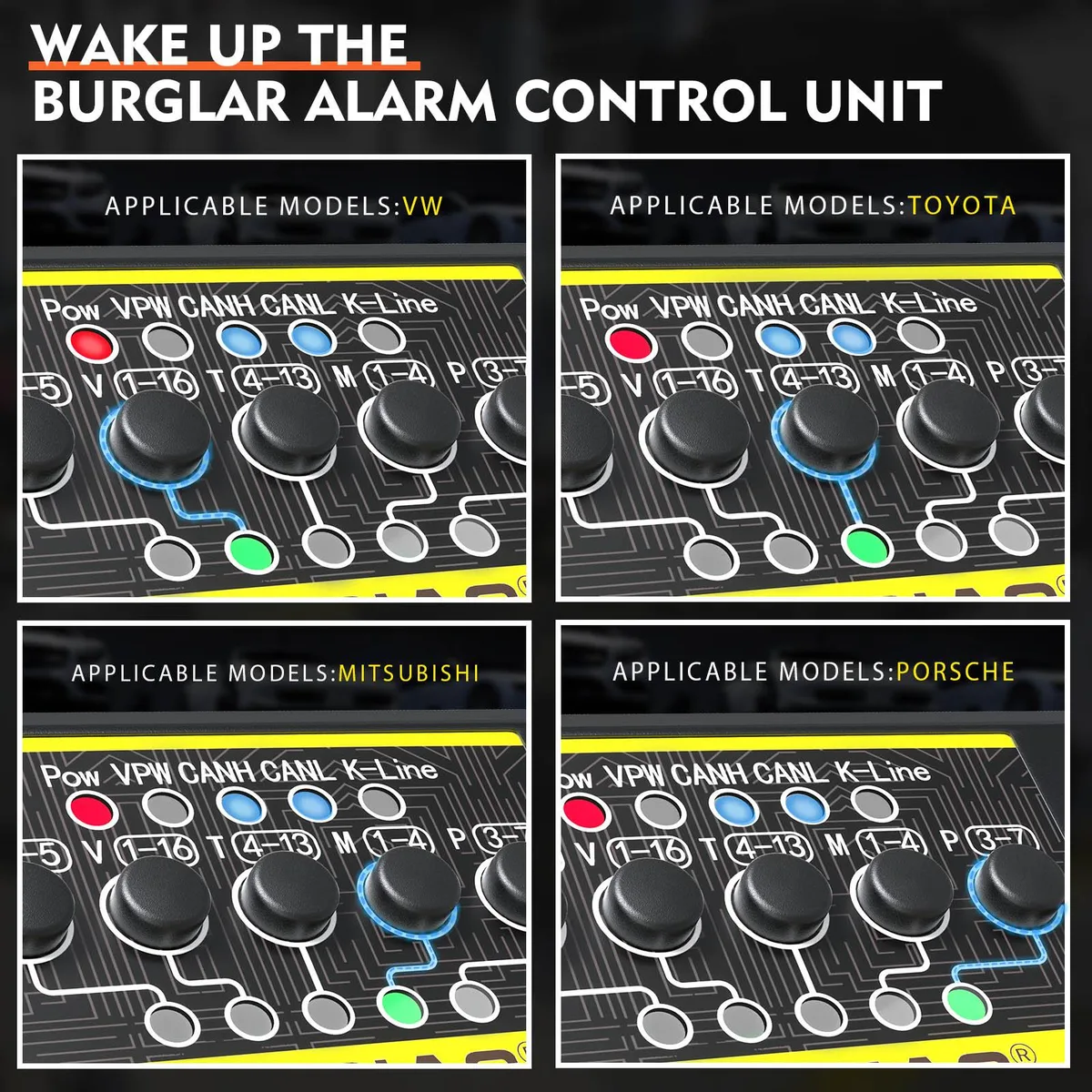

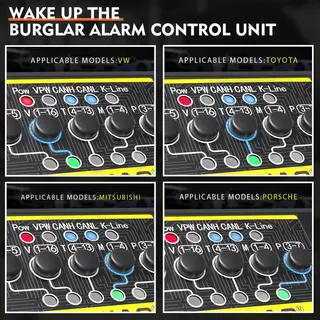

Workshops that regularly handle VAG fourth- and fifth-generation immobilisers, Toyota ECU synchronisation, Mitsubishi all-key-lost matching or older Porsche Cayenne key learning will benefit from the built-in wake-up button and short-circuit controls. Shops that only require basic code reading or lack compatible programmer hardware will not use the advanced functions.

Integrates with existing programmers

The adapter supplies a full-protocol OBD2 jumper and independent PIN 4 and PIN 5 leads that connect to tools from Autel, Launch, Xhorse, VVDI and similar platforms. A 0.75 mm² sheathed DC cable with 5.5 × 2.1 mm and 5.5 × 2.5 mm plugs draws power from the vehicle battery, while a resettable 7 A fuse protects the circuit during outdoor key-cutting or bench diagnostics.

Highlights

  • Protects vehicle data during battery changes by maintaining continuous power supply
  • Activates anti-theft matching without ECU removal using the wake-up short-circuit button
  • Supports VAG 4th/5th generation, Toyota ECU sync, Mitsubishi all-key-lost and Porsche Cayenne key learning
  • Includes full-protocol OBD2 jumper for Ford smart-key programming with VVDI, Autel and similar equipment after 2016
  • Powers outdoor diagnostic tools from the 12 V battery via 0.75 mm² DC cable with 5.5×2.1 / 5.5×2.5 connectors and 7 A resettable fuse

Specifications

BrandGODIAG
ModelGT105 IMMO ECU
Size/DimensionsInch: 5.12*4.33*2.36
TypeCode Scanners & Accessories
FeaturesGODIAG ECU IMMO Prog AD GT105 is a special connection adapter developed for automobile maintenance technicians, IMMO matching technicians, ECU programming engineers, etc. Compatible with tools from AUTEL, LAUNCH, XHORSE, etc.
Used to connect ECU for ECU Reading and Writing via OBD2 way such as MPPS, FGTECH, KESSV2, BYSHUT, DISPROG and so on.

Questions about this item

What type of vehicle battery do I need to supply power to the GT105 for outdoor use?

The adapter draws power from a 12 V vehicle battery via the supplied battery clips and DC cable.

Will the GT105 keep the ECU awake on a 2016 Ford when all smart keys are lost?

Yes, the full-protocol OBD2 jumper works with VVDI, OBD-Star or Autel equipment to program 2016-on Ford smart keys.

How can I confirm the GT105 is maintaining power while I swap the battery?

The clock stays correct, the speaker remains unlocked, IMMO does not lock, and no fault codes appear.
